Overview

The MPC8308-RDB reference platform is ideal

for hardware and software development for

embedded applications, including consumer

printers, wireless access points, industrial

control and factory automation equipment.

It leverages the low-cost MPC8308

PowerQUICC® II Pro communications

processor, built on Power Architecture®

technology, which is designed to meet the

requirements of several low-end embedded

networking applications with high-speed

peripherals while striving for low power

consumption and a small-footprint package

design. The MPC8308-RDB integrates

leading-edge external components: 5 x

Gigabit Ethernet ports, 1 x USB 2.0, x1 mini

PCI Express® connector and an SD/MMC

card interface. The MPC8308 microprocessor

supports dual 10/100/1000 Mbps Ethernet

controllers, single-lane PCI Express, USB

2.0 controller, enhanced SDHC controller

for SD memory interface, dual universal

asynchronous receiver/transmitter (DUART),

serial peripherals, general-purpose I/O and

system timers. This high level of integration

in the MPC8308 processor helps to lower

overall system costs, improve performance

and simplify board design. The high-

speed peripheral mix, combined with cost

effectiveness, makes the MPC8308 processor

a unique offering in the marketplace.

The MPC8308-RDB incorporates a pre-

installed board support package (BSP)

containing a boot loader (u-boot)—a generic

Power Architecture technology system based

on the Linux® kernel. The u-boot and Linux

kernel reside in the on-board flash memory

and launch when the board is powered up.

Reference Platform Based on Power Architecture® Technology

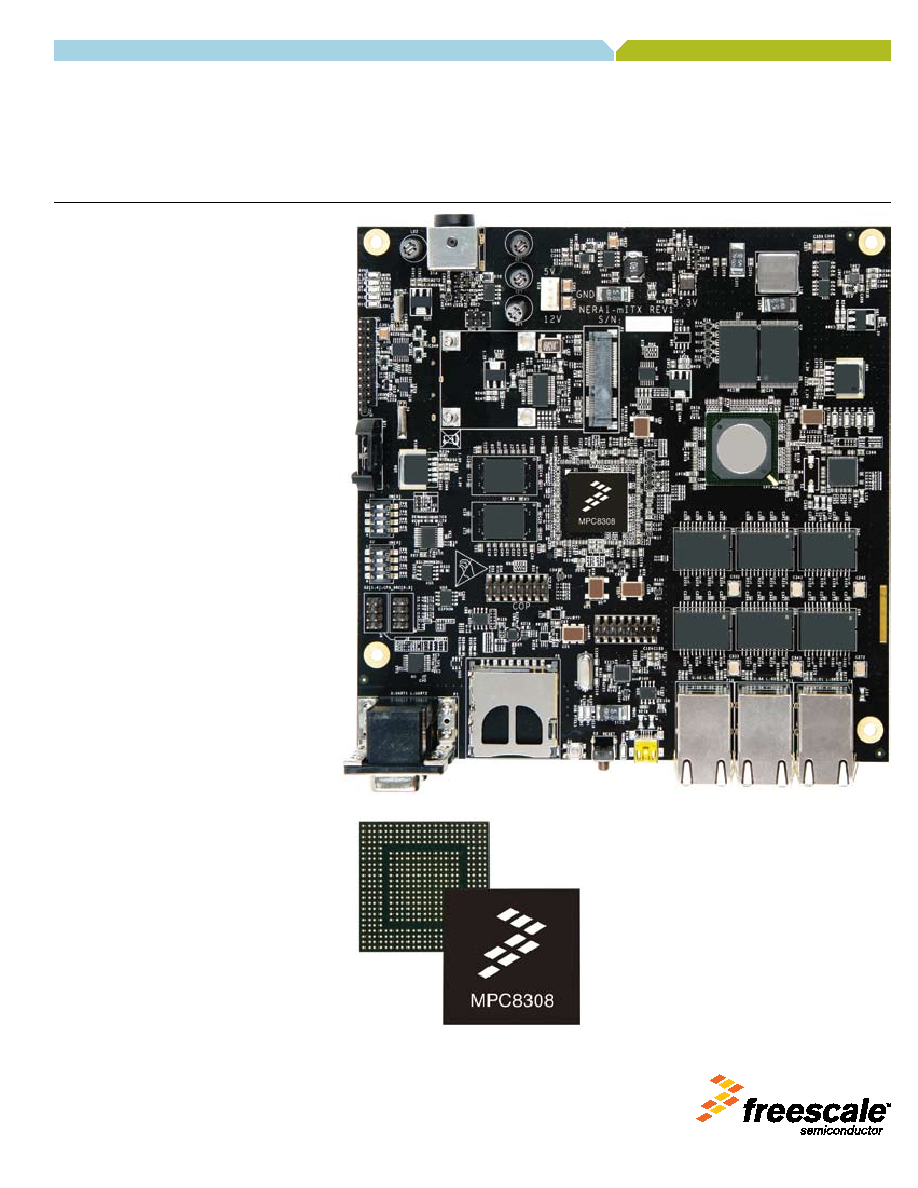

MPC8308-RDB Reference Platform
