MB-0153-2

2/15

JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.

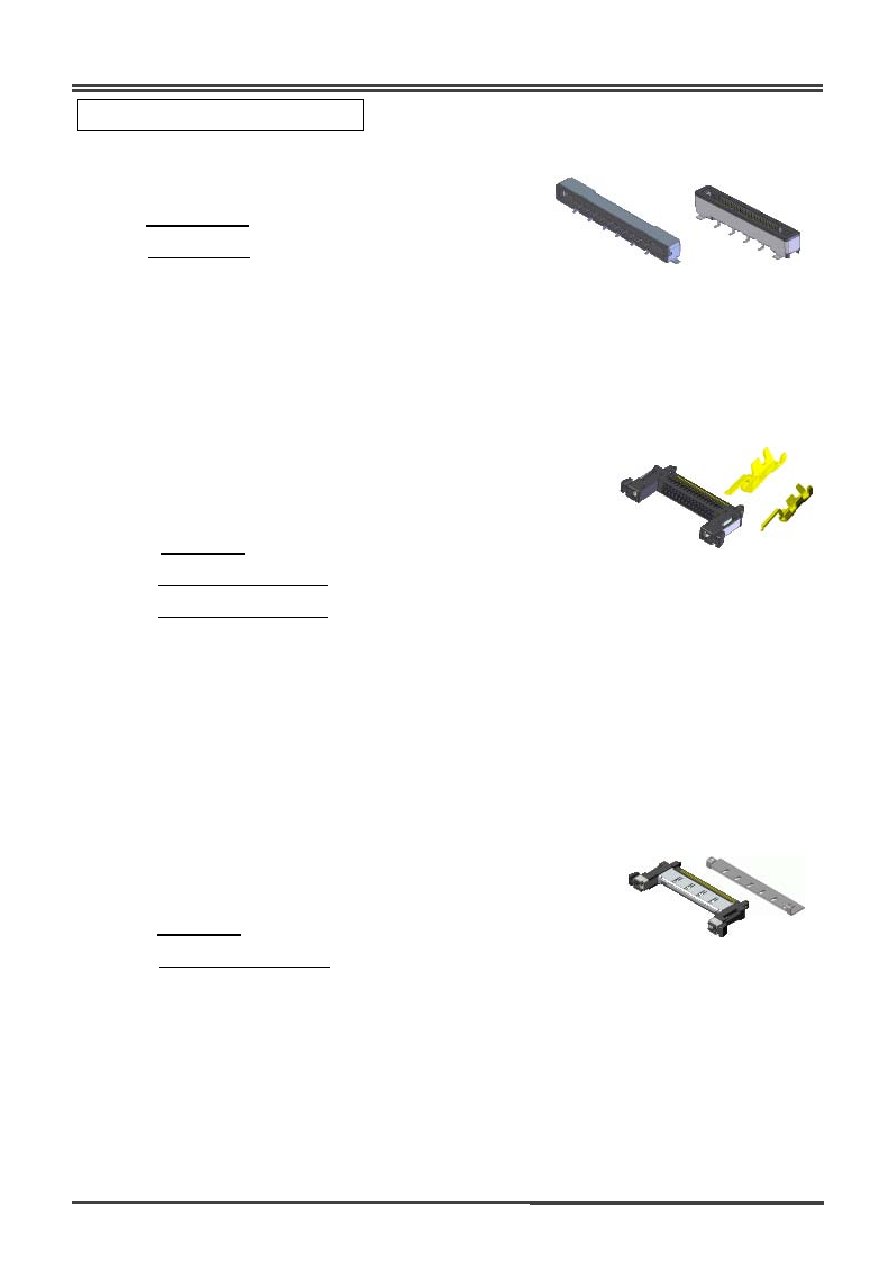

General Specification

Receptacle

A1. FI-RE**S-HF (Right-angle, shell type)

A2. FI-RE**S-VF (Straight, shell type )

Plug, Crimp Type

B1.

FI-RE**HL (Mechanical lock, shell type)

B2. FI-RC3-1A-1E-15000 (Crimp for upper contact )

B3. FI-RC3-1B-1E-15000 (Crimp for lower contact )

Plug, Solder Type

C1. FI-RE**CL (Mechanical lock, shell type)

C2. FI-RE**CL-SH2-3000 (Cover shell for solder type)

■Rated Current:

AC, DC 0.8A each / terminal

■Insulation Resistance: 100M ohm min.

■Pitch: 0.5mm

■No. of Contacts: 21, 31, 41, 51pos.

■Contact Resistance: 50m ohm max.

■Dielectric Withstanding Voltage:

AC500Vr.m.s, 1 minute

■Operating Temperature:

-40Deg. C to +80Deg. C

■Rated Current:

AC, DC 0.7A each / terminal

■Insulation Resistance: 100M ohm min.

■Pitch: 0.5mm

■Applicable Cable: 30, 32, 36 AWG

■No. of Contacts: 21, 31, 41, 51pos.

■Contact Resistance: 50m ohm max.

■ Dielectric Withstanding Voltage:

AC500Vr.m.s, 1 minute

■Operating Temperature:

-40Deg. C to +80Deg. C

■Rated Current:

AC, DC 0.7A each / terminal

■Insulation Resistance: 100M ohm min.

■Pitch: 0.5mm

■Applicable Cable:

Coaxial cable 40 AWG

■No. of Contacts: 21, 31, 41, 51pos.

■Contact Resistance: 50m ohm max.

■Dielectric Withstanding Voltage:

AC500Vr.m.s, 1 minute

■Operating Temperature:

-40Deg. C to +80Deg. C
