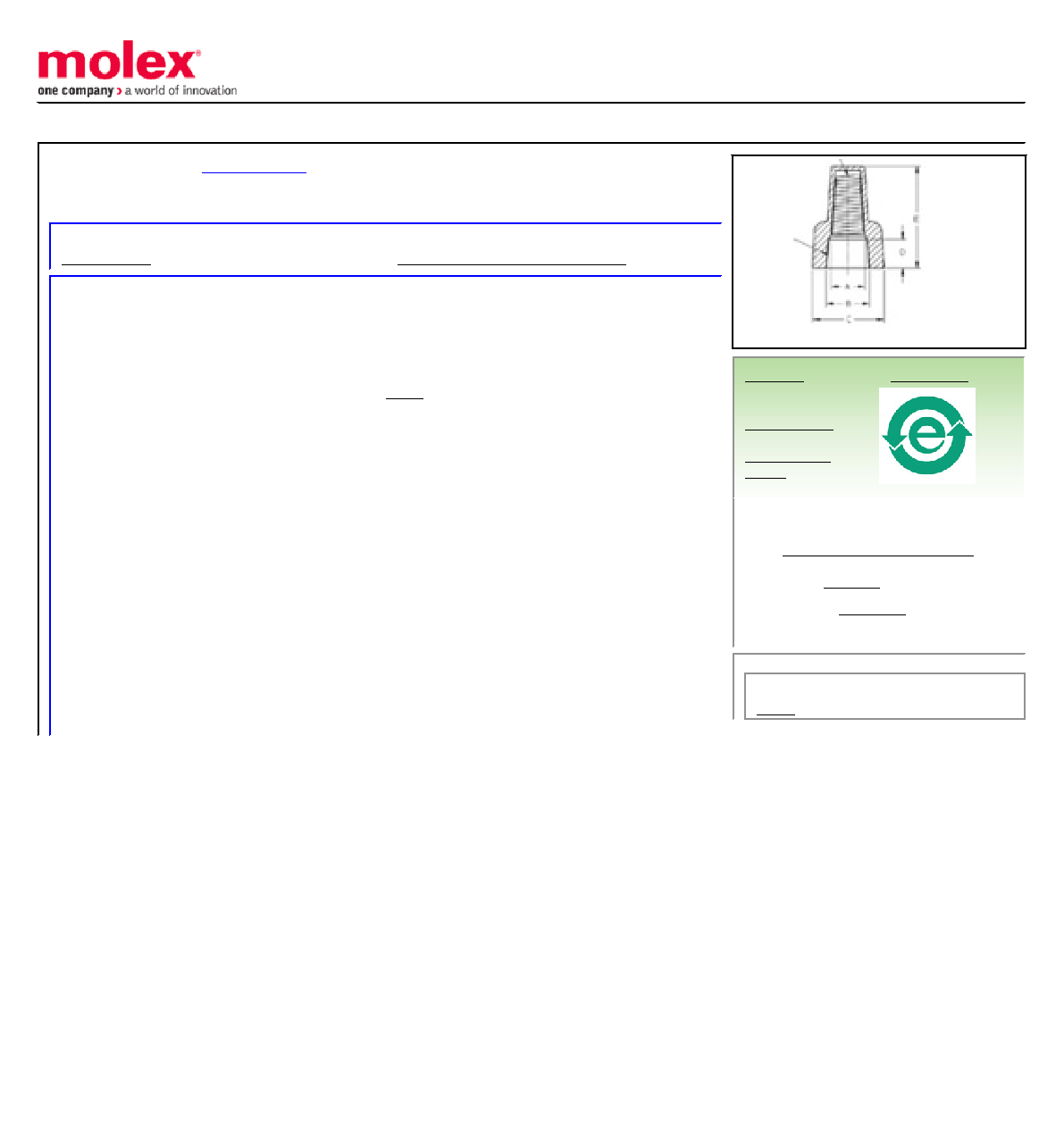

Part Number:

0191600045

Status:

Active

Description:

Wing Lock Splice for 8-18 AWG Wire

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

UL

E32244

General

Product Family

Splices

Series

19160

Crimp Quality Equipment

Yes

Mil-Spec

N/A

Product Name

Wing Lock

Physical

Barrel Type

Closed

Insulation

Nylon (PA)

Packaging Type

Bag

Temperature Range - Operating

105°C

Wire Insulation Diameter

13.5mm (.53") max

Wire Size AWG

10, 12, 14, 16, 18, 8

Wire Size mm²

0.96 - 10.5

Electrical

Voltage - Maximum

600V

Material Info

Old Part Number

WL-R

Reference - Drawing Numbers

Sales Drawing

SD-19160-003

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

19160Series
