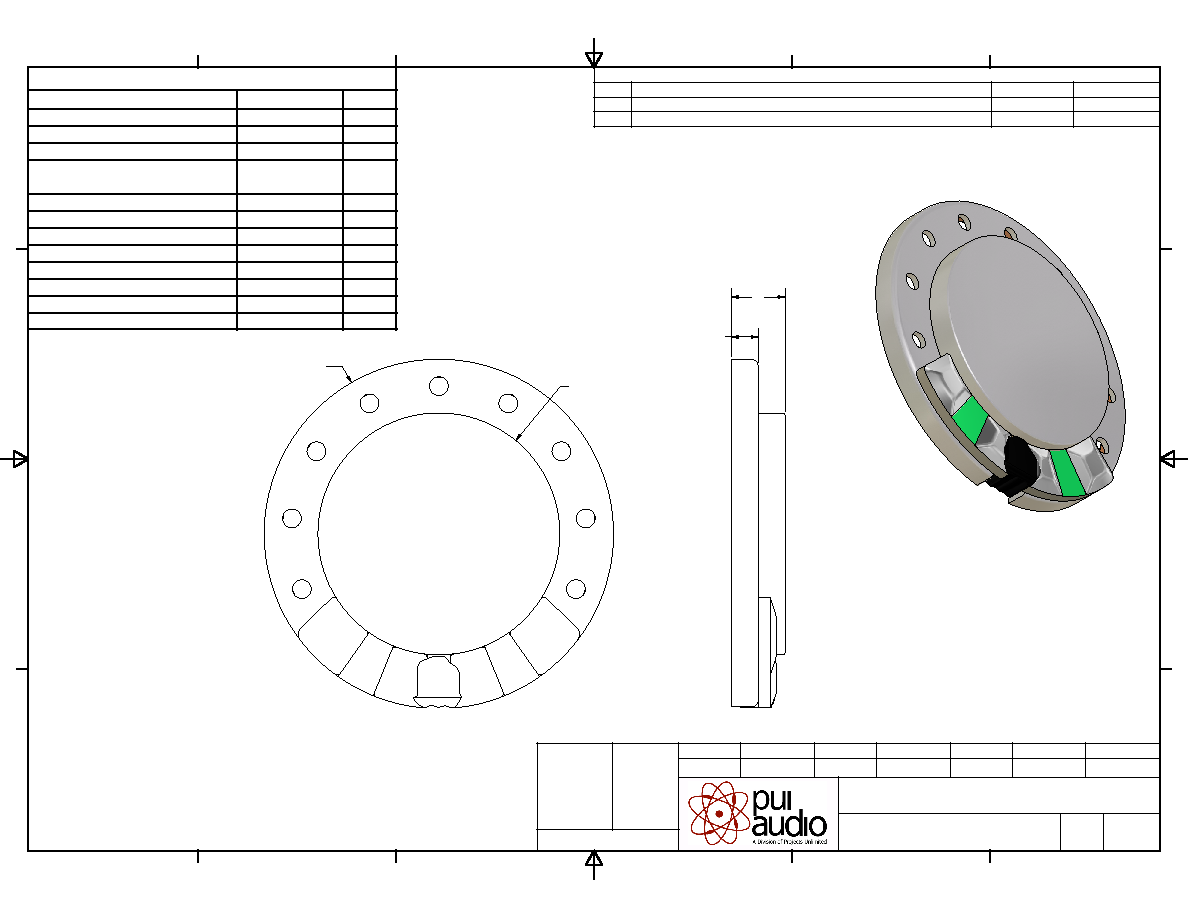

Speaker

AS01308MR-R

J.A.F.

B.R.

E.P.

10/30/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

8/4/2005

Date

8/4/2005

Date

8/4/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS01308MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

8/04/2005

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

10/30/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.2

W

MAX INPUT POWER

0.4

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.2W/0.1M

(AT 1.5, 2.0, 2.5, 3.0 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

10%

-

RESONANT FREQUENCY

1,050 ± 20%

Hz

FREQUENCY RANGE

1,050 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +55

°C

WEIGHT

0.7

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

n13

n9

1

2
