AS01808MR-R datasheet(1/1 Pages) PUI

部件名	AS01808MR-R

功能描述	Speaker

PDF	1 Pages

Scroll/Zoom	100%

制造商	PUI [Projects Unlimited, Inc.]

网页	http://www.pui.com

标志

1 / 1 page

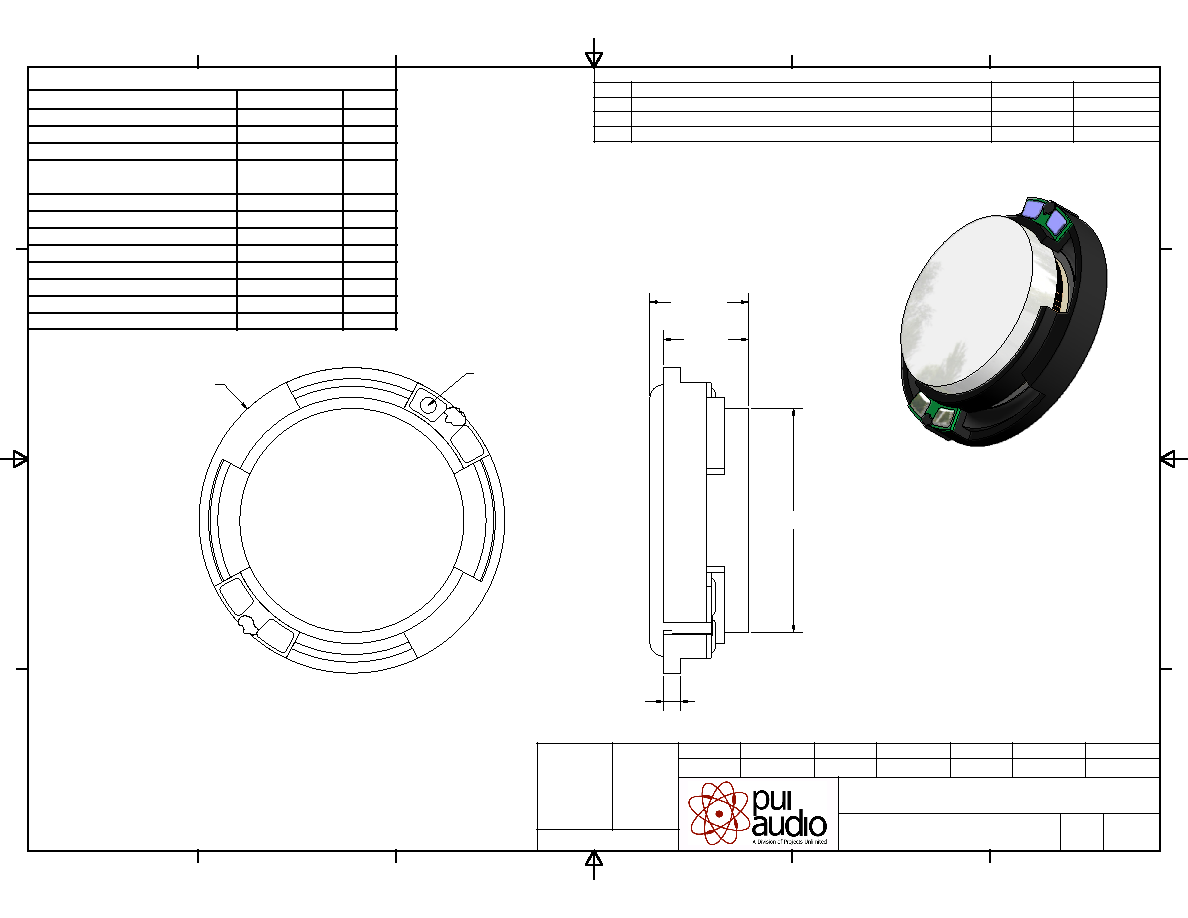

Speaker

AS01808MR-R

J.D.

X.X.

11/4/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

12/31/2007

Date

7/18/2007

Date

7/18/2007

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS01808MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

12/07/2005

AADDED RoHS NOTE

11/04/2008

J.D.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

11/04/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1

W

MAX INPUT POWER

1.5

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

80 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

450 ± 20%

Hz

FREQUENCY RANGE

250 ~ 20,000

Hz

HOUSING MATERIAL

ABS

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

RARE EARTH

-

OPERATING TEMPERATURE

-25 ~ +60

°C

WEIGHT

2.8

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

18

n`0.2

1

`0.2

5

`0.2

5.8

`0.2

13.2

n`0.2

BLUE MARK

(+) LEAD
