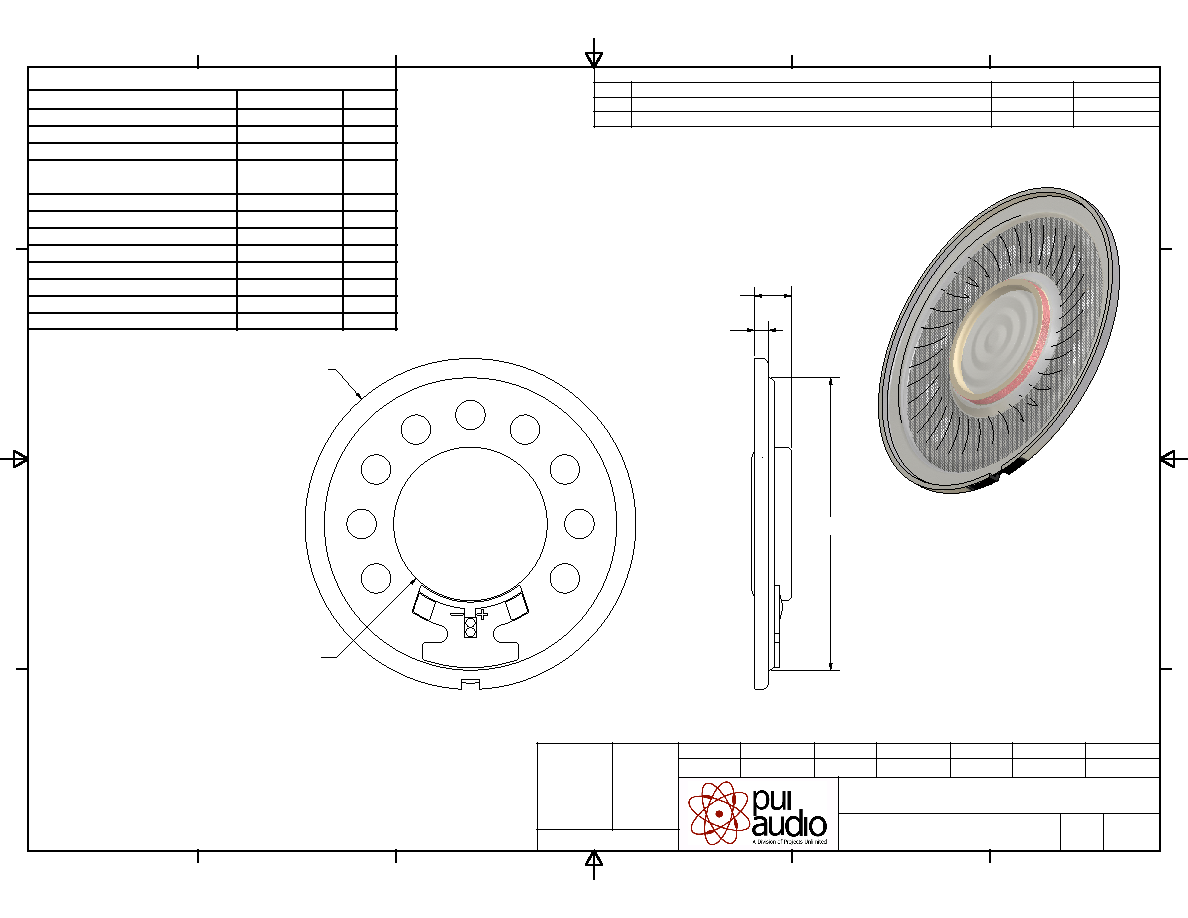

Speaker

AS03604MR-R

J.D.

D.F.

R.W.

11/26/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

4/18/2007

Date

5/1/2007

Date

5/1/2007

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS03604MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

4/18/2007

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

11/26/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1

W

MAX INPUT POWER

1.5

W

IMPEDANCE

4 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 1.0 kHz)

83 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

600 ± 20%

Hz

FREQUENCY RANGE

600 ~ 4500

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-25 ~ +100

°C

WEIGHT

5.2

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

36

n`0.2

n16.7

31.8

n

1.5

`0.2

4

`0.2
