AS06608PS-2-R datasheet(1/1 Pages) PUI

部件名	AS06608PS-2-R

功能描述	Speaker

PDF	1 Pages

Scroll/Zoom	100%

制造商	PUI [Projects Unlimited, Inc.]

网页	http://www.pui.com

标志

1 / 1 page

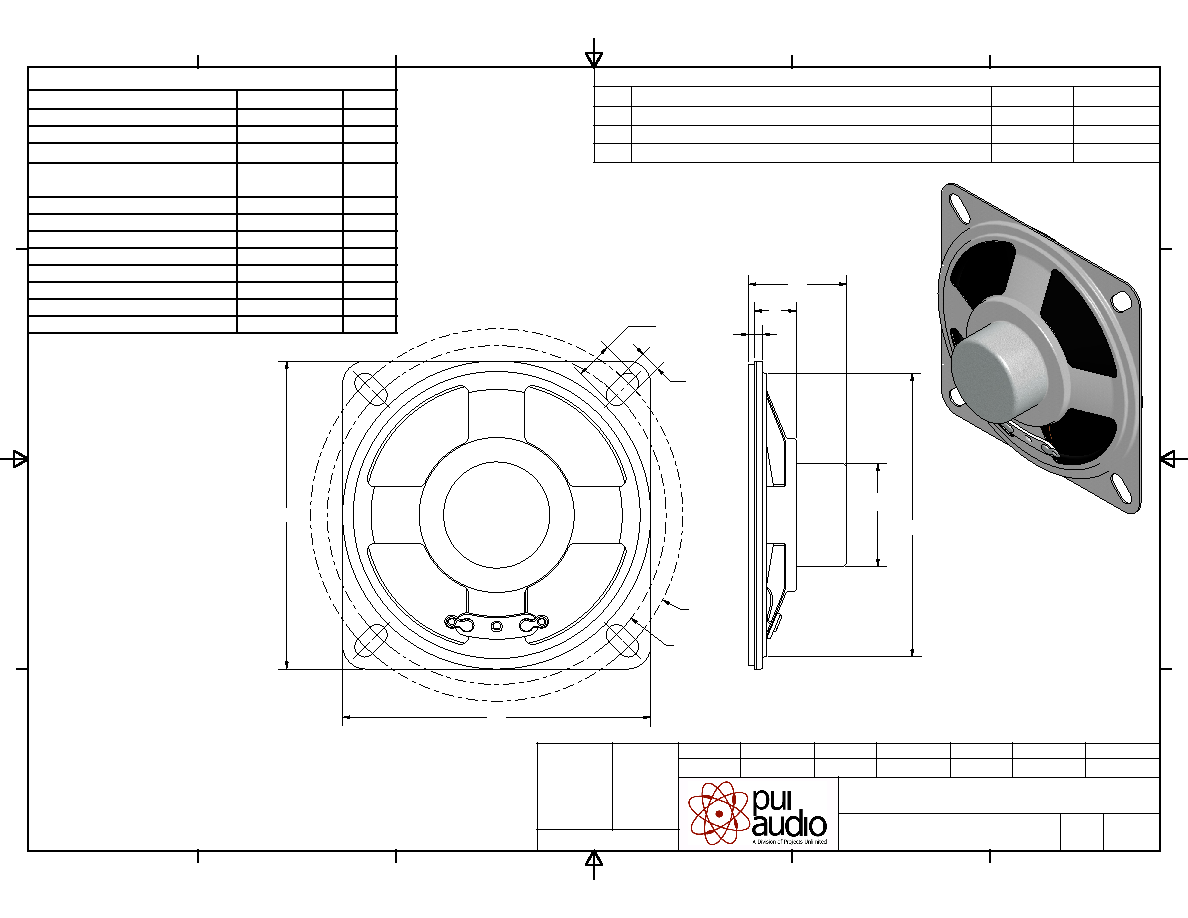

Speaker

AS06608PS-2-R

G.V.

R.W.

E.P.

6/23/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

3/30/2005

Date

3/31/2005

Date

3/31/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS06608PS-2-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

3/31/2005

A

REMOVED LEAD FREE ADDED RoHS NOTE

8/10/2005

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

6/23/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

.5

W

MAX INPUT POWER

1

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/1M

(AT 1.0, 1.2, 1.5, 2.0 kHz)

94 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

300 ± 60%

Hz

FREQUENCY RANGE

300 ~ 3,100

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

ALNICO

-

OPERATING TEMPERATURE

-20 ~ +55

°C

WEIGHT

45

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

66

n72.6

n79.8

8

4.4

9

3

21

60

Ø

n22
