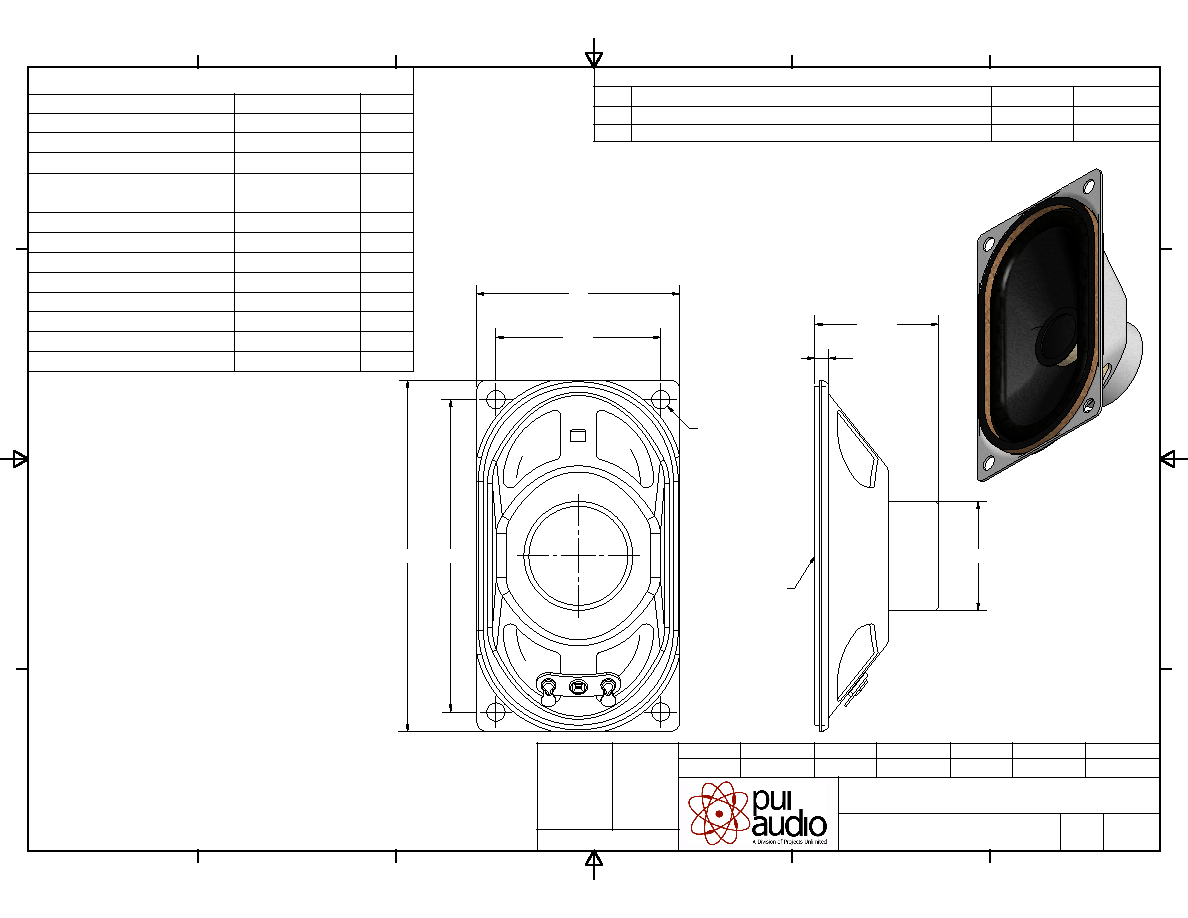

Speaker

AS07108PO-WR-R

J.A.F.

E.P.

10/5/2007

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

8/4/2005

Date

8/4/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS07108PO-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

8/3/2005

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

10/5/2007

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

3

W

MAX INPUT POWER

5

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/1M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

250 ± 70%

Hz

FREQUENCY RANGE

100 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED PAPER

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

°C

WEIGHT

38

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY

TO PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

Δ4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

71

41

33.3

63.1

3.7

n`0.3 (4)

2.8

`0.3

25

`1

22

Δ4
