SMS-1508MS-R datasheet(1/1 Pages) PUI

部件名	SMS-1508MS-R

功能描述	Speaker

PDF	1 Pages

Scroll/Zoom	100%

制造商	PUI [Projects Unlimited, Inc.]

网页	http://www.pui.com

标志

1 / 1 page

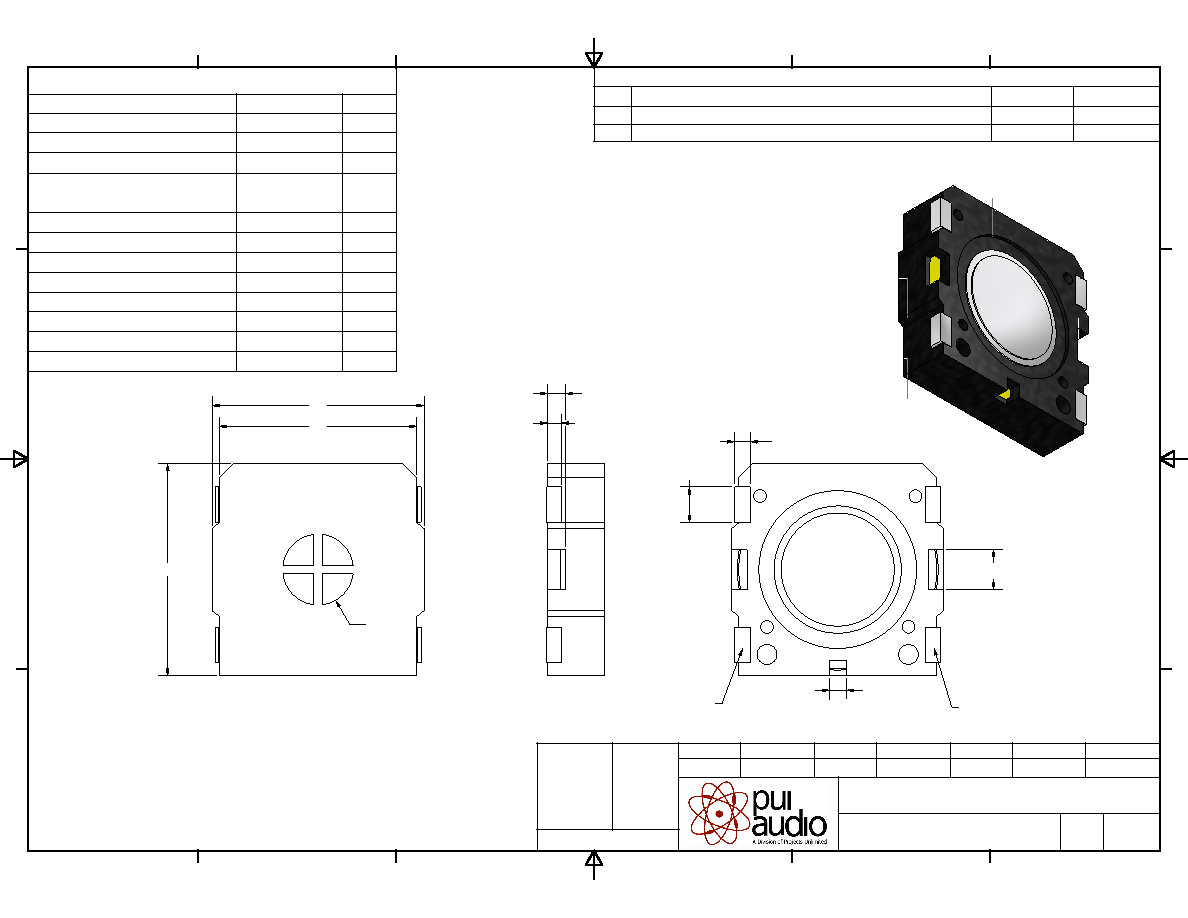

Speaker

SMS-1508MS-R

J.D.

E.P.

B.R.

9/28/2007

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/31/2006

Date

6/6/2006

Date

6/6/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

SMS-1508MS-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

6/6/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

9/28/2007

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.5

W

MAX INPUT POWER

0.8

W

IMPEDANCE

8 ± 20%

OHM

OUTPUT SPL @ 0.5W/0.1M

(AT 1.0, 1.6, 2.0, 3.2 kHz)

87 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

800 ± 15%

Hz

FREQUENCY RANGE

500 ~ 10,000

Hz

HOUSING MATERIAL

LCP

-

CONE MATERIAL

KAPTON

-

MAGNET MATERIAL

SmCo

-

OPERATING TEMPERATURE

-30 ~ +85

°C

WEIGHT

1.5

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

14

15

n5

1

1.3

2.5 (4)

1.1 (4)

2.8 (2)

1.2

LEAD (-)

LEAD (+)
