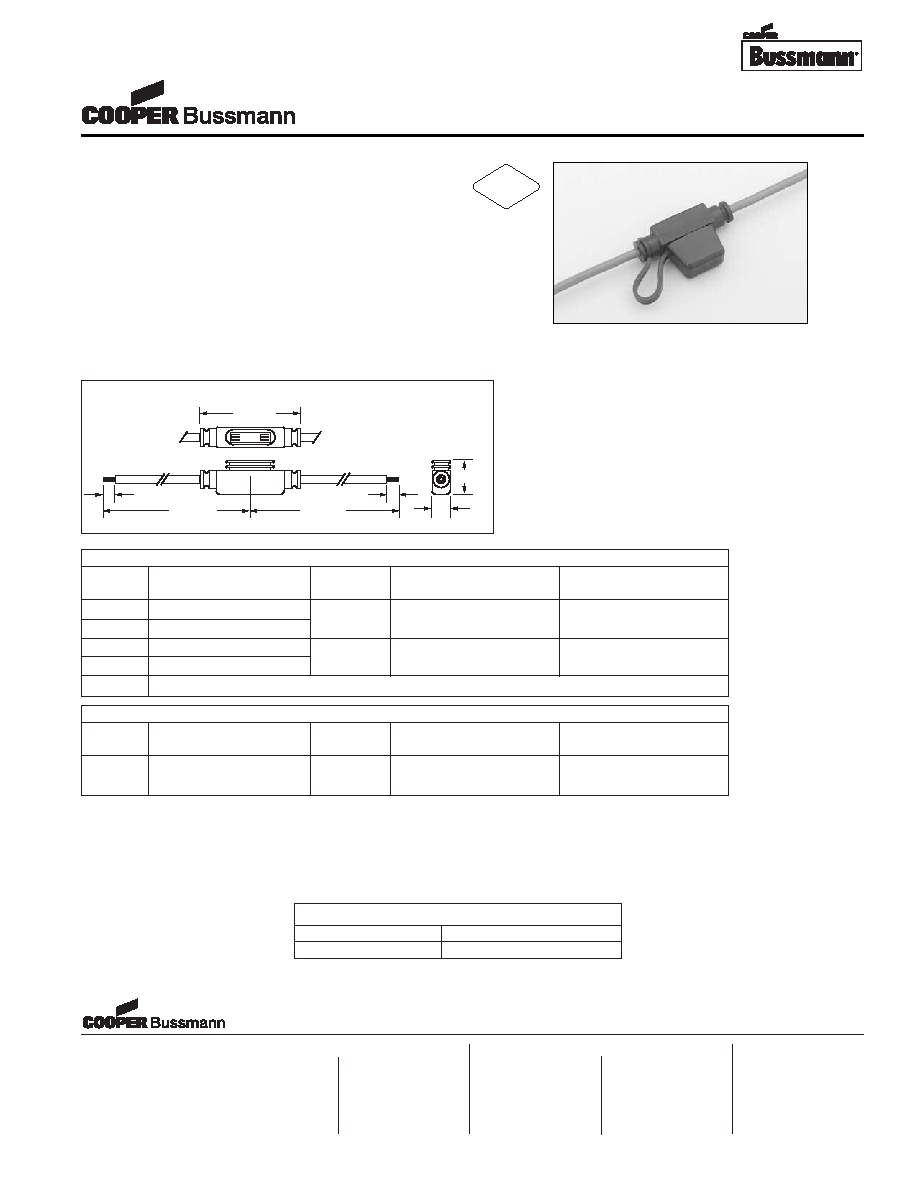

Description

• Voltage Rating: 32Vdc maximum

• Current Rating: See Table

• Body material withstands high temps. Protective cover

has removable straps.

Ordering

• Specify packaging and product code

1.56"

4.75"

4.75"

.25"

.25"

.59"

.41"

Catalog

Electrical

Maximum Continuous

No.

Description

Fuse Size

Connection

Current Rating

HHL

Black fuseholder w/cover

2-20A

#16 black lead wire;

16A*

HHL-B

Black fuseholder - Body only

4" length stripped to 1/4"

HHM

Black fuseholder w/cover

#12 red lead wire;

24A*

HHM-B

Black fuseholder - Body only

2-30A

4" length stripped to 1/4"

HHM-C

Black cover only

Bulk Products (Bulk Quantity - 1000 Pieces)

Catalog

Electrical

Maximum Continuous

No.

Description

Fuse Size

Connection

Current Rating

BK/HHL-R

Black fuseholder - Body only

2-20A

#16 red lead wire;

16A*

4" length stripped to 1/4"

PACKAGING CODE

Packaging Code

Description

BK

1,000 pieces in a box

* or 80% of fuse rating, whichever is less

A fuse must be properly and fully inserted into the holder to provide a solid connection. Poor or

improper insertion of the fuse can result in failure of the fuse and holder, thus not protecting the

device for which it was intended.

HHL & HHM
