* High surge current capability

* Low reverse current

* Component in accordance to RoHS 2002/95/EC

* Case: SMB (DO-214AA)

* Case Material: Molded Plastic. UL

Flammability Classification Rating 94V-0

* Terminals: Lead Free Plating (Tin Finish).

Solderable per MIL-STD-202, Method 208

Features:

Mechanical Data

* Polarity: Cathode Band

* Weight: 0.095 grams (approximate)

* High current capability

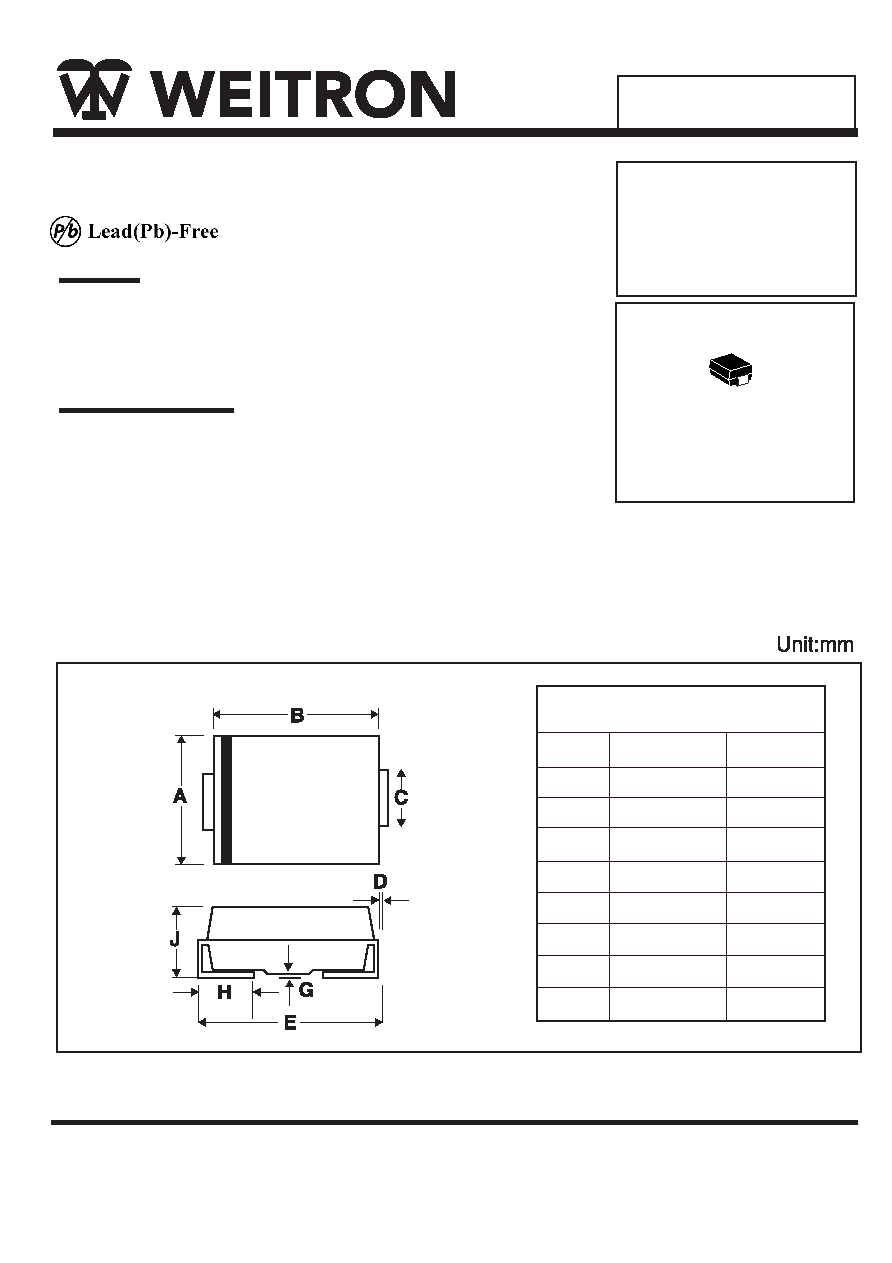

SMB Outline Dimensions

REVERSE VOLTAGE

50 TO 1000 VOLTS

FORWARD CURRENT

3.0 AMPERE

http://www.weitron.com.tw

S3AB thru S3MB

General Purpose Rectifiers

Surface Mount Device

WEITRON

SMB(DO-214AA)

SMB

3.30

3.94

4.06

4.80

1.96

2.21

0.15

0.31

5.00

5.59

0.10

0.20

0.76

1.52

2.00

2.62

Dim

Min

Max

A

B

C

D

E

G

H

J
