UNISONIC TECHNOLOGIES CO., LTD

7106

CMOS IC

www.unisonic.com.tw

1 of 18

Copyright © 2010 Unisonic Technologies Co., Ltd

QW-R502-018.D

3 ½ DIGIT, LCD DISPLAY, A/D

CONVERTERS

DESCRIPTION

The UTC 7106 is a high performance, low power,

3½ digits A/D converter. Included are seven segment decoders,

display drivers, a reference, and a clock.

The UTC 7106 is designed to interface with a liquid crystal

display (LCD) and includes a multiplexed backplane drive.

The UTC 7106 bring together a combination of high accuracy,

versatility, and true economy. It features auto zero to less than

10μV, zero drift of less than 1μV/°C, input bias current of 10pA

(Max), and rollover error of less than one count. True differential

inputs and reference are useful in all system, but give the designer

an uncommon advantage when measuring load cells, strain

gauges and other bridge type transducers. Finally, the true

economy of single power supply operation, enables a high

performance panel meter to be built with the addition of only 10

passive components and a display.

FEATURES

*Guaranteed Zero Reading for 0V Input On All Scales

*True Polarity At Zero for Precise Null Detection

*1pA Typical Input Current

*True Differential Input And Reference, Direct Drive

LCD Display

*Low Noise-Less than 15μVp-p

*On chip Clock and Reference

*Low Power Dissipation-Typically Less than 10mW

*No Additional Active Circuits Required

*Enhanced Display Stability

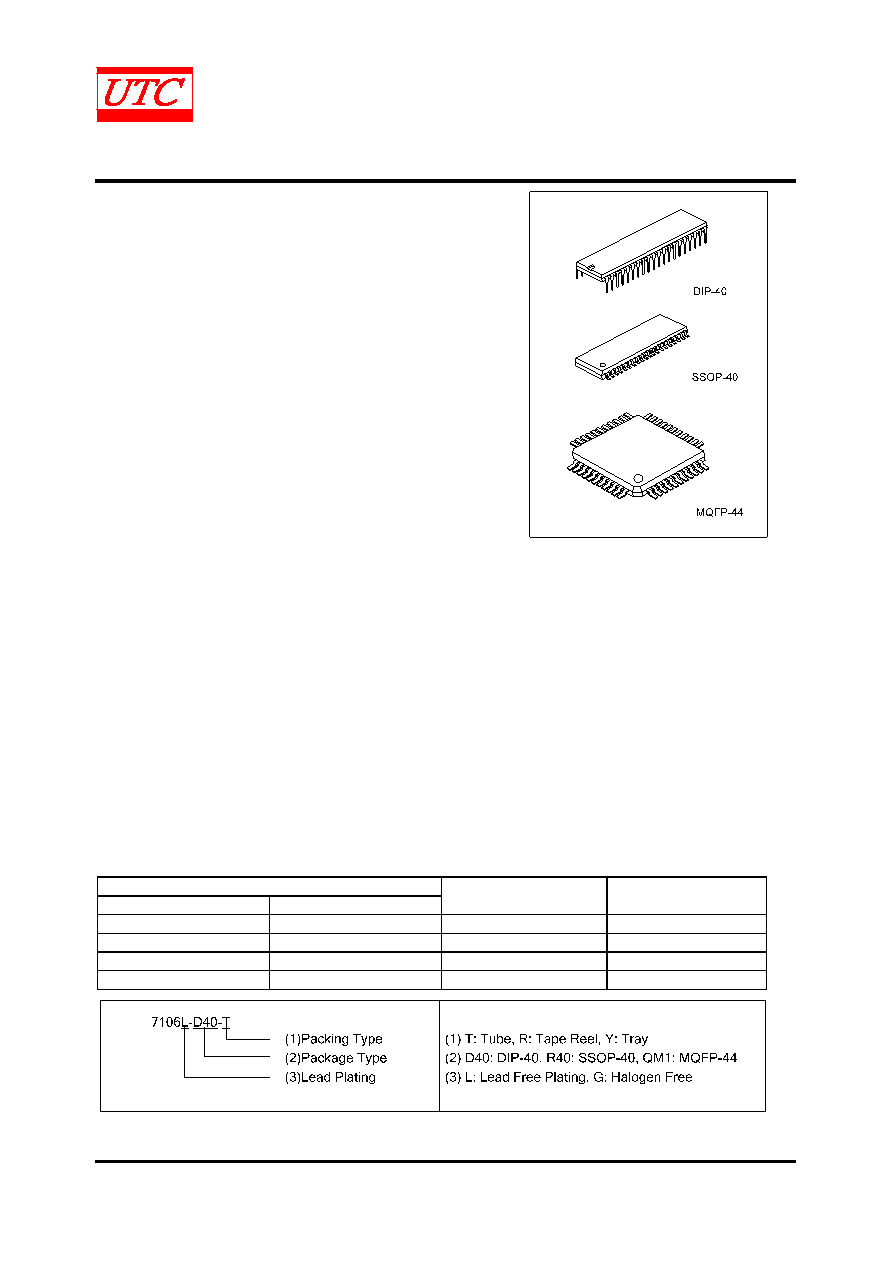

ORDERING INFORMATION

Ordering Number

Lead Free Plating

Halogen Free

Package

Packing

7106L-D40-T

7106G-D40-T

DIP-40

Tube

7106L-R40-R

7106G-R40-R

SSOP-40

Tape Reel

7106L-R40-T

7106G-R40-T

SSOP-40

Tube

7106L-QM1-Y

7106G-QM1-Y

MQFP-44

Tray
