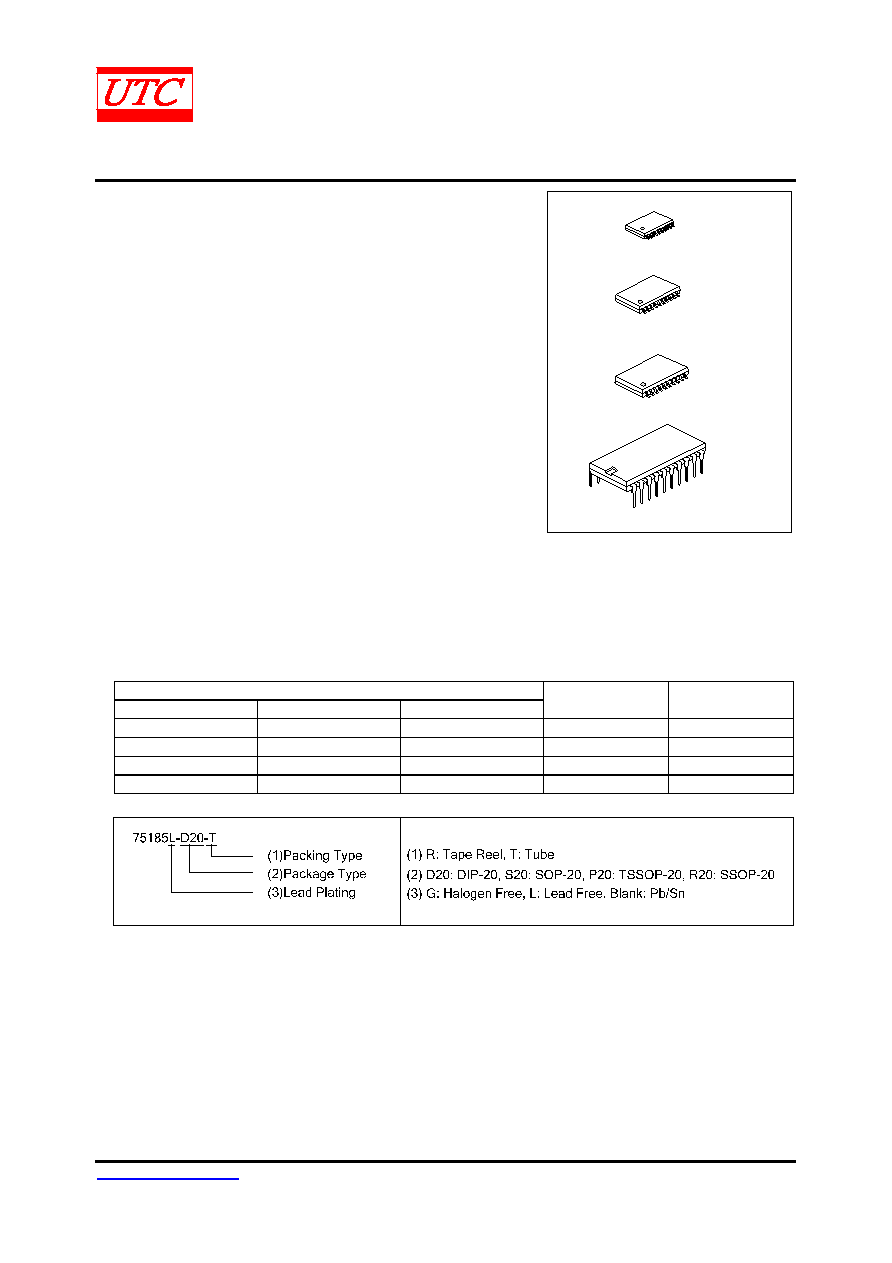

UNISONIC TECHNOLOGIES CO., LTD

75185

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 10

Copyright © 2010 Unisonic Technologies Co., Ltd

QW-R113-003,F

MULTIPLE RS-232 DRIVERS

AND RECEIVERS

DESCRIPTION

The UTC 75185 complies with the requirements of the

TIA/EIA232-F and ITU (formerly CCITT) v.28 standards. These

standards are for data interchange between a host computer and

peripheral at signaling rates up to 20kbit/s. The switching speeds of

the UTC 75185 are fast enough to support rates up to 120kbite/s

with lower capacitive loads (shorter cables). Interoperability at the

higher signaling rates cannot be assured unless the designer has

design control of the cable and the interface circuits at both ends.

For interoperability at signaling rates to 120kbit/s, use of

ITA/EIA-423-B (ITU v.10) and TIA/EIA-422-B (ITU v.11) standards

are recommended.

SOP-20

DIP-20

TSSOP-20

SSOP-20

FEATURES

*Single Chip with Easy Interface between UART and Serial-Port connector of PC.

*Three Drivers and five Receivers Meet or Exceed the Requirements of TIA/EIA-232-F and ITU v.28 Standards.

*Designed to Support Data Rates up to 120 kbps

ORDERING INFORMATION

Ordering Number

Normal

Lead Free Plating

Halogen Free

Package

Packing

75185-D20-T

75185L-D20-T

75185G-D20-T

DIP-20

Tube

75185-P20-R

75185L-P20-R

75185G-P20-R

TSSOP-20

Tape Reel

75185-R20-R

75185L-R20-R

75185G-R20-R

SSOP-20

Tape Reel

75185-S20-R

75185L-S20-R

75185G-S20-R

SOP-20

Tape Reel
