Data Sheet: F-KuBAND-Tx/Rx

Data Sheet:

F-KuBAND-Tx/Rx

The F-KUBAND series wide band laser

transceivers are designed for enabling a

high linearity optical link for RF over fiber in

the K-BAND up to 20 GHz. The unit can

also be used as a repeater for extending the transmission distance of a 30 Gb/s link. The F-KUBAND

incorporates a broadband optical transmitter and linear receiver into a compact rack mounted unit.

The F-KUBAND can be used for carrying almost any type of RF modulated signals such as RF over

Fiber (RFoG), satellite/IF link, WiMax optical link, microwave over fiber, and mobile signals in fiber.

The unit uses a lithium-niobate external modulator to convert input microwave/RF signals to optical

waveforms from a frequency range of 100 kHz up to 20 GHz. The unit functions as a transperent link,

transporting all satellite modulation formats over a single fiber. The F-KUBAND maintains excellent

gain flatness over a wide frequency range due to a very narrow line width DFB laser. Transmission

distances of up to 75 miles are possible using singlemode optical fiber. The F-KUBAND link is a cost

effective and high performance solution for KU-Band Satellite links.

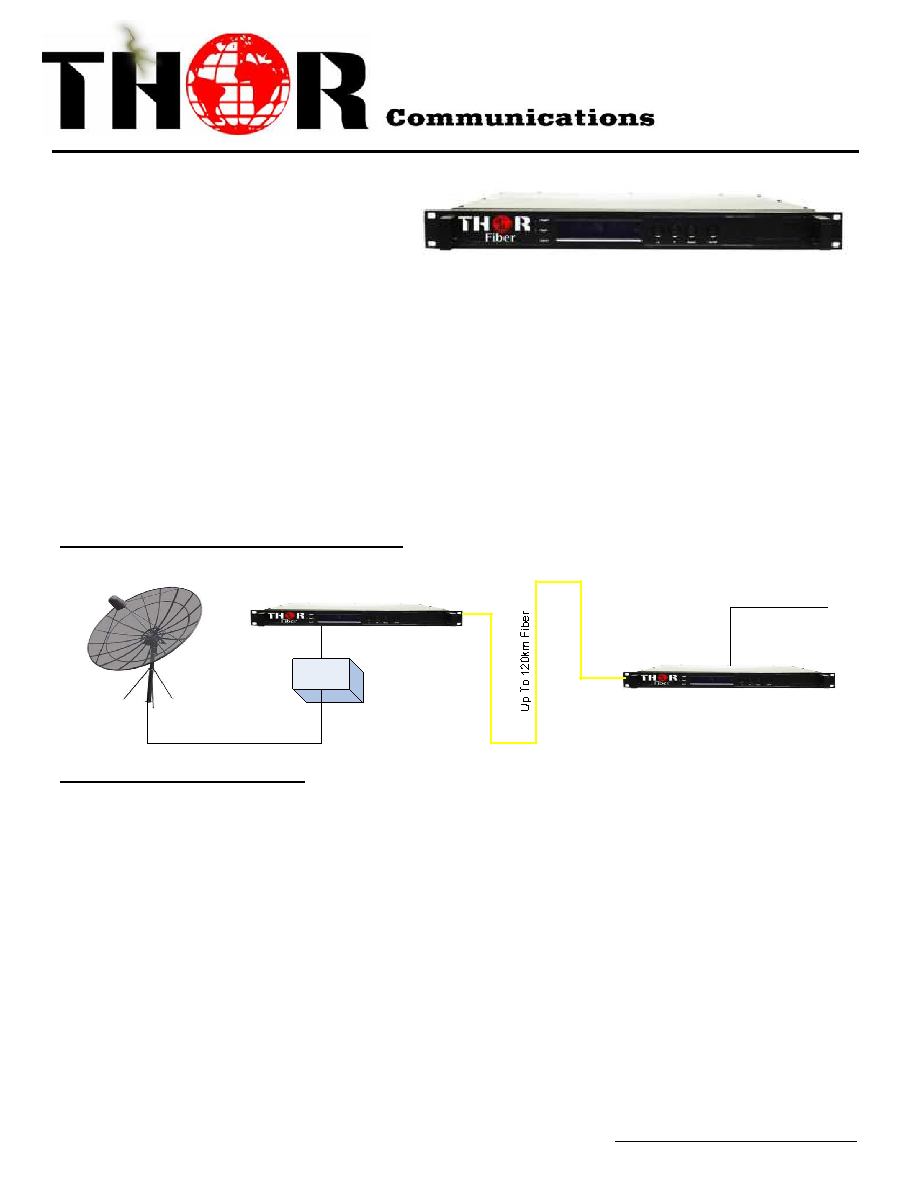

Typical L-BAND-Rx/Tx Application

Technical Specifications

Optical Wavelength

1310 – 1550 nm FP/DFB

Optical Output Power

6.0 dbm

Optical Budget loss

24 – 32 dB

Optical Return Loss

40 dB

RF Frequency Range

100 kHz – 20.0 GHz

RF Input Level

12 dBm Max

RF Gain

10 – 25 dB

RF Gain Flatness

4.0 +/- 2.0

Input Impedance

50 Ohm

RF Return Loss

10 dB

<10 GHz

8 dB

13~15 GHz

6 dB

18~20 GHz

RF Noise

15 dB Max

VSWR Input / Output

2.0 : 1

CNR

40 dB

IMD

40 dB

Communications Interface

RS232

SNMP Interface

RJ45

Power Consumption

8 W

Power Supply

12V DC

RF Connector

SMA Female

Optical Connector

FC/APC or by request

Dimensions (H x W x D)

19in x 11.0in x 1.75in

Weight

0.75 Kg

Operating Temp. ( )

-10 to +65 ( )

Storage Temp. ( )

-40 to +85 ( )

Relative Humidity (%)

0 to 95 %

LNA

F-KuBAND-Tx

F-KuBAND-Rx

RF Output

100kHz -

20GHz
