Data Sheet: F-LBAND-Tx/Rx

Data Sheet:

F-LBAND-Tx/Rx

The L-Band Transmitter/Receiver pair are used for

transporting L-Band RF signals from the antenna to

the satellite receiver. L-band RF signals have a

very limited range over coaxial cable, typically no

more than a few hundred feet. By transporting the

L-Band RF signal over optical fiber this range can

be extended to over 75 miles. Fiber optic cables

are much smaller and easier to work with than

traditional copper coax. Additionally our units

provides optional 13/18V LNB power as well as

Automatic Gain Control (AGC) to manage RF input

Fiber optic transport of satellite signals is useful in many applications, such as transportation of signals

from a remote satellite farm to a broadcaster's headend, uplink and downlink applications, and DBS

services. We Offer CWDM multiplexing solutions for transportation of up to 8 distinct L-Band signals

over a single fiber, as well as multicasting solutions over several different fibers via optical coupling.

Custom solutions are availible, contact us today for help with your specific L-Band needs.

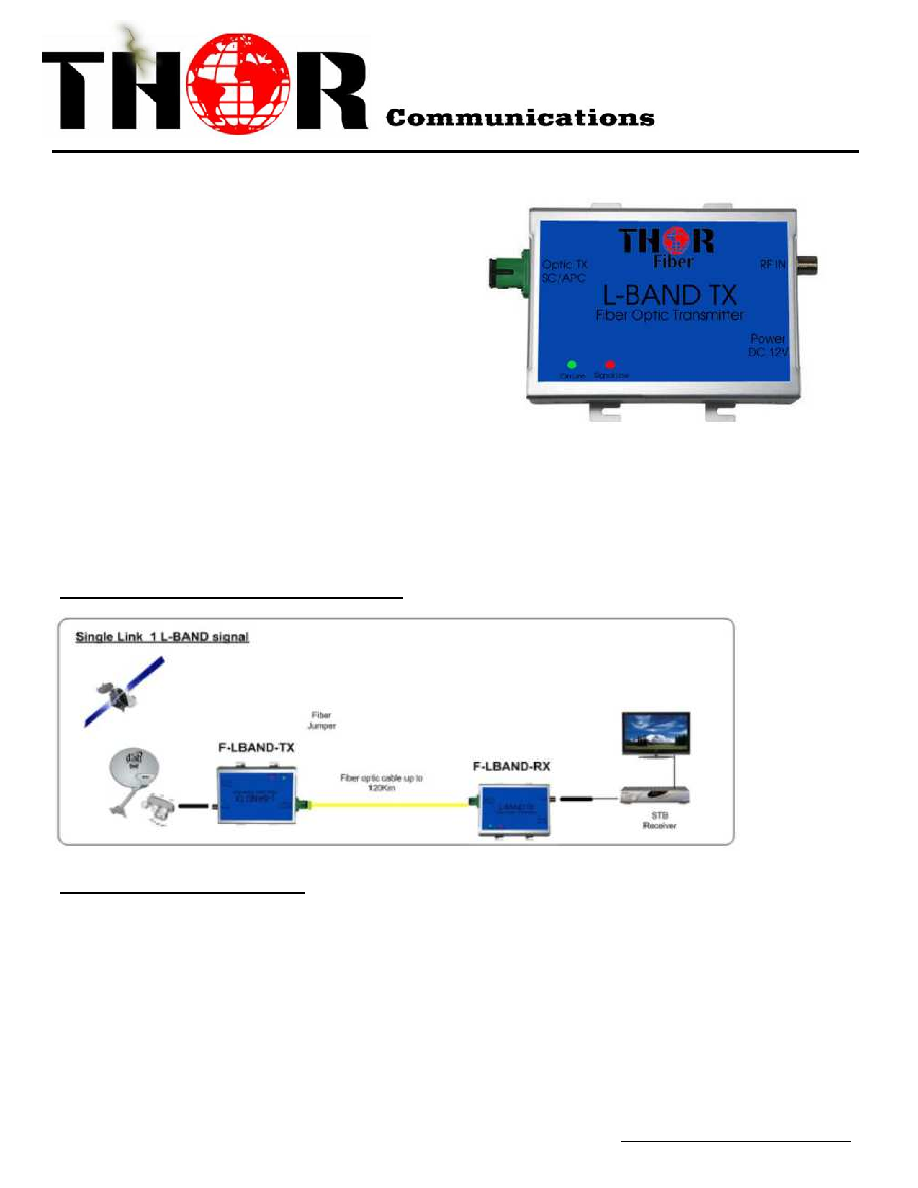

Typical L-BAND-Rx/Tx Application

Technical Specifications

Optical Wavelength

1310-1550 nm FP/DFB

Output Power Range

0dbm – 4dbm

RF Frequency Range

950 – 2600 MHz

RF Input Level

55 – 78dB V

LNB Power

13 or 18 VDC 350 mA

RF Return Loss

13 dB

Input Impedance

75 Ohm

CNR

40 dB

IMD

40 dB

Power Consumption

3.5 W

Power Supply

18V DC

RF Connector

F Female

Optical Connector

SC/APC or by request

Dimensions (H x W x D)

118mmx210mmx40mm

Weight

0.25 Kg
