2SA733-R datasheet(1/2 Pages) MCC

部件名	2SA733-R

功能描述	PNP Silicon Plastic-Encapsulate Transistor

PDF	2 Pages

Scroll/Zoom	100%

制造商	MCC [Micro Commercial Components]

网页	http://www.mccsemi.com

标志

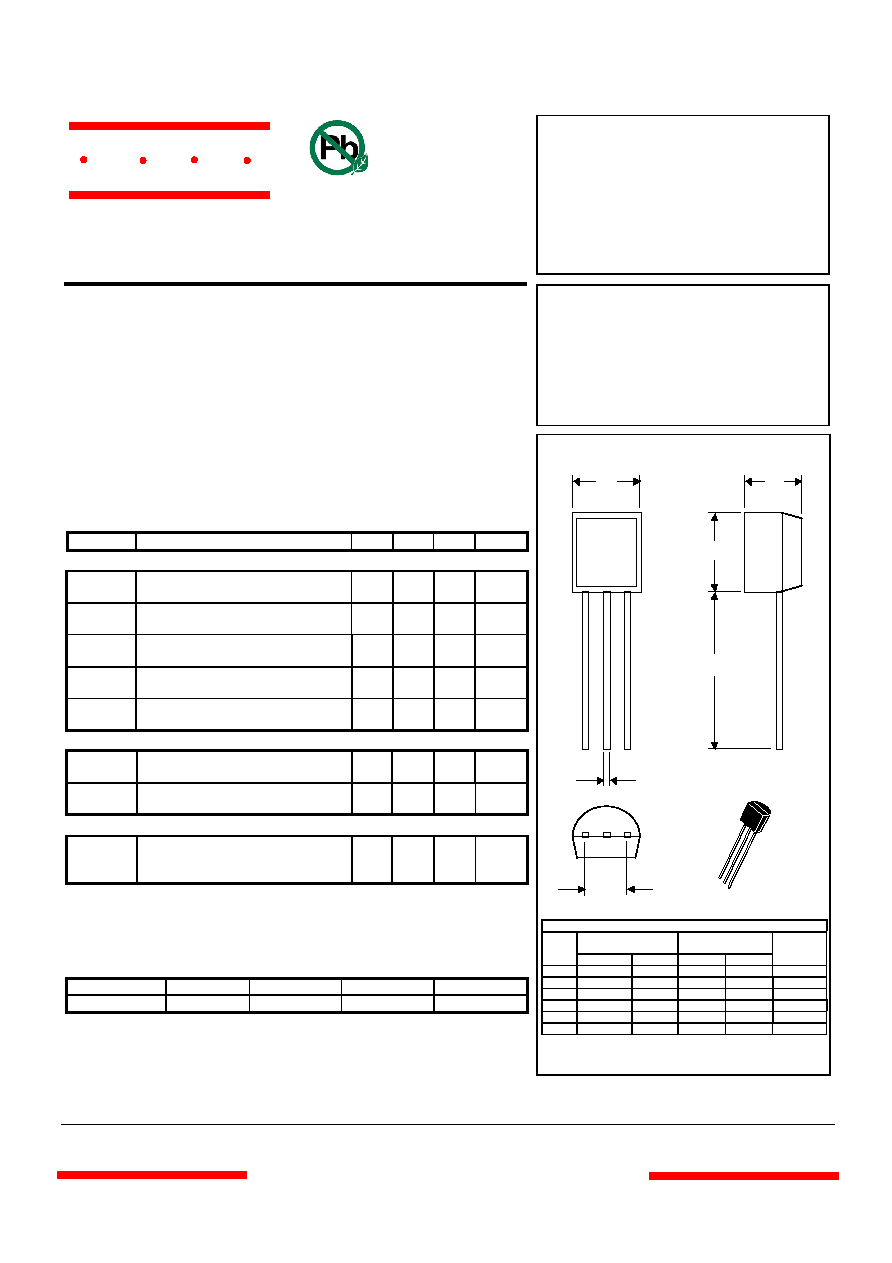

1 / 2 page

PNP Silicon

Plastic-Encapsulate

Transistor

Features

•

Capable of 0.25Watts of Power Dissipation.

•

Collector-current 0.1A

•

Collector-base Voltage 60V

•

Operating and storage junction temperature range: -55

OC to +150OC

Electrical Characteristics @ 25OC Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Units

OFF CHARACTERISTICS

V (BR)CEO

Collector-Emitter Breakdown Voltage

(I C=1.0mAdc, IB=0)

50

---

Vdc

V (BR)CBO

Collector-Base Breakdown Voltage

(I C=5.0uAdc, IE=0)

60

---

Vdc

V (BR)EBO

Emitter-Base Breakdown Voltage

(I E=50uAdc, IC=0)

5.0

---

Vdc

ICBO

Collector Cutoff Current

(V CB=60Vdc, IE=0)

---

0.1

uAdc

IEBO

Emitter Cutoff Current

(V EB=5.0Vdc, IC=0)

---

0.1

uAdc

ON CHARACTERISTICS

h FE

DC Current Gain

(IC=1.0mAdc, VCE=6.0Vdc)

90

200

600

---

V CE(sat)

Collector-Emitter Saturation Voltage

(I C=100mAdc, IB=10mAdc)

---

0.18

0.3

Vdc

SMALL-SIGNAL CHARACTERISTICS

fT

Transistor Frequency

(I C=10mAdc, VCE=6.0Vdc

f=30MHz)

100

180

---

MHz

CLASSIFICATION OF HFE (1)

Rank

R

Q

P

K

Range

90-180

135-270

200-400

300-600

TO-92

A

E

B

C

D

G

Revision: A

2011/01/01

omponents

20736 Marilla Street Chatsworth

!"#

$% !"#

M C C

DIMENSIONS

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.170

.190

4.33

4.83

B

.170

.190

4.30

4.83

C

.550

.590

13.97

14.97

D

.010

.020

0.36

0.56

E

.130

.160

3.30

3.96

G

.010

.104

2.44

2.64

TM

Micro Commercial Components

www.mccsemi.com

1 of 2

2SA733-R

2SA733-P

2SA733-K

2SA733-Q

•

Lead Free Finish/Rohs Compliant ("P"Suffix designates

Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

E

B

C
