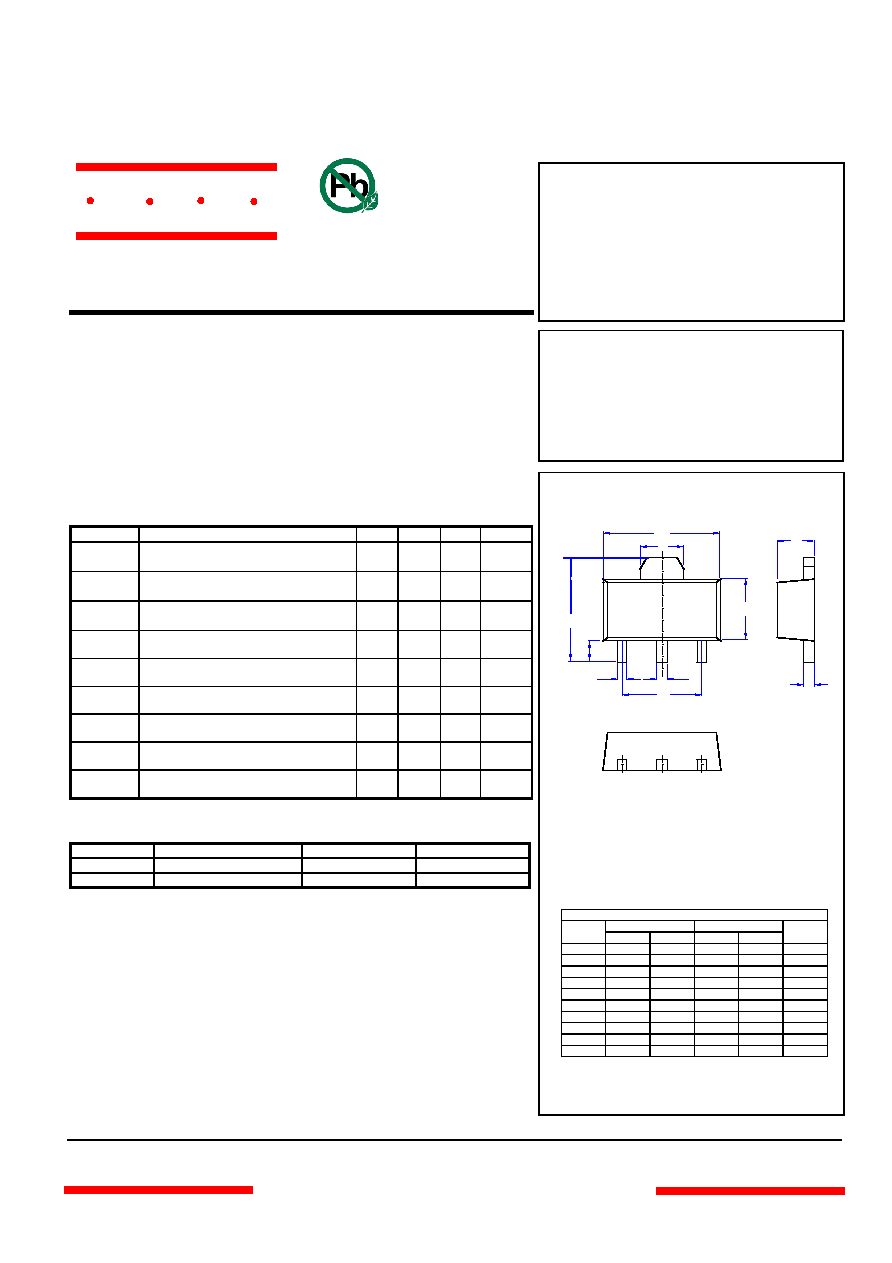

2SB1132-P

PNP

Plastic-Encapsulate

Transistors

Features

•

Power dissipation: PCM = 0.5W(Tamb=25 )

•

Collector current: ICM = -1A

•

Collector-base voltage: V(BR)CBO = -40V

•

Operating and storage junction temperature range

TJ, Tstg: -55

to + 150

Electrical Characteristics @ 25

Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Unit

VCEO

Collector-Emitter Voltage

(IC=-50

A, IE=0)

-32

---

V

VCBO

Collector-Base Voltage

(IC=-1

A, IB=0)

-40

---

V

VEBO

Emitter-Base Voltage

(IE=-50

A, IC=0)

-5.0

---

V

ICBO

Collector cut-off Current

(VCB=-20V, IE=0)

---

-0.5

A

IEBO

Emitter cut-off Current

(VEB=-5V, IC=0)

---

-0.5

A

hFE

DC current gain

(VCE=-2V, IC=-0.1A)

82

---

390

---

VCE(sat)

Collector-Emitter Saturation Voltage

(IC=-2A, IB=-0.1A)

---

-0.5

V

fT

Transition Frequency

(VCE=2.0Vdc, IC=0.5Adc)

---

150

---

MHz

Cob

Collector output capacitance

(VCB=-10V, IE=0, f=1MHz)

---

20

30

CLASSIFICATION OF hFE

Rank

P

Q

R

Range

82-180

120-270

180-390

Marking

BAP

BAQ

BAR

25

SOT-89

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

Revision: A

2011/01/01

1.BASE

2.COLLECTOR

3.EMITTER

TM

Micro Commercial Components

www.mccsemi.com

1 of 2

B

A

E

D

G

H

F

K

J

C

1

2

3

2SB1132-Q

2SB1132-R

•

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1
