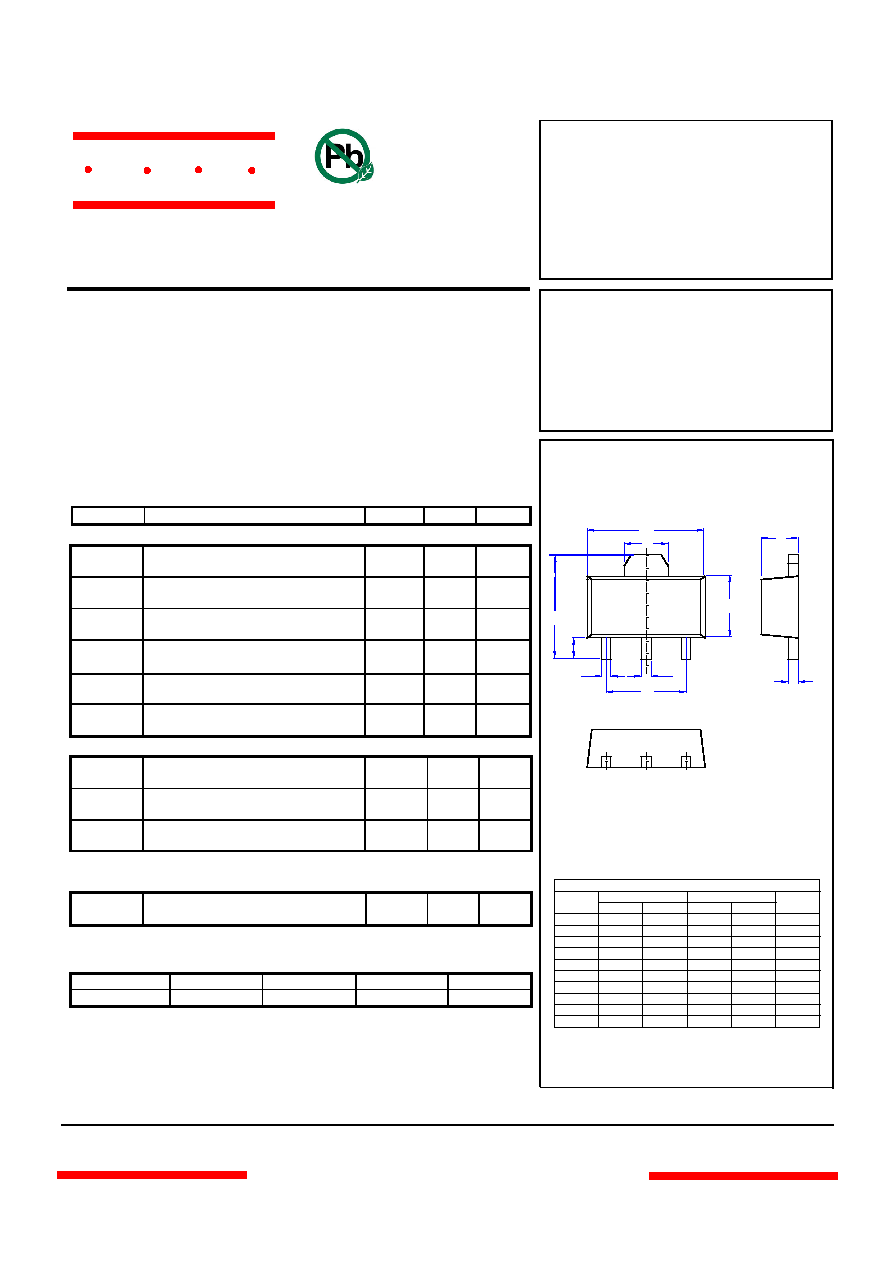

1 / 3 page

PNP Silicon

Plastic-Encapsulate

Transistor

Features

•

Capable of

0.5Watts of Power Dissipation.

•

Collector-current 3.0A

•

Collector-base Voltage 40V

•

Operating and storage junction temperature range: -55

OC to +150OC

Electrical Characteristics @ 25

OC Unless Otherwise Specified

Symbol

Parameter

Min

Max

Units

OFF CHARACTERISTICS

V (BR)CEO

Collector-Emitter Breakdown Voltage

(IC=

-10mAdc, IB=0)

-30

---

Vdc

V (BR)CBO

Collector-Base Breakdown Voltage

(IC=-100uAdc, IE=0)

-40

---

Vdc

V (BR)EBO

Emitter-Base Breakdown Voltage

(IE=-100uAdc, IC=0)

-5.0

---

Vdc

I CBO

Collector Cutoff Current

(VCB=-40Vdc, IE=0)

---

-1.0

uAdc

ICEO

Collector Cutoff Current

(VCE=-30Vdc, IB=0)

---

-10

uAdc

IEBO

Emitter Cutoff Current

(VEB=-6.0Vdc, IC=0)

---

-1.0

uAdc

ON CHARACTERISTICS

h FE(1)

DC Current Gain

(IC=

-1.0Adc, VCE=-2.0Vdc)

60

400

---

V CE(sat)

Collector-Emitter Saturation Voltage

(IC=-2.0Adc, IB=-0.2Adc)

---

-0.5

Vdc

V BE(sat)

Base-Emitter Saturation Voltage

(IC=-2.0Adc, IB=-0.2Adc)

---

-1.5

Vdc

SMALL-SIGNAL CHARACTERISTICS

f T

Transistor Frequency

(I C=-0.1Adc, VCE=-5.0Vdc, f=10MHz)

80

---

MHz

CLASSIFICATION OF HFE (1)

Rank

R

O

Y

GR

Range

60-120

100-200

160-320

200-400

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

Revision:

A

20

11/01/01

TM

Micro Commercial Components

www.mccsemi.com

1 of

3

B

D772-R

B

D772-O

B

D772-Y

B

D772-GR

SOT-89

1. BASE

2. COLLETOR

3. EMITTER

B

A

E

D

G

H

F

K

J

C

12

3

25

1.55

.061

REF.

•

Marking: B772

•

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1
