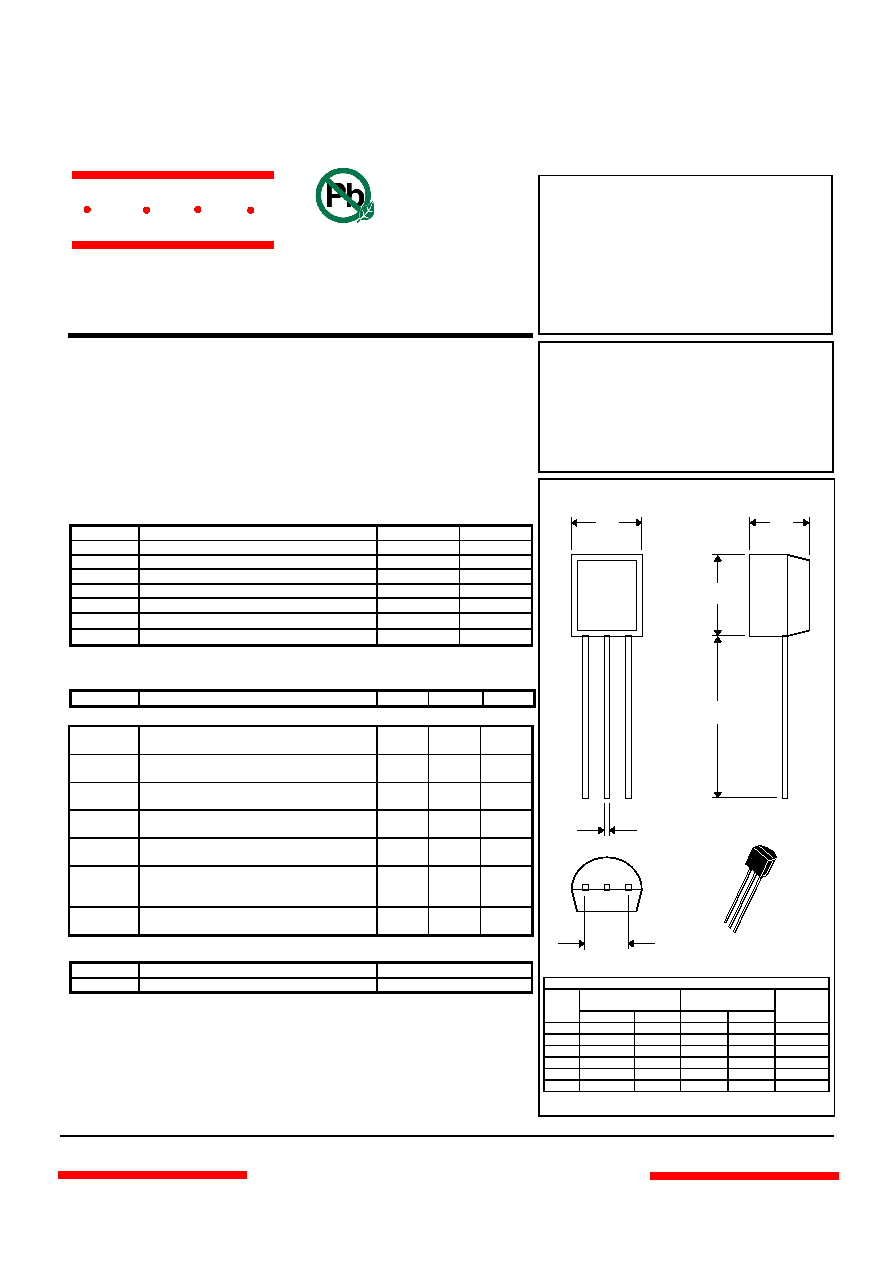

1 / 2 page

D965-T

NPN

Plastic-Encapsulate

Transistors

Features

•

Power Dissipation: PCM=0.75W @ Tamb=25

•

Collector Current: ICM=5A

Maximum Ratings

Symbol

Rating

Unit

VCEO

Collector-Emitter Voltage

22

V

VCBO

Collector-Base Voltage

42

V

VEBO

Emitter-Base Voltage

6.0

V

IC

Collector Current, Continuous

5

A

PD

Total Device Dissipation

750

mW

TJ

Operating Junction Temperature

-55 to +150

TSTG

Storage Temperature

-55 to +150

Electrical Characteristics @ 25OC Unless Otherwise Specified

Symbol

Parameter

Min

Max

Units

OFF CHARACTERISTICS

V(BR)CEO

Collector-Emitter Breakdown Voltage*

(IC=10mAdc, IB=0)

22

---

Vdc

V(BR)CBO

Collector-Base Breakdown Voltage

(IC=100

µAdc, IE=0)

42

---

Vdc

V(BR)EBO

Emitter-Base Breakdown Voltage

(IE=100

µAdc, IC=0)

6.0

---

Vdc

ICBO

Collector Cutoff Current

(VCB=20Vdc, IE=0)

---

100

nAdc

IEBO

Base Cutoff Current

(VEB=3.0Vdc, IC=0)

---

100

nAdc

HFE

DC Current Gain

( VCE=2V, IC=0.15mA)

( VCE=2V, IC=500mA)

( VCE=2V, IC=2000mA)

150

340

150

---

950

---

VCE(sat)

Collector-emitter Saturation Voltage

(IC=3000mA, IB=100mA)

---

0.35

V

Classification of HFE @( VCE=2V, IC=500mA)

Rank

R

T

Range

340-600

560-950

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

TO-92

A

E

B

C

D

G

Revision: A

2011/01/01

DIMENSIONS

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.170

.190

4.33

4.83

B

.170

.190

4.30

4.83

C

.550

.590

13.97

14.97

D

.010

.020

0.36

0.56

E

.130

.160

3.30

3.96

G

.096

.104

2.44

2.64

TM

Micro Commercial Components

www.mccsemi.com

1 of 2

Marking: D965

T/R

D965-R

•

Lead Free Finish/Rohs Compliant ("P"Suffix designates

Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

E

C

B
