DUAL VOLTAGE COMPARATOR

LM393

FEATURES

● Single Supply Operation : 2V to 36V

● Dual Supply Operation : ±1V to ±18V

● Allow Comparison of Voltages Near Ground Potential

● Low Current Drain 800㎂ Typ

● Compatible with all Forms of Logic

● Low Input Bias Current 25㎁ Typ

● Low Input Offset Current ±5㎁ Typ

● Low Offset Voltage ±1㎷ Typ

● Moisture Sensitivity Level 3

ORDERING INFORMATION

DESCRIPTION

The LM393 series consists of two independent precision voltage comparators with an offset voltage

specification as low as 2.0㎷ max. for two comparators which were designed specifically to operate

from a single power supply over a wide range of voltages. Operation from split power supplies

is also possible and the low power supply current drain is independent of the magnitude of the power

supply voltage.

These comparators also have a unique characteristic in that the input common-mode voltage range

includes ground, even though operated from a single power supply voltage.

The LM393 series was designed to directly interface with TTL and CMOS. When operated from both

plus and minus power supplies, the LM393 series will directly interface with MOS logic where their

low power drain is a distinct advantage over standard comparators.

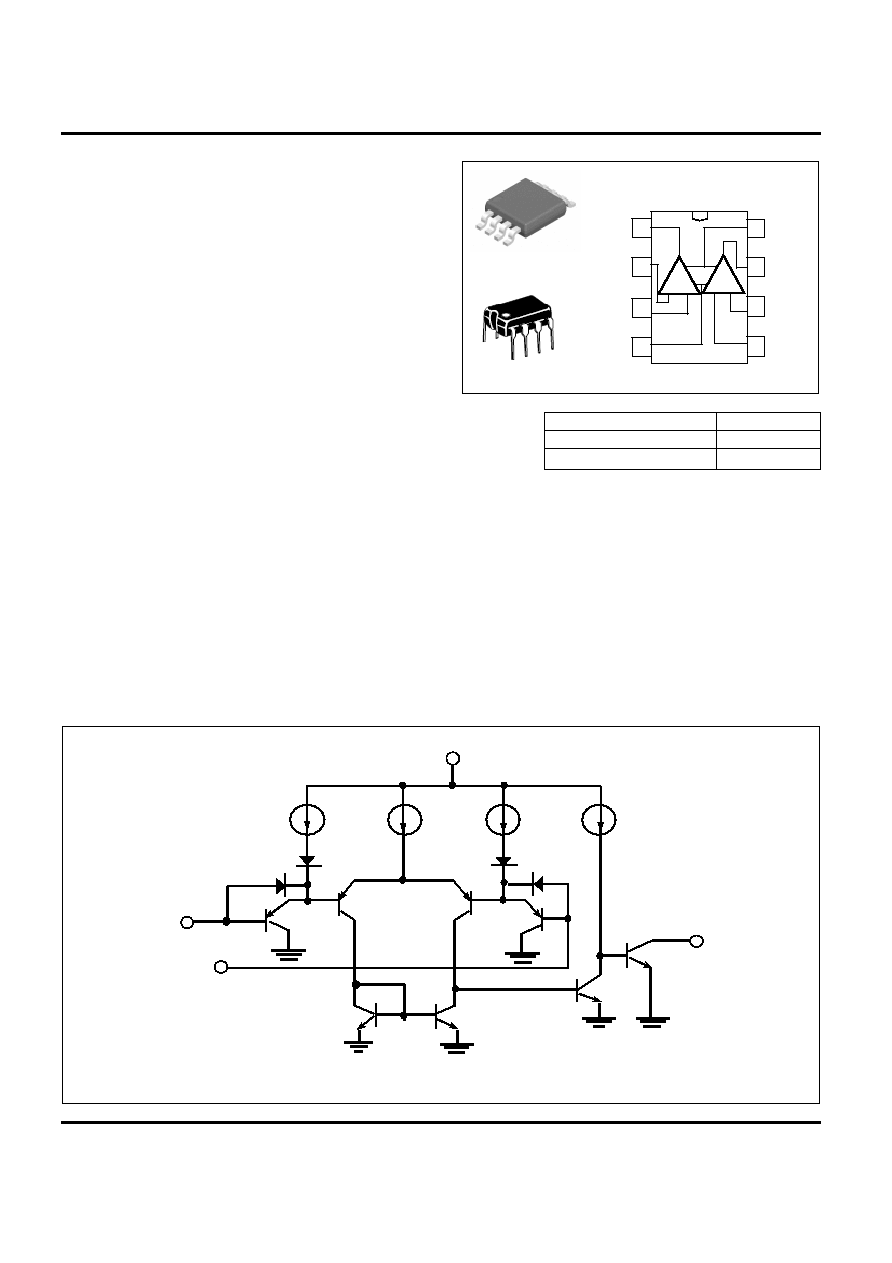

EQUIVALENT CIRCUIT

(1 COMPARATOR ONLY)

2008 - Ver 1.0

HTC

- 1 -

Package

LM393D

8 SOP

LM393N

8 DIP

Device

OUTPUT

Q1

+INPUT

3.5㎂

100㎂

3.5㎂

100㎂

Q2

Q3

-INPUT

Q4

Q5

Q6

Q7

Q8

V+

SOP 8 / DIP 8 Pin Configulation

1

2

3

4

8

7

6

5

IN1(-)

IN1 (+)

Gnd

IN2 (+)

Vcc

Out

Out2

IN2 (-)

A

+

-

B

-

+

SOP-8 PKG

DIP-8 PKG
