13200 Estrella Ave., Bldg. B

Gardena, CA 90248

Tel: 310-325-1043

Fax: 310-325-1044

www.mpsind.com

sales@mpsind.com

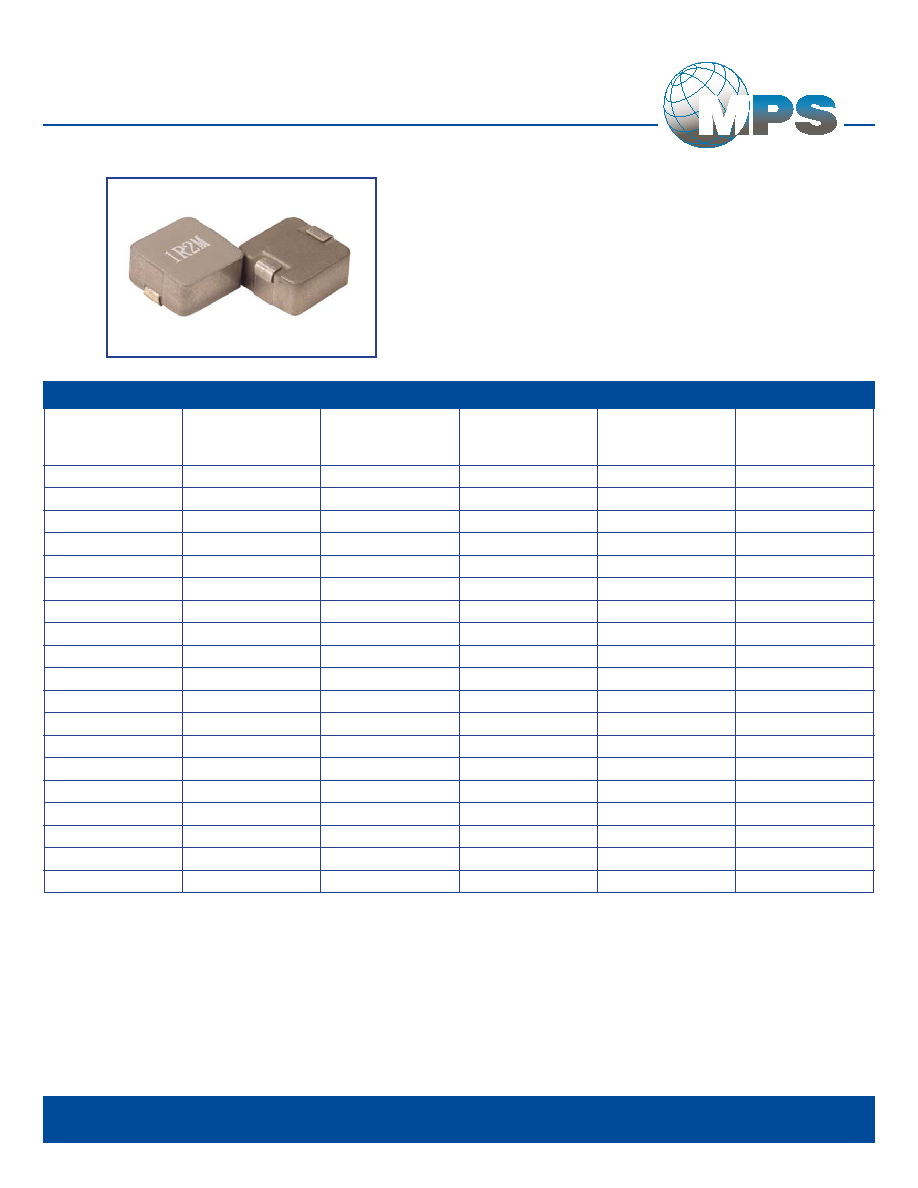

SHIELDED SMD

POWER INDUCTOR

PSE104 SERIES

• High current inductor for Voltage Regulated Module

(VRM)

• Good for DC/DC converter and switch-mode power

supply applications

• High current in compact package

• Operating temperature range: -55oC to +120oC

• RoHS compliant product

Industries

ELECTRICAL SPECIFICATION @ 25OC

Part Number

PSE104-

Inductance

(µH)

±20%

DCR

(mΩ)

Typ

DCR

(mΩ)

Max

I

DC

(A)

Typ

I

SAT

(A)

Typ

R22M

0.22

1.1

1.5

32.0

50.0

R36M

0.36

1.5

1.7

31.5

50.0

R47M

0.47

1.5

1.9

27.5

49.0

R56M

0.56

1.9

2.3

27.5

49.0

R68M

0.68

2.0

2.5

23.0

40.0

R88M

0.88

2.7

3.0

20.0

38.0

1R0M

1.0

3.7

4.1

17.5

36.0

1R5M

1.5

5.3

6.0

15.0

27.5

1R8M

1.8

7.0

8.2

15.0

27.5

2R2M

2.2

8.2

9.0

12.0

25.6

3R3M

3.3

10.8

12

10.0

18.6

4R7M

4.7

15.0

16.5

9.5

17.0

5R6M

5.6

17.6

19.3

8.5

16.0

6R8M

6.8

19.5

25.0

8.0

14.0

8R2M

8.2

21.2

23.3

8.0

13.5

100M

10.0

33.2

36.5

6.8

12.0

150M

15.0

51.0

65.0

3.5

7.0

220M

22.0

90.0

120.0

2.0

3.0

330M

33.0

155.0

200.0

1.8

2.8

•

Inductance measured at 100kHz / 0.1V

RMS

•

I

DC:DCcurrent(A)atwhichtheΔTof40°Cincrease,typical

•

I

SAT:DCcurrent(A)foraΔLdrop30%typicalfrominitialvalue

•

Inductance tolerance M=20%

•

Ambienttemperature:125°CMax.

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

Dimensions

Unlessotherwisespecified,alltolerancesare:

inch: .XX : ±0.015

.XXX : ±0.004

mm: X,X : ±0,38

X,XX : ±0,10
