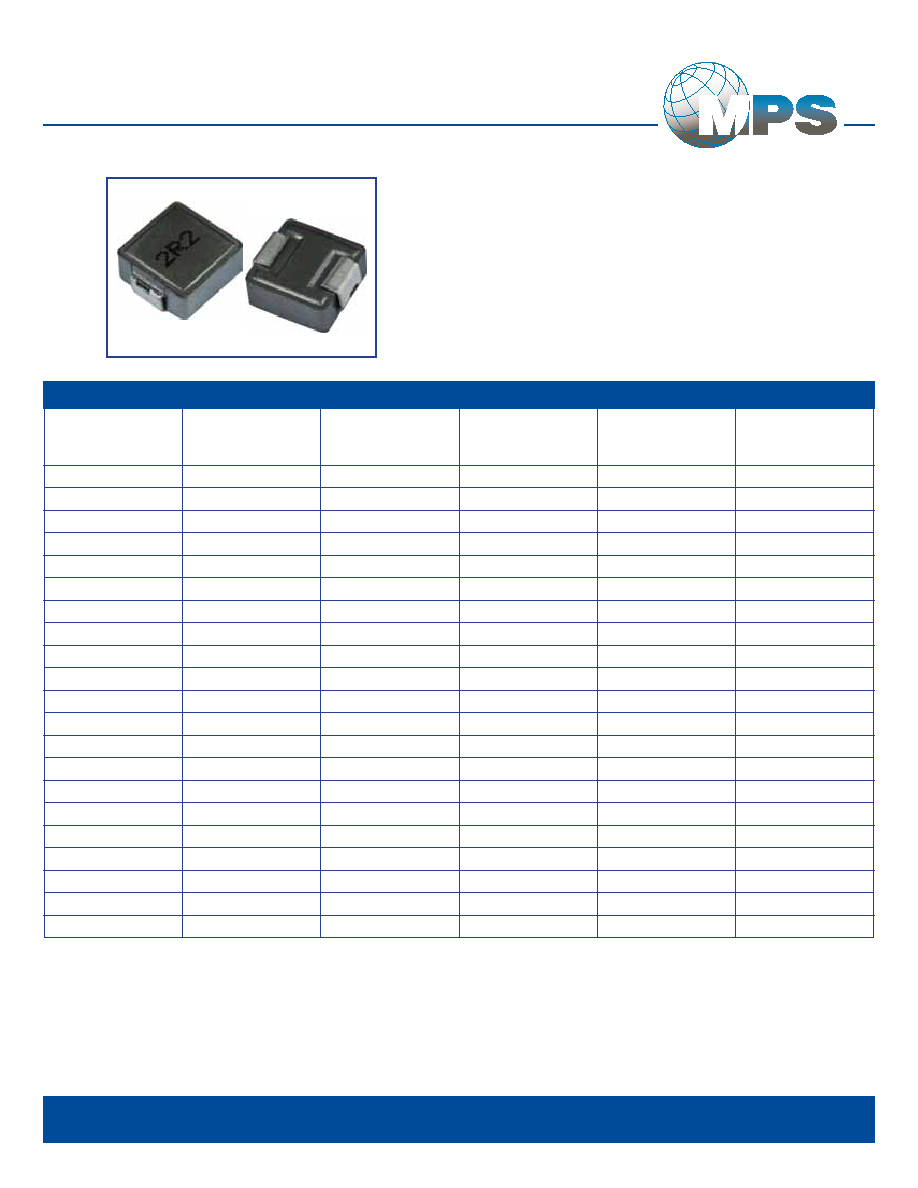

SHIELDED SMD

POWER INDUCTOR

PSM63 SERIES

• High current inductor for VRM

• Lowprofile(3.0mmheight)

• High current handling capacity

• Inductance range from 0.10 to 10.0 µH

• Operating temperature range: -55oC to +125oC

• RoHS compliant product

Industries

ELECTRICAL SPECIFICATION @ 25OC

Part Number

PSM63-

Inductance

(µH)

±20%

DCR

(mΩ)

Typ

DCR

(mΩ)

Max

I

DC

(A)

Max

I

SAT

(A)

Max

R10M

0.10

1.5

1.7

32.5

60.0

R15M

0.15

1.9

2.5

30.0

45.0

R20M

0.20

2.4

2.8

24.0

41.0

R22M

0.22

2.5

3.0

23.0

40.0

R33M

0.33

3.5

3.9

20.0

30.0

R36M

0.36

3.6

3.9

20.0

26.0

R47M

0.47

4.0

4.2

17.5

26.0

R56M

0.56

4.7

5.0

16.5

25.5

R68M

0.68

5.0

5.5

15.5

25.0

R82M

0.82

6.7

8.0

13.0

24.0

1R0M

1.0

9.0

10

11.0

22.0

1R5M

1.5

14

15

9.0

18.0

2R2M

2.2

18

20

8.0

14.0

2R5M

2.5

20

22

7.0

14.0

3R3M

3.3

28

30

6.0

13.5

4R7M

4.7

37

40

5.5

10.0

5R6M

5.6

39

42

5.5

6.0

6R8M

6.8

54

60

4.5

8.0

7R5M

7.5

54

60

4.2

7.8

8R2M

8.2

64

68

4.0

7.5

100M

10.0

102

105

3.0

7.0

• Inductance measured at 100kHz / 0.1V

RMS

• I

DC:DCcurrent(A)atwhichtheΔTof40°Cincreasetypical

• I

SAT:DCcurrent(A)foraΔLdrop30%typicalfrominitialvalue

• Inductance tolerance M=20%

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

Dimensions

Unlessotherwisespecified,alltolerancesare:

inch: .XX : ±0.010

.XXX : ±0.005

mm: X,X : ±0,254

X,XX : ±0,13
