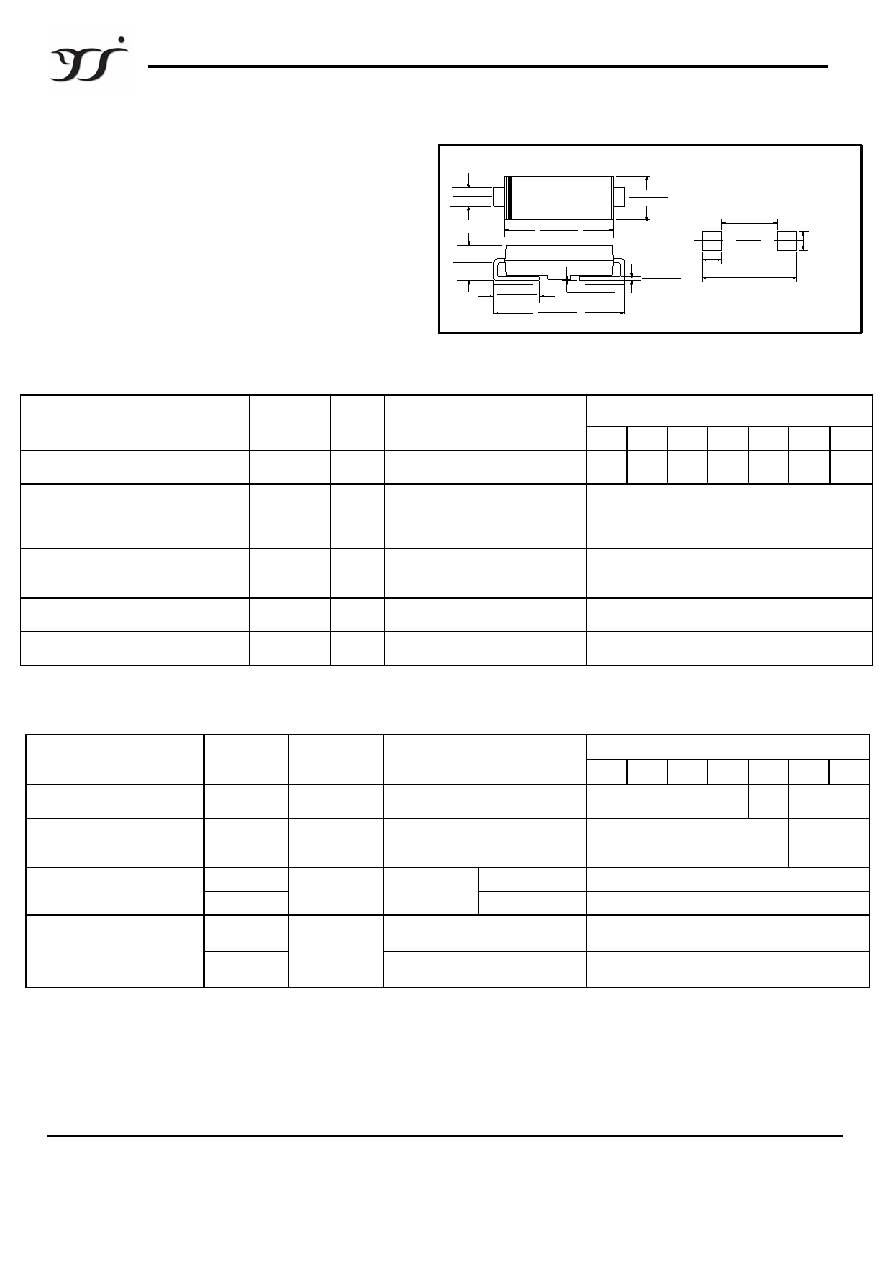

HS3AB THRU HS3MB

■特征

Features

■外形尺寸和印记

Outline Dimensions and Mark

3.0A

50V-1000V

● 耐正向浪涌电流能力高

High surge current capability

● 封装：模压塑料

Cases: Molded plastic

■用途

Applications

●整流用 Rectifier

■极限值（绝对最大额定值）

Limiting Values (Absolute Maximum Rating)

HS3

参数名称

Item

符号

Symbol

单位

Unit

测试条件

Test Conditions

AB

BB

DB

GB

JB

KB

MB

反向重复峰值电压

Repetitive Peak Reverse Voltage

V

50

100

200

400 600 800

1000

正向平均电流

Average Forward Current

A

正弦半波

60Hz ，电阻负载 ，

TL=110℃

60HZ Half-sine wave, Resistance

load, TL =110℃

3

正向（不重复）浪涌电流

Surge(Non-repetitive)Forward

Current

A

正弦半波

60Hz，一个周期，Ta=25℃

60Hz Half-sine wave ,1 cycle ,

Ta =25℃

150

结温

Junction Temperature

℃

-55~+150

储存温度

Storage Temperature

℃

-55 ~ +150

■电特性

（Ta=25℃ 除非另有规定）

Electrical Characteristics (Ta=25℃ Unless otherwise specified）

HS3

参数名称

Item

符号

Symbol

单位

Unit

测试条件

Test Condition

AB

BB

DB

GB

JB

KB

MB

正向峰值电压

Peak Forward Voltage

V

F

V

I

1.0

1.3

1.7

最大反向恢复时间

Maximum reverse recovery

time

ns

50

75

I

RRM1

Ta =25℃

10

反向漏电流

Peak Reverse Current

I

RRM2

μA

Ta =100℃

200

结和环境之间

Between junction and ambient

47

1)

热阻(典型)

Thermal

Resistance(Typical)

/W

℃

结和终端之间

Between junction and terminal

13

1)

备注：Notes:

Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper

pad areas

D im ensions in inches and (m illim eters)

DO-214AA(SMB)

.187(4.75)

.167(4.25)

.155(3.94)

.130(3.30)

.085(2.15)

.073(1.85)

.103(2.61)

.078(1.99)

.056(1.41)

.035(0.90)

.008(0.20)

.004(0.10)

.012(0.31)

.006(0.15)

0.081(2.072)

0.228

(5.80)

M ounting Pad Layout

0.069

(1.76)

0.107

(2.72)

.220(5.59)

.205(5.21)
