ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODE

2-PIN SUPER MINI MOLD

DATA SHEET

ESD NOISE CLIPPING DIODE

NNCD2.0DA to NNCD39DA

Document No. D18879EJ2V0DS00 (2nd edition)

Date Published January 2010 NS

Printed in Japan

2009

The mark <R> shows major revised points.

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

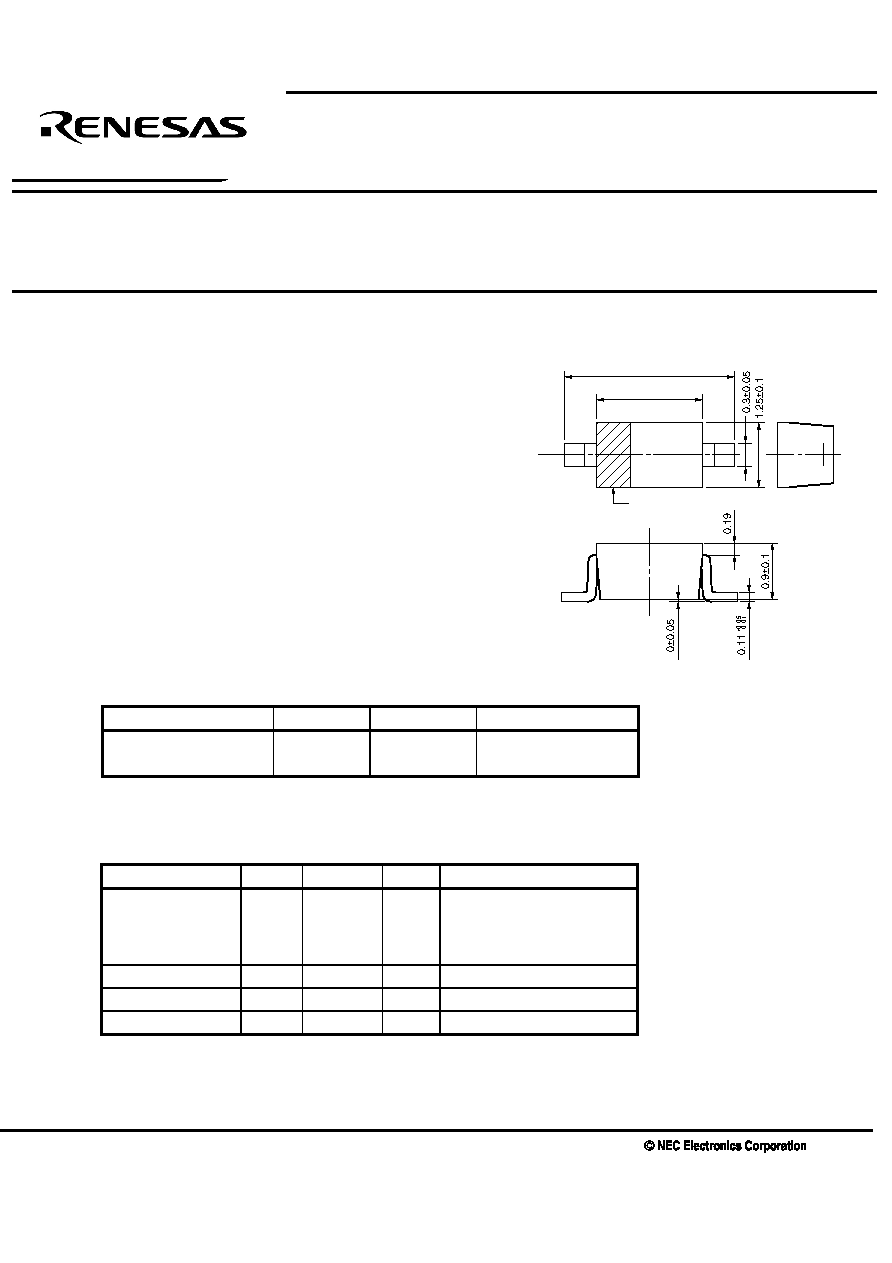

PACKAGE DRAWING (Unit: mm)

1.7

±0.1

2.5

±0.15

Cathode Indication

DESCRIPTION

These products are the diode developed for ESD (Electrostatic

Discharge) noise protection. Based on the IEC61000-4-2 test on

electromagnetic interference (EMI), the diode assures an endurance,

thus making itself most suitable for external interface circuit

protection.

FEATURES

• Based on the electrostatic discharge immunity test (IEC61000-4-2),

the product assures the minimum endurance

• Based on the reference supply of the set, the product achieves

a series over a wide range (32 product names lined up)

• Package: 2-pin Super Mini Mold (SC-76)

APPLICATIONS

• External interface circuit ESD protection

• Circuits for Waveform clipper, Surge absorber

ORDERING INFORMATION

PART NUMBER

LEAD PLATING

PACKING

PACKAGE

NNCD

∗∗

Pure Sn (Tin)

Tape 3000 p/reel

2-pin Super Mini Mold

(SC-76)

Notes 1. Type Number

2. Pb-free (This product does not contain Pb in the external electrode and other parts.)

°C)

Parameter

Symbol

Rating

Unit

Remark

Power Dissipation

P

200

mW

When surface mounting on

30 mm x 30 mm x 1.6 mmt

P.C.B. (Glass Epoxy),

refer to Figure 1

Surge Reverse Power

85

W

Junction Temperature

150

Storage Temperature

−55 to +150
