Description

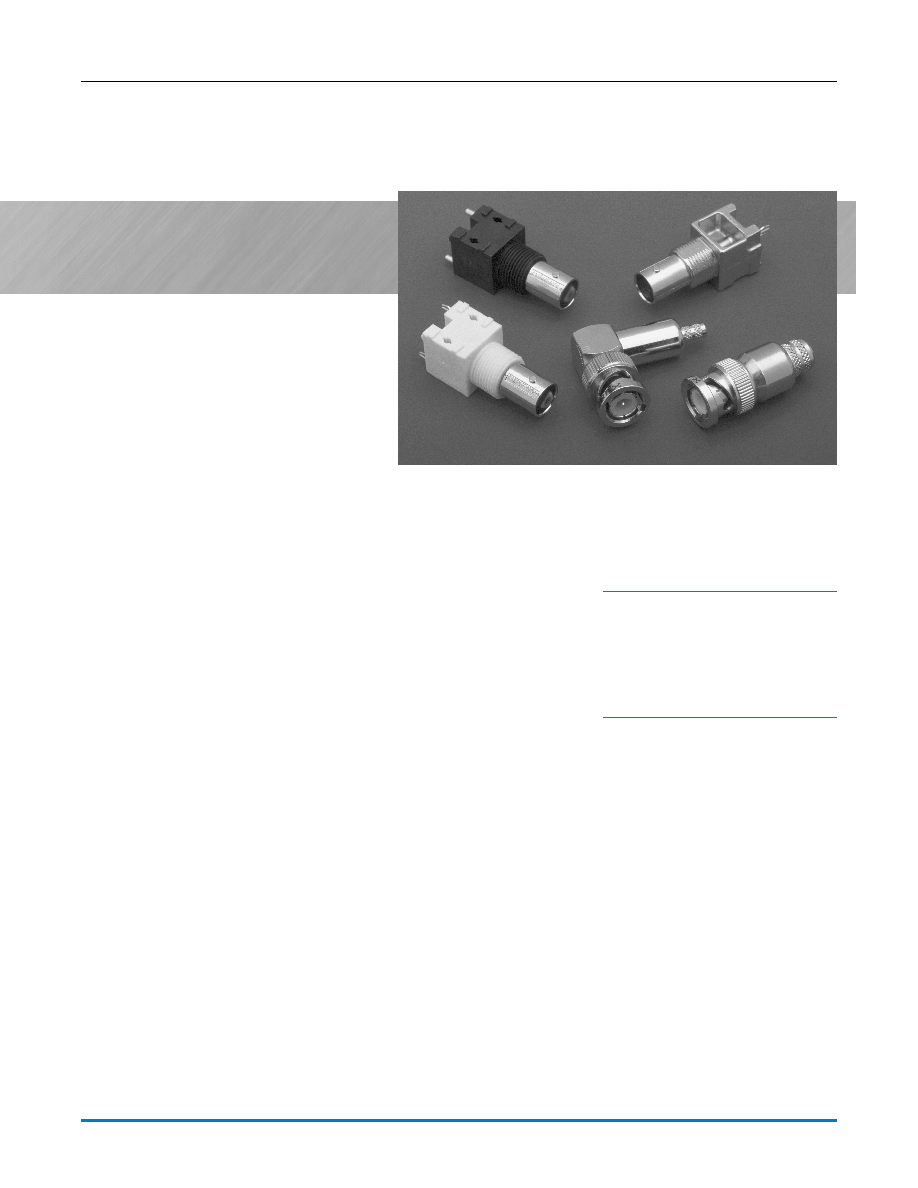

Amphenol 50 ohm BNC connectors

ar e miniatur e, lightweight units

designed to operate up to 11 GHz

and typically yield low reflection

thr ough 4 GHz. Designed to

accomodate a large variety of RG

and industry standard cables, BNC

connectors are available in crimp-

crimp, clamp-solder, SURETWIST®,

and field serviceable termination

styles. A full line of printed circuit

boar d r eceptacles, bulkhead

receptacles, resistor terminations,

and other accessories complement

the product offering.

Features/Benefits

Amphenol manufactures a full line

of BNC connectors to meet all users’

needs. Parts which are listed with

the appropriate M39012 number in

the catalog ar e Military Grade

connectors produced in accordance

with and actively qualified to the

military specification MIL-C-39012.

Connectors not listed with the

M39012 number constitute the

Industrial Grade product offering.

These

connectors

pr ovide

comparable performance and

generally feature nickel plated brass

bodies, Teflon insulators, and either

gold or silver plated center contacts.

Amphenol’s Commercial Grade

connector offering carries the part

number designation “RFX” for easy

r ecognition. These low cost

connectors typically utilize diecast

and molded components. While

performance will not be equal to

the Industrial or Military grade

products, these connectors are

ideal for use on a variety of

commercial applications.

Amphenol’s 50 ohm BNC connectors

(where indicated) are recognized

under the Component Program of

Underwriter’s Laboratories, Inc.

They are ideal for use with medical

equipment and test instrumentation

wher e

safety

cannot

compromised.

Applications

• Computers/LANs

• Test and Measurement

• Medical Equipment

• Telecommunications

• W ireless/Networks

BNC 50 ohm

Coaxial Connectors

Amphenol

50 ohm

BNC 50 ohm Connectors

106

Plugs and Jacks

108-113

Adapters

119

PCB Connectors

120-121

106

Amphenol Corporation Tel: 800-627-7100
