SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

Applications

IEEE 802.11b DSSS radios, Wireless LAN

2.4GHz cordless phones, ISM radios

Features

Integrated power detector circuit

High linear output power for IEEE802.11b:

+20dBm, ACPR 1

Low current consumption: 110mA at 3.3V

High saturated output power for cordless telephone

applications: +23dBm, 140mA at 3.6V

Single supply voltage: 2.7 to 3.6V

Wide Temperature range: -40°C to +85°C

Integrated linear analog control for DC current and

output power management

Small plastic package: 8 Pin LPCC

Ordering Information

Type

Package

Remark

SE2522L

8 Pin LPCC

Samples

SE2522L-R

8 Pin LPCC

Shipped in

Tape & Reel

SE2522L-EK1

Evaluation Kit

Product Description

The SE2522L is a power amplifier IC designed for the

2.4GHz ISM band and compliant with the IEEE 802.11b

WLAN standard. It typically provides +20dBm linear

output power requiring only 110mA at 3.3V. It can also

be utilized in 2.4GHz cordless telephone applications

where it typically provides +23dBm saturated output

power at 3.6V.

The SE2522 includes an integrated power detector

circuit for closed loop monitoring of output power. It has

an input power range of 15dB with an accuracy of

±1.0dB. An accurate automatic level control function

can easily be implemented using this power detector

circuit.

The SE2522L contains a linear analog control (0.1 to

1.6V) for minimizing DC current consumption and

maximizing PAE.

The SE2522L includes a digital enable control for

device on/off control where ramping is typically 1 µsec.

This device is capable of operating at a duty cycle of

100 percent.

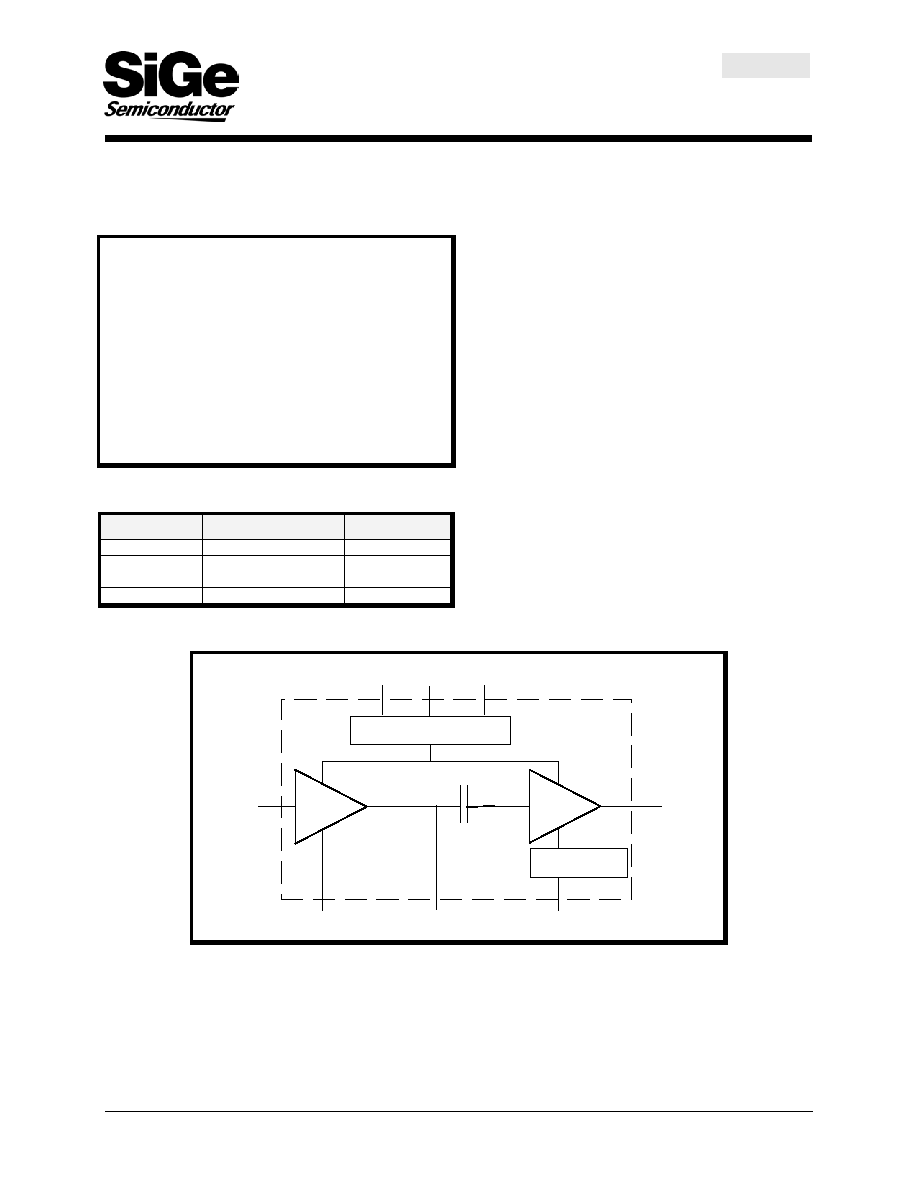

Functional Block Diagram

Stage 1

Stage 2

Bias Generator

V

CTL

V

CC0

V

EN

IN

OUT/ V

CC2

V

CC1

GND

V

DET

Power Detector

18-DST-01 Rev 2.4 Aug 7/02

1 of 8
