部件名	A-USB-2-R

功能描述	USB ADAPTER - A TYPE FEMALE

PDF	1 Pages

Scroll/Zoom	100%

制造商	ASSMANN [Assmann Electronics Inc.]

网页	http://www.assmann.us

标志

1 / 1 page

1

P

1

P

4

3

2

1

4

3

1

2

P1

1

2

3

4

P2

1

2

3

4

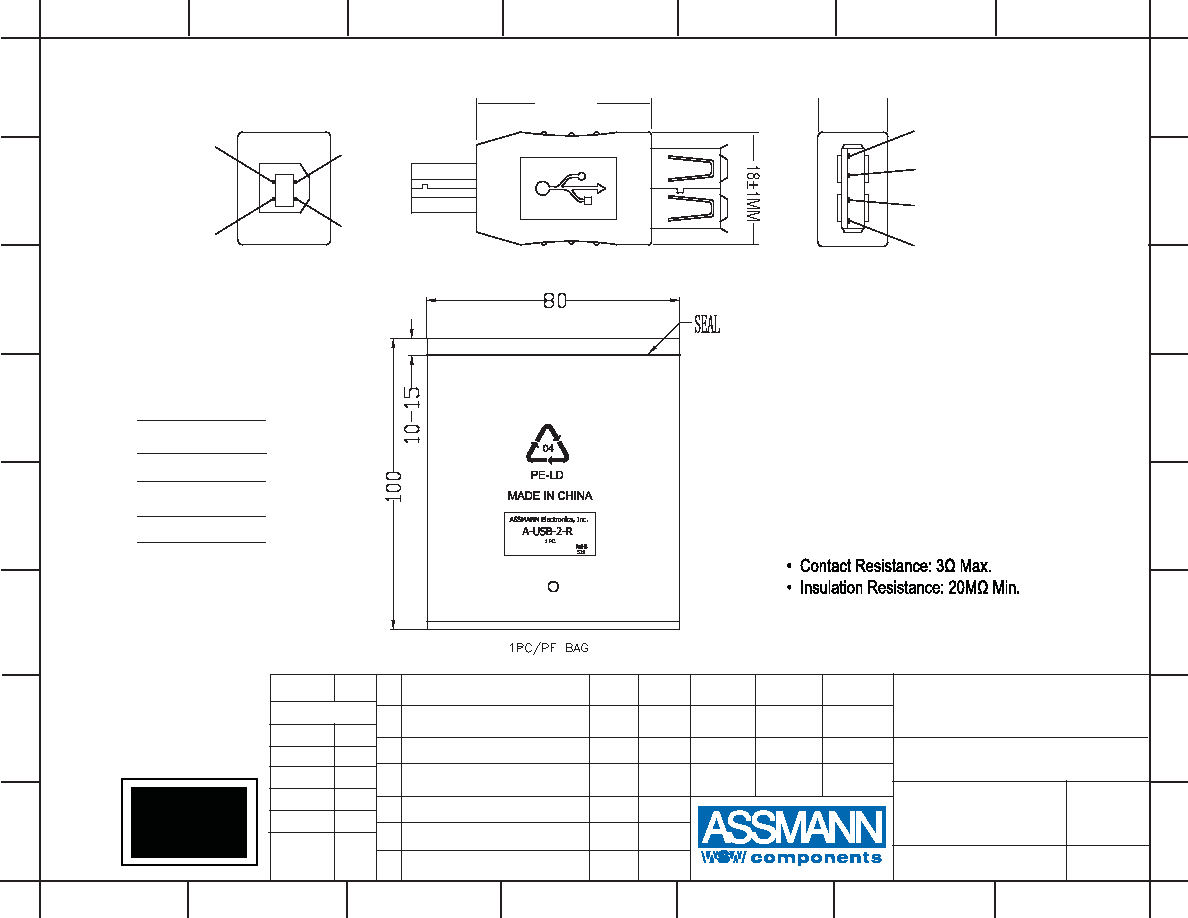

29±1MM

12±1MM

Drain

Unit: MM

Material:

• Cable: UL1007 28AWG L=30MM

• P1 Connector: USB B male

- Pin Gold Flash short body

- Shell Plate Nickel

• P2 Connector: USB A female

- Pin Gold Flash short body

- Shell Plate Nickel

• Jacket: Beige 40P PVC

Electrical:

• 100% Test (Open, Short, Miss wire)

• Hi-Pot: 300V DC/10ms

1

2

3

4

5

6

7

1

2

3

4

5

6

7

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

Item No.

Drawing No.

Title

Name

Chappell

Drawn

10.19.11

Approved

Modification

Date

Name

Scale

TOLERANCE

1:1

X.X

X.XX

X.XXX

Angle

±0.40

±0.25

±0.15

±3°

Replace

Sheet

A-USB-2-R

USB Adapter - A type Female <=> B type Male

Version 1.1 & 2.0

Complaint

RoHS

rev00
