1 / 2 page

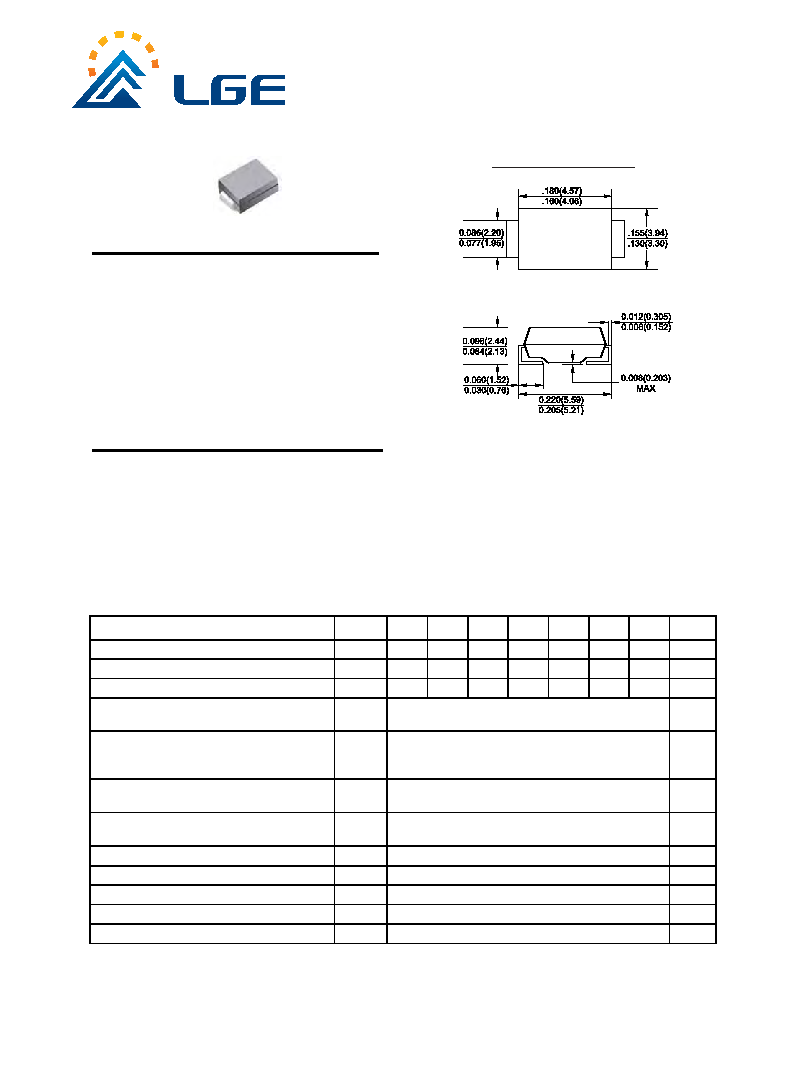

Dimensions in inches and (millimeters)

S3AB - S3MB

3.0 AMPS. Surface Mount Rectifiers

SMB/DO-214AA

Features

For surface mounted application

Glass passivated junction chip.

Low forward voltage drop

High current capability

Easy pick and place

High surge current capability

Plastic material used carries Underwriters

Laboratory Classification 94V-0

High temperature soldering:

260

oC / 10 seconds at terminals

Mechanical Data

Case: Molded plastic

Terminals: Pure tin plated, lead free.

Polarity: Indicated by cathode band

Weight: 0.093 gram

Maximum Ratings and Electrical Characteristics

Rating at 25

oC ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Symbol S3AB S3BB S3DB S3GB S3JB S3KB S3MB

Units

Maximum Recurrent Peak Reverse Voltage

VRRM

50

100

200

400

600

800

1000

V

Maximum RMS Voltage

VRMS

35

70

140

280

420

560

700

V

Maximum DC Blocking Voltage

VDC

50

100

200

400

600

800

1000

V

Maximum Average Forward Rectified Current

@TL =75

oC

I(AV)

3.0

A

Peak Forward Surge Current, 8.3 ms Single

Half Sine-wave Superimposed on Rated

Load (JEDEC method )

IFSM

80

A

Maximum Instantaneous Forward Voltage

@ 3.0A

VF

1.15

V

Maximum DC Reverse Current @ TA =25

oC

at Rated DC Blocking Voltage @ TA=125

oC

IR

10

250

uA

Typical Reverse Recovery Time ( Note 1 )

Trr

1.5

uS

Typical Junction Capacitance ( Note 2 )

Cj

40

pF

Typical Thermal Resistance (Note 3)

RθJL

10

oC/W

Operating Temperature Range

TJ

-55 to +150

oC

Storage Temperature Range

TSTG

-55 to +150

oC

Notes:

1. Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A

2. Measured at 1 MHz and Applied VR=4.0 Volts

3. Measured on P.C. Board with 0.4” x 0.4” (10mm x 10mm) Copper Pad Areas.

http://www.luguang.cn

mail:lge@luguang.cn
