CY25200

Programmable Spread Spectrum

Clock Generator for EMI Reduction

Cypress Semiconductor Corporation

•

198 Champion Court

•

San Jose

, CA 95134-1709

•

408-943-2600

Document Number: 38-07633 Rev. *H

Revised December 7, 2010

Programmable Spread Spectrum Clock Generator for EMI Reduction

Features

■ Wide Operating Output (SSCLK) Frequency Range

❐ 3 to 200 MHz

■ Programmable Spread Spectrum with Nominal 31.5 kHz

modulation Frequency

■ Center Spread: ±0.25% to ±2.5%

■ Down Spread: –0.5% to –5.0%

■ Input Frequency Range

❐ External crystal: 8 to 30 MHz fundamental crystals

❐ External reference: 8 to 166 MHz clock

■ Integrated Phase-Locked Loop (PLL)

■ Programmable Crystal Load Capacitor Tuning Array

■ Low Cycle-to-Cycle Jitter

■ 3.3 V Operation with 2.5 V Output Clock Drive Option

■ Spread Spectrum On and Off Function

■ Power Down or Output Enable Function

■ Output Frequency Select Option

■ Field-Programmable

■ Package: 16 Pin TSSOP

Description

The CY25200 is a programmable clock generator with spread

spectrum capability. Spread spectrum modulates the output

clock frequency over a small range, spreading the energy and

reducing the energy peak. This is a powerful technique to reduce

EMI in a variety of applications.

It uses either an external reference clock or a crystal for an input.

It also uses a PLL to generate a spread spectrum output clock

that can be a different frequency than the input. Up to six output

clocks are available and up to two of them can be REFCLKs

(copies of the input clock, without spread).

The CY25200 is highly configurable. Programmable variables

include the input and output frequencies, spread percentage,

center spread or down spread, and control pin functions. The

oscillator pin capacitance can also be programmed to match the

load capacitance requirement (CL)of the crystal, eliminating the

need for external capacitors.

Available features include Output Enable, Power Down, Spread

On/Off, Frequency Select, and the option to power some output

clocks at 2.5 V.

Cypress’ web-based CyberClocks Online software is used to

configure the device. Programmability enables fast prototyping,

which is particularly useful when doing EMC testing and

determining the optimal spread settings.

Divider

PLL

SSCLK3

Q

P

VCO



SSCLK2

SSCLK4

SSCLK5/REFOUT/CP2

SSCLK6/REFOUT/CP3

Bank 1

Divider

Bank 2

Output

Select

SSCLK1

Matrix

VDDL

AVSS

AVDD

VSS

VSSL

VDD

CP0

CP1

2

35

13

11

6

410

7

8

9

12

14

15

XIN/CLKIN

OSC.

XOUT

CXIN

1

CXOUT

16

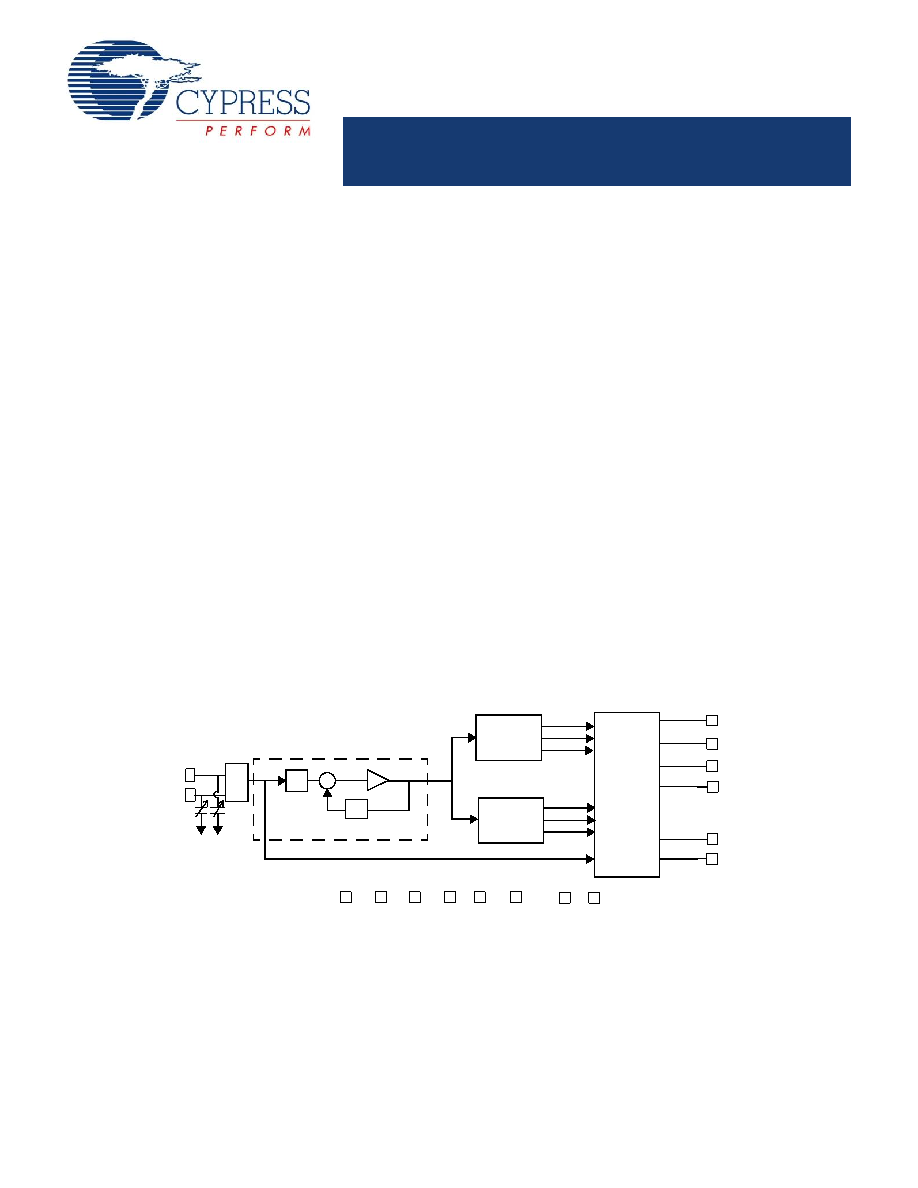

Logic Block Diagram
