TECHNISCHE ÄNDERUNGEN VORBEHALTEN – MASSE IN MILLIMETER

Y-ConUSB Cable Assemblies

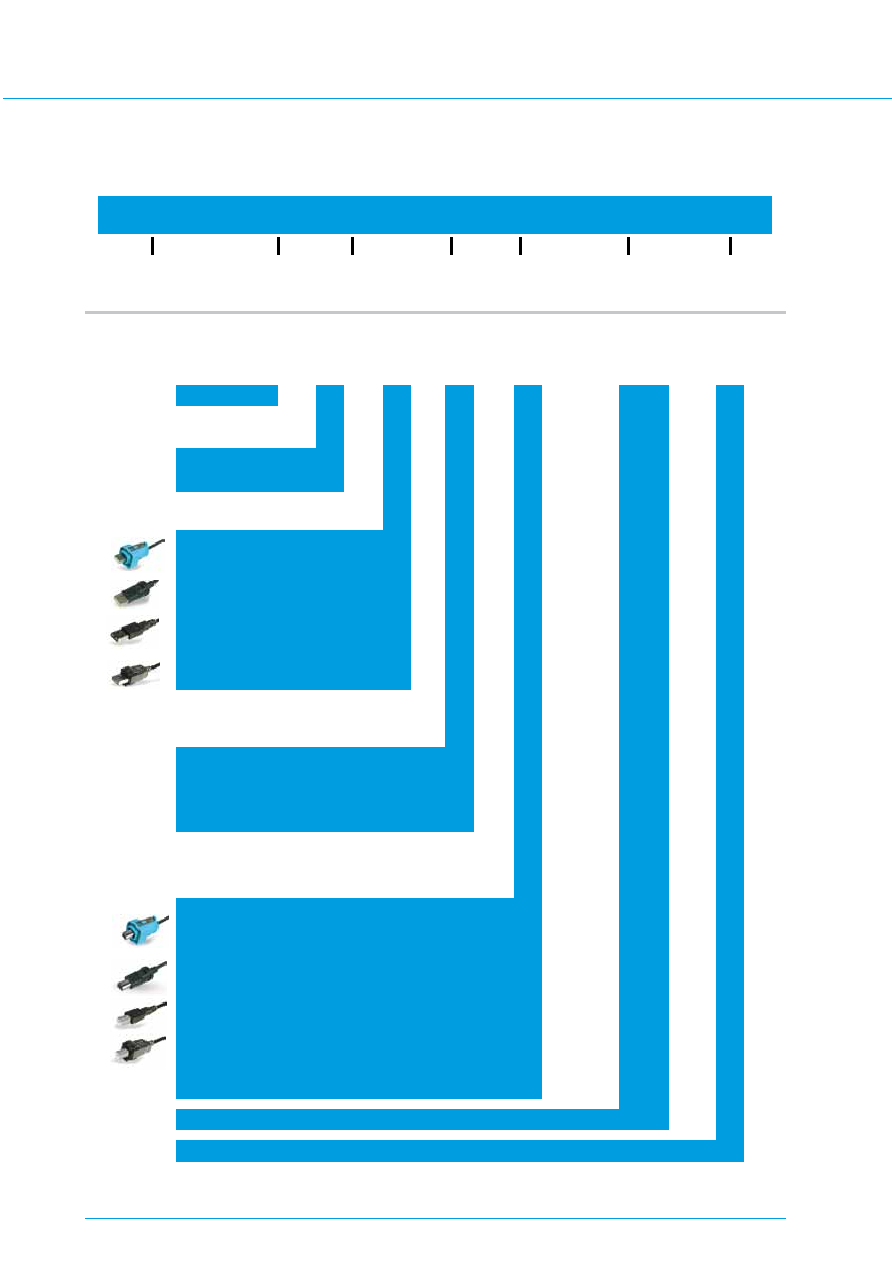

Part Number (Details)

Series

Interface Side 1

UA4 = USB A, 4 contacts

UB4 = USB B, 4 contacts

Protection Side 1

6P = IP67 plastic cover

2S = IP20 strain relief

2F = IP20 flat

2L = IP20Lock strain relief

Interface Side 2

UA4 = USB A, 4 contacts

UB4 = USB B, 4 contacts

CU = customer specific

FE = free end (cut only)

Protection Side 2

6P = IP67 plastic cover

2S = IP20 strain relief

2F = IP20 flat

2L = IP20Lock strain relief

CU = customer specific

Length in mm

Wiring Plan E = Standard USB

F = Custom

Y-ConC

- ***

** - **

**** -

Y-ConC

- UA4

2000 -

Part Number Example for USB Cable Assemblies

USB A with

4 contacts

Series

IP67

plastic

cover

IP20 with

strain relief

Length

in mm

Standard

USB B with

4 Contacts
