SPECIFICATIONS ARE FOR REFERENCE ONLY AND SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

26

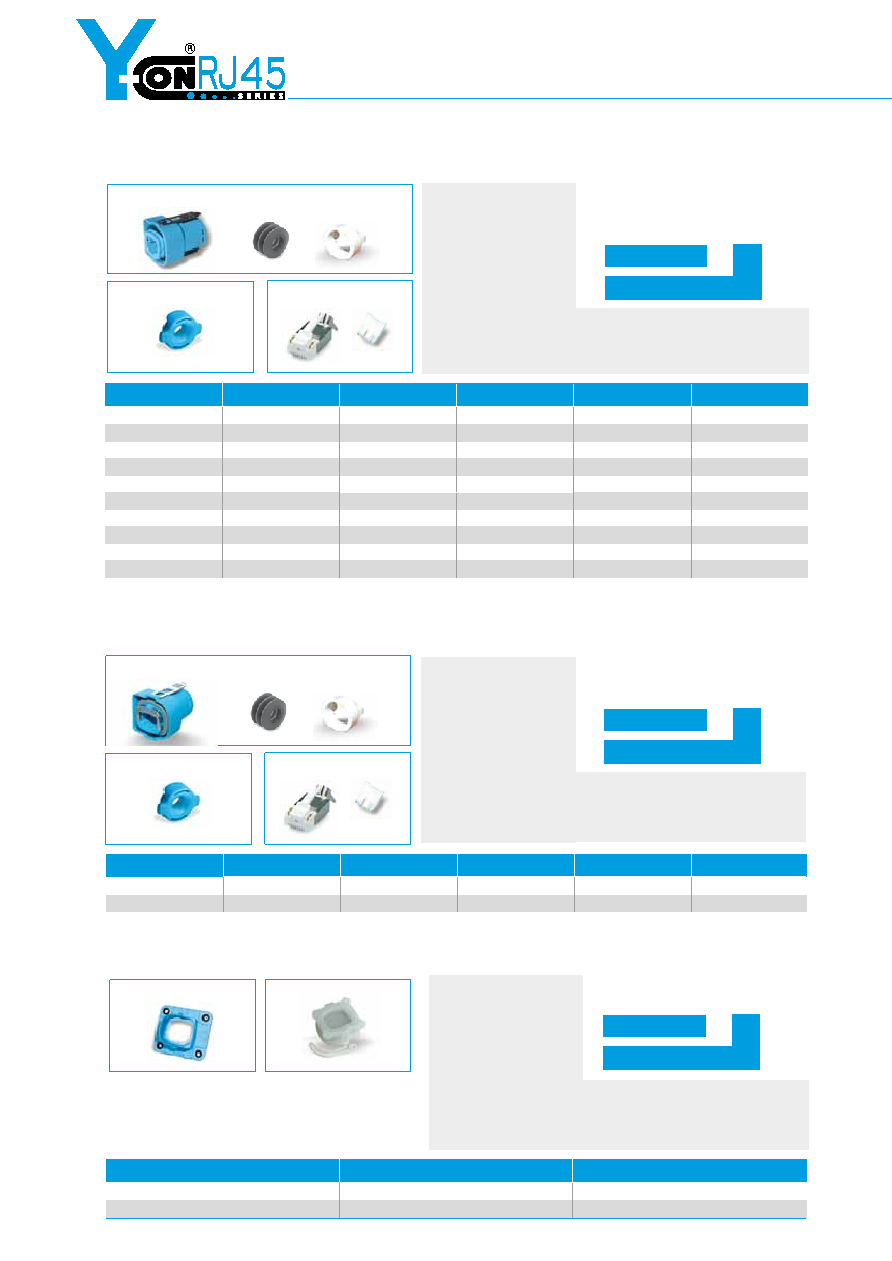

Description:

IP67/68/69K EMI RJ45

Field kit for self-assembly

IP67/68/69K EMV RJ45 Konfektionierungs-Kit zur Selbstmontage

Description:

IP67/68/69K RJ45

field kit for self-assembly

IP67/68/69K RJ45 Konfektionierungs-Kit zur Selbstmontage

Part Number

Cover

Terminator Cap

Plug

Signal Contacts

Power Contacts

Y-ConKit-20

Y-ConCover-10

Y-ConAS-23

Y-ConPlug-11

4 (Ethernet)

0

Y-ConKit-20-B

Y-ConCover-10-B

Y-ConAS-23-B

Y-ConPlug-11

4 (Ethernet)

0

Y-ConKit-21

Y-ConCover-10

Y-ConAS-23

Y-ConPlug-21

4 (Ethernet)

2

Y-ConKit-21-B

Y-ConCover-10-B

Y-ConAS-23-B

Y-ConPlug-21

4 (Ethernet)

2

Y-ConKit-21-B-LT

Y-ConCover-10-B-LT

Y-ConAS-23-B

Y-ConPlug-21

4 (Ethernet)

2

Y-ConKit-23

Y-ConCover-10

Y-ConAS-23

Y-ConPlug-31

6

2

Y-ConKit-24

Y-ConCover-10

Y-ConAS-23

Y-ConPlug-41

8

0

Y-ConKit-24-B

Y-ConCover-10-B

Y-ConAS-23-B

Y-ConPlug-41

8

0

Y-ConKit-24-B-LT

Y-ConCover-10-B-LT

Y-ConAS-23-B

Y-ConPlug-41

8

0

Y-ConKit-26

Y-ConCover-10

Y-ConAS-23

Y-ConPlug-51

8

2

Part Number

Cover

Terminator Cap

Plug

Signal Contacts

Power Contacts

Y-ConKit-21-E

Y-ConCover-10-E

Y-ConAS-23

Y-ConPlug-21

4 (Ethernet)

2

Y-ConKit-21-B-E

Y-ConCover-10-B-E

Y-ConAS-23-B

Y-ConPlug-21

4 (Ethernet)

2

Series

See table below

Series

See table below

Series

See table below

Y-ConKit

-

2*

Y-ConKit

- 3*

Y-ConKit

-

2*

Y-ConCover-10-E

Y-ConCover-10-B-E (black)

Y-ConAS-22

Y-ConAS-22

IP67 / 68 / 69K Field Kits

IP67 / 68 / 69K Field Kits (EMI)

IP67 / 68 / 69K Flange Field Kits

Description:

IP67/68/69K RJ45

Flange field kit for

self-assembly

IP67 RJ45 Flansch Konfektionierungs-Kit zur Selbstmontage

Part Number

Flange

Protection Cap

Y-ConKit-30

Y-ConFlange-10

Y-ConAS-24

Y-ConKit-30-B

Y-ConFlange-10-B

Y-ConAS-24

Y-ConAS-24

Y-ConFlange-10

Y-ConFlange-10-B (black)

Y-Con Stopper

Y-Con Stopper

Y-ConAS-23

Y-ConAS-23-B (black)

Y-ConAS-23

Y-ConAS-23-B (black)

Y-ConPlug-**

Y-ConPlug-**

Y-ConCover-10

Y-ConCover-10-B (black)

Insert

Insert
