Part Number

Signal Contacts

Power Contacts

Orientation

PCB

Y-ConJack-13

8

0

90°

with solder pads

Y-ConJack-23

8

2

90°

with solder pads

Y-ConJack-14

8

0

90°

with terminals

Y-ConJack-24

8

2

90°

with terminals

Y-ConJack

-

* *

Series

Power Contacts 1 = w/o. 2 = with

Design Number

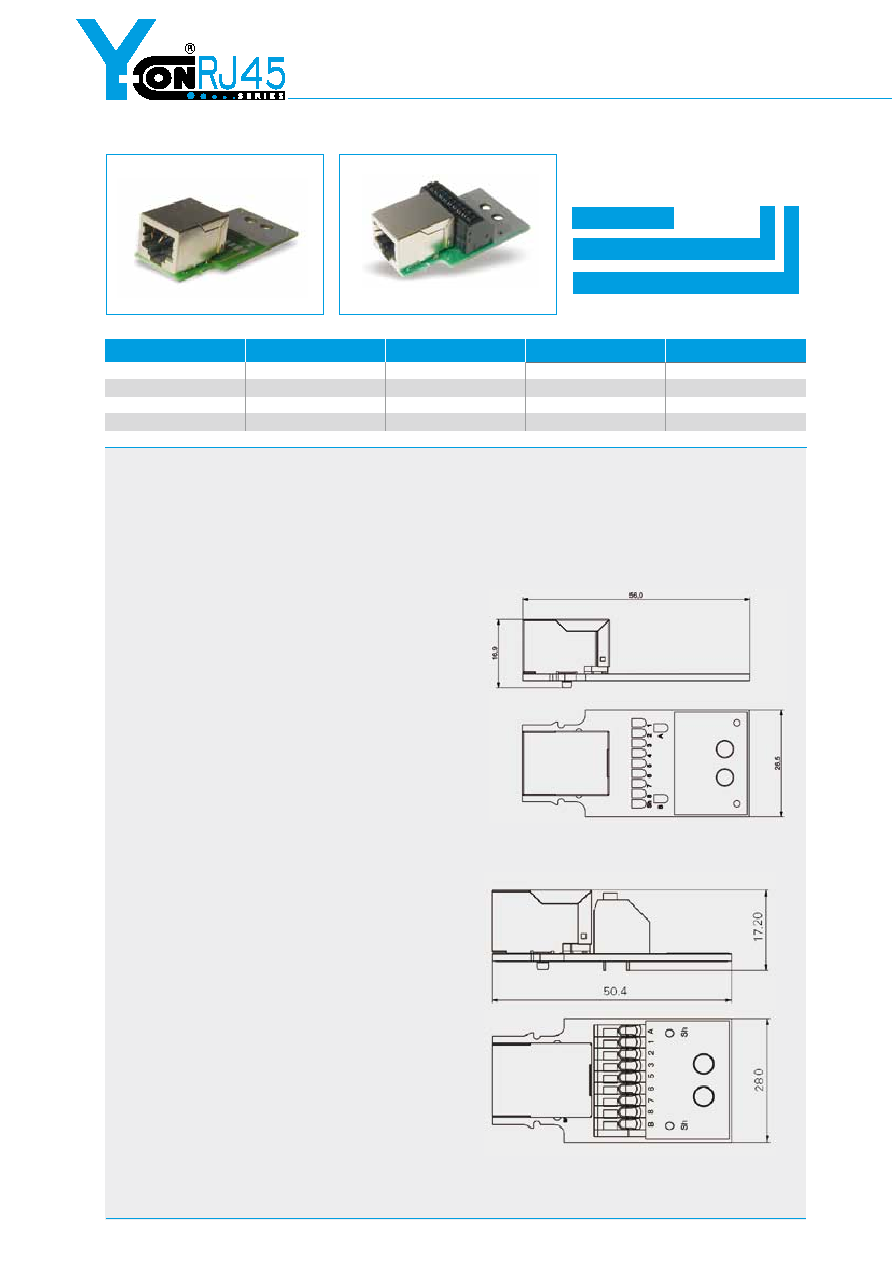

Outline Dimensions

Y-ConJack-13 / -23

Y-ConJack-14 / -24

SPECIFICATIONS ARE FOR REFERENCE ONLY AND SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

20

Description:

RJ45 PCB mounted jacks, Cat 5, with or without power

contacts. For use with Y-ConFlange-10-*, Y-ConFlange-40-*

and all Y-Con plugs

RJ45 Buchse auf PCB, Cat 5, mit oder ohne zusätzliche Kontakte

für die Stromversorgung. Für den Einsatz mit Y-ConFlange-10-*,

Y-ConFlange-40-* und allen Y-Con Kabelsteckern

Material:

Jack body

PA, UL94V-0

Isolierkörper

Shielding

Nickel plated brass

Schirmung

Contact

Contact area 30µ”Au/50µ”Ni

Kontakte

PCB

FR4, UL94V-0

Specifications:

Oper. Temp.:

-40°C ~ +120°C

Betriebstemp.

Durability:

1,500 mechanical cycles

Lebensdauer

Current Rating:

Bemessungsstrom

Y-ConJack-13 / -23

Y-ConJack-14 / -24
