50V-600V

3.0A

ES3AB THRU ES3JB

Web Site: www.taychipst.com

1 of 2

FEATURES

E-mail: sales@taychipst.com

MECHANICAL DATA

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Low cost

Low leakage

Low forward voltage drop

High current capability

Easily cleaned with Alcohol,Isopropanol

and similar solvents

The plastic material carries U/L recognition 94V-0

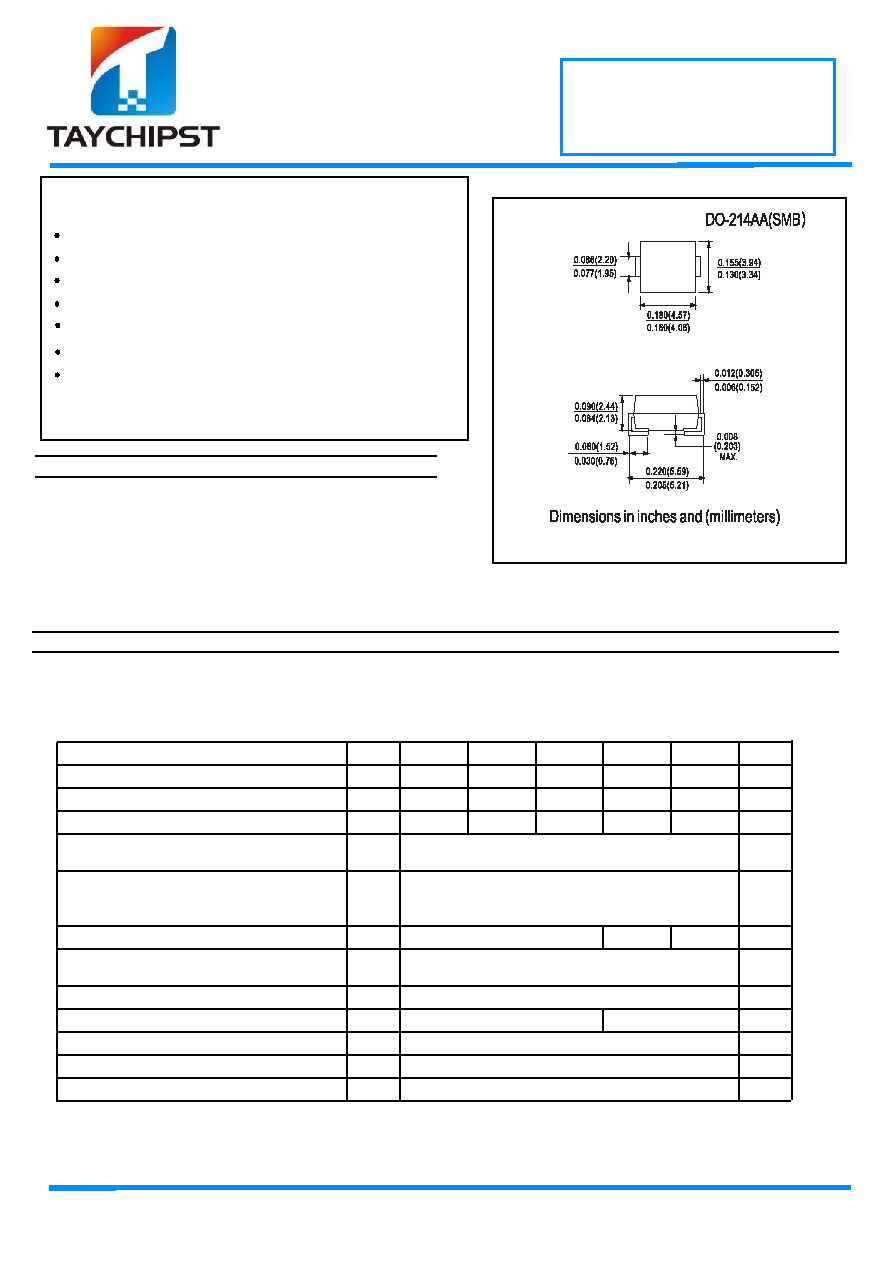

Case:JEDEC DO-214AA,molded plastic

Terminals: Solderable per

MIL- STD-202,Method 208

Polarity: Color band denotes cathode

Weight: 0.007 ounces,0.21 grams

Mounting position: Any

SU R FA CE M O UNT R EC T IFIER

Rating at 25℃ ambient temperature unless otherwise specified.

Single phase, half wave ,60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

CHARACTERISTICS

SYMBOL

ES3AB

ES3BB

ES3DB

ES3GB

ES3JB

UNIT

Maximum Recurrent Peak Reverse Voltage

VRRM

50

100

200

400

600

V

Maximum RMS Voltage

VRMS

35

70

140

280

420

V

Maximum DC Blocking Voltage

VDC

50

100

200

400

600

V

Maximum Average Forward

Rectified Current

@TA=55 ℃

Peak Forward Surge Current

8.3ms Single Half Sine-Wave

Super Imposed on Rated Load(JEDEC Method)

Peak Forward Voltage at 3.0A DC

VF

1.25

1.70

V

Maximum DC Reverse Current

@TJ=25℃

at Rated DC Blocking Voltage

@TJ=100℃

Maximum Reverse Recovery Time(Note 1)

TRR

nS

Typical Junction Capacitance (Note2)

CJ

pF

Typical Thermal Resistance (Note3)

R JA

℃

/W

Operating Temperature Range

TJ

℃

Storage Temperature Range

TSTG

℃

0.95

45

70

100

A

125

IFSM

A

I(AV)

3.0

2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC

3.Thermal resistance junction to ambient.

NOTES: 1.Measured with IF=0.5A, IR=1A, IRR=0.25A

-55 to +150

μA

IR

5.0

20

35
