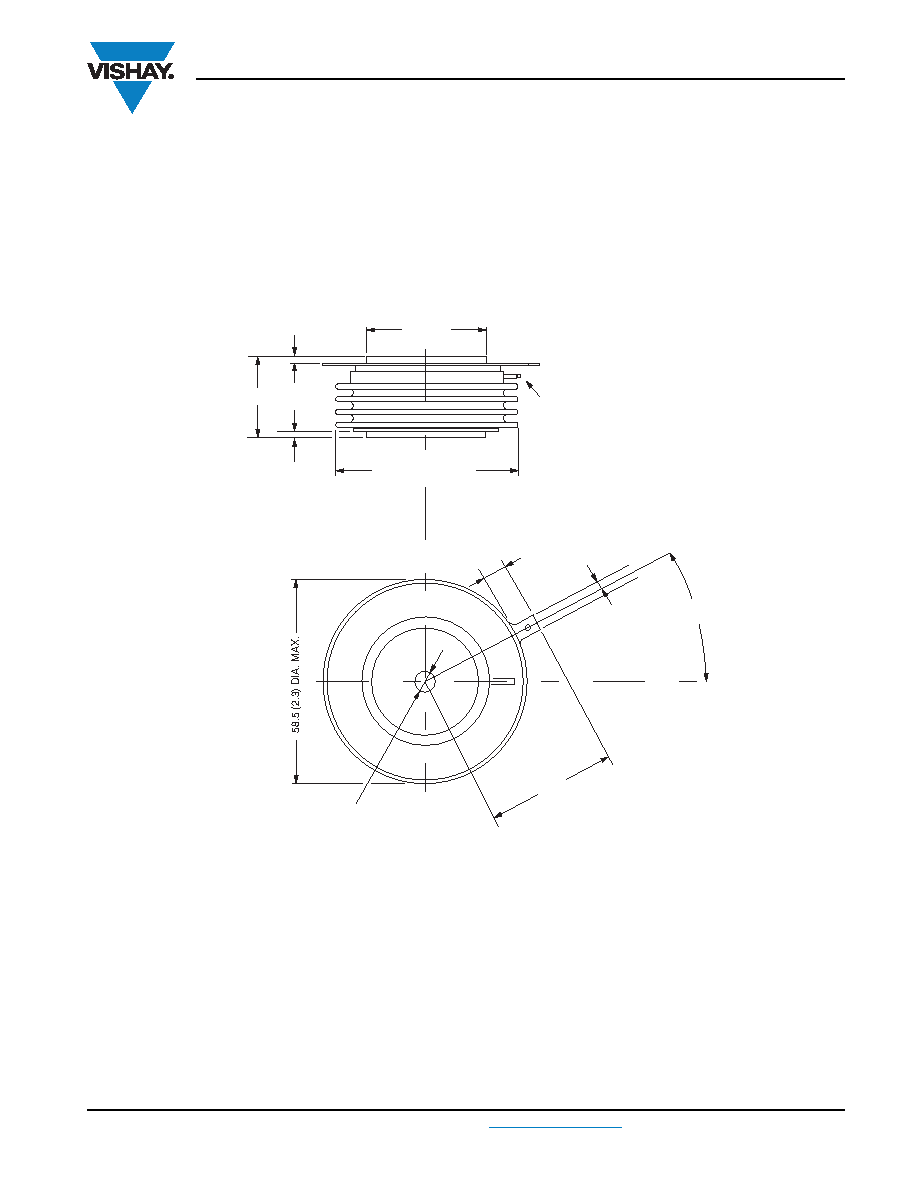

TO-200AC (B-PUK)

Outline Dimensions

Vishay Semiconductors

DIMENSIONS in millimeters (inches)

Pin receptacle

AMP. 60598-1

0.7 (0.03) MIN.

34 (1.34) DIA. MAX.

2 places

53 (2.09) DIA. MAX.

2 holes DIA. 3.5 (0.14) x 2.5 (0.1) deep

4.7 (0.18)

27 (1.06) MAX.

0.7 (0.03) MIN.

6.2 (0.24) MIN.

36.5 (1.44)

Creepage distance: 36.33 (1.430) minimum

Strike distance: 17.43 (0.686) minimum

Quote between upper and lower pole pieces has to be considered after

application of mounting force (see thermal and mechanical specification)

20° ± 5°
