M24LR16E-R
M24LR16E-R states
Doc ID 018932 Rev 8
67/143

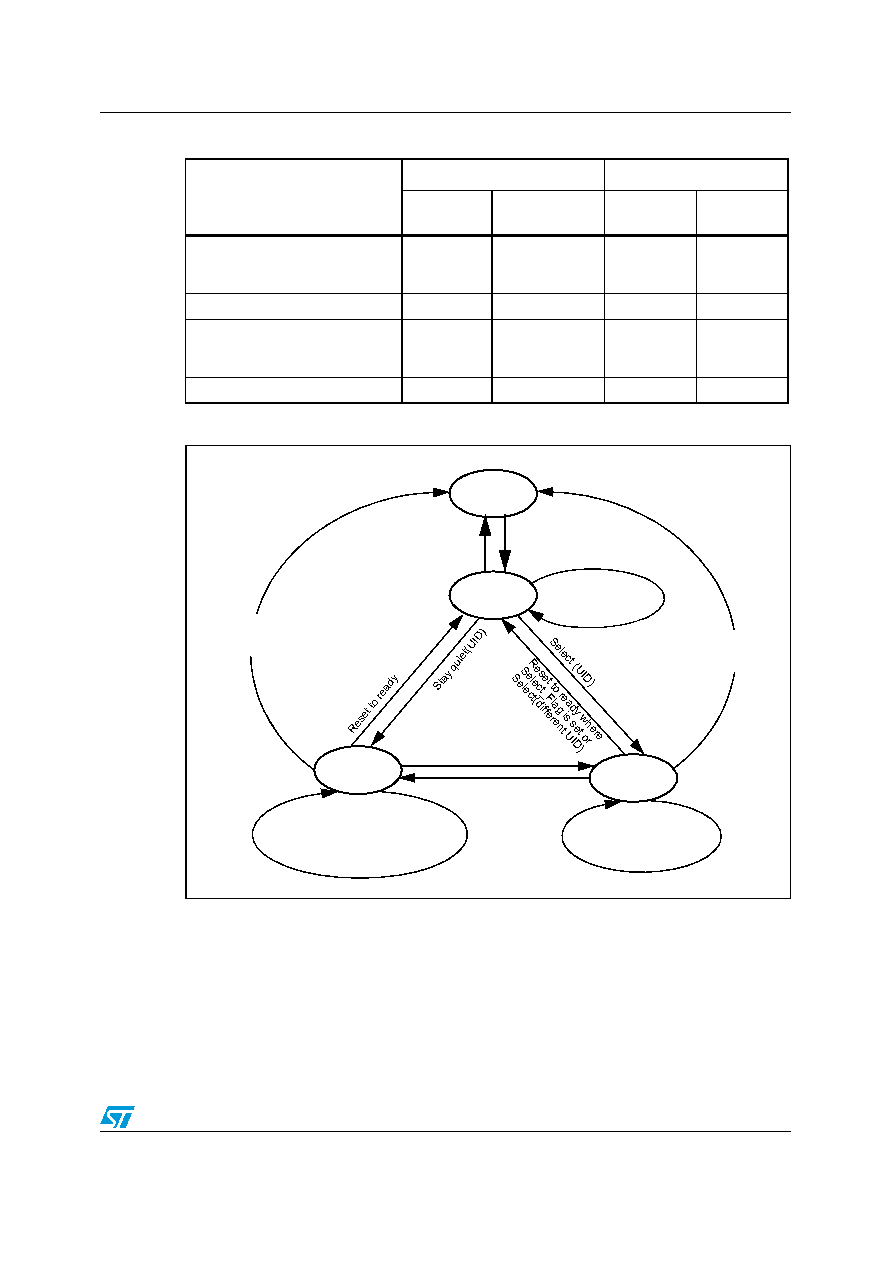

Figure 49.
M24LR16E-R state transition diagram
1.
The M24LR16E-R returns to the Power Off state if the tag is out of the RF field for at least tRF_OFF. Please
refer to application note AN4125 for more information.
2.
The intention of the state transition method is that only one M24LR16E-R should be in the Selected state at
a time.
Table 25.
M24LR16E-R response depending on Request_flags
Flags
Address_flag
Select_flag
1
Addressed
0
Non addressed
1
Selected
0
Non selected
M24LR16E-R in Ready or
Selected state (Devices in Quiet
state do not answer)
XX
M24LR16E-R in Selected state
X
X
M24LR16E-R in Ready, Quiet or
Selected state (the device which
matches the UID)
XX
Error (03h)
X
X
AI06681b
Power-off
In field
Out of field
Ready
Quiet
Selected
Any other Command
where Select_Flag
is not set
Stay quiet(UID)
Select (UID)
Any other command
Any other command where the
Address_Flag is set AND
where Inventory_Flag is not set
Out of RF field
after t
RF_OFF
Out of RF field
after t
RF_OFF
after t
RF_OFF
