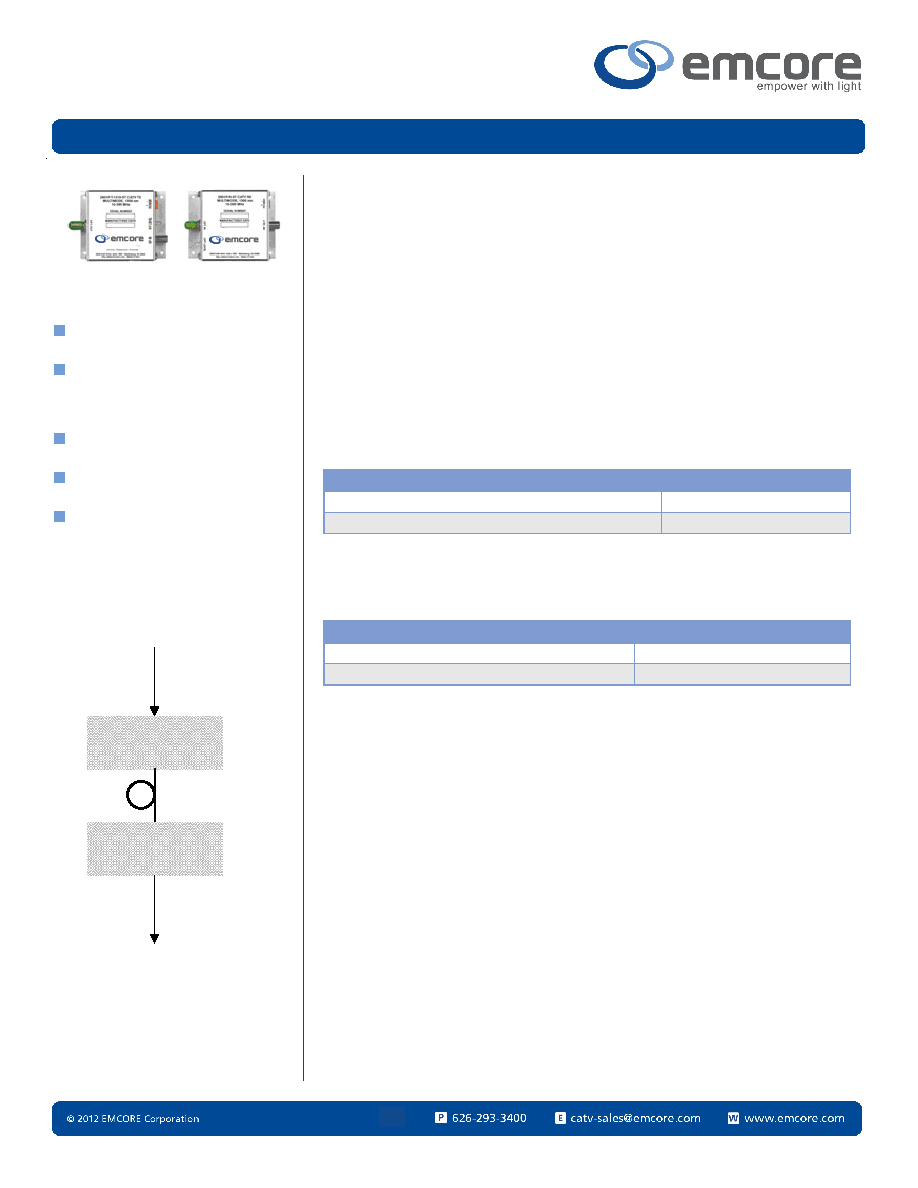

DATASHEET | JANUARY 2012

FIBER OPTICS

| REV 2012.01

Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.

Features

Able to Transmit up to 5 CATV Channels

Over One Multimode Fiber

Supports Transmission of Sub-Band,

Low-Band, FM, Mid-Band, and High-

Band Channels, Adding Flexibility to the

System.

Plug-and-Play Design Assures Easy

Installation

The Most Comprehensive Product of its

Type Available in the Industry.

Ideal for Small Corporate TV Video

Distribution, Campus Media Retrieval

Systems, Tele-Conferencing

Applications, or as a Return Path

Transmitter for Larger Video Systems.

Model 2801 PRO 5 Channel Multimode CATV VSB/AM

The Model 2801 PRO 5 Channel CATV VSB/AM video link provides a high-quality

system for transporting five video channels over multimode fiber with complete

EMI immunity. The use of state-of-the-art 1300 nm LEDs and PIN detectors

allows Model 2801 PRO to operate at exceptional performance levels. The link

offers excellent analog bandwidth that ranges from 5 to 350 MHz, allowing

transmission of all sub-band, low-band, FM, mid-band, and high-band channels.

This system also offers excellent performance at lower channel loadings. The

Model 2801 PRO provides an inexpensive option for transmitting high-quality

video, making it an obvious choice for video delivery services using multimode

fiber.

5 Channel Multimode Transmitter & Receiver Part Numbers

Description

Part Number

Stand-Alone Transmitter, 1300 nm, ST Optical Connector

2801P-T-1310-ST

Stand.-Alone Receiver, 1300 nm, ST Optical Connector

2801P-R-ST

Note: Power supply part number PS095 included.

Accessory Part Numbers

Description

Part Number

Transmitter Stand-Alone Power Supply, +9 Volts DC

PS095

Receiver Stand-Alone Power Supply, +9 Volts DC

PS095

Model 2801 PRO

2801 PRO

Transmitter

2801 PRO

Receiver

Multimode

Fiber

RF In (5-350 MHz)

RF Out (5-350 MHz)
