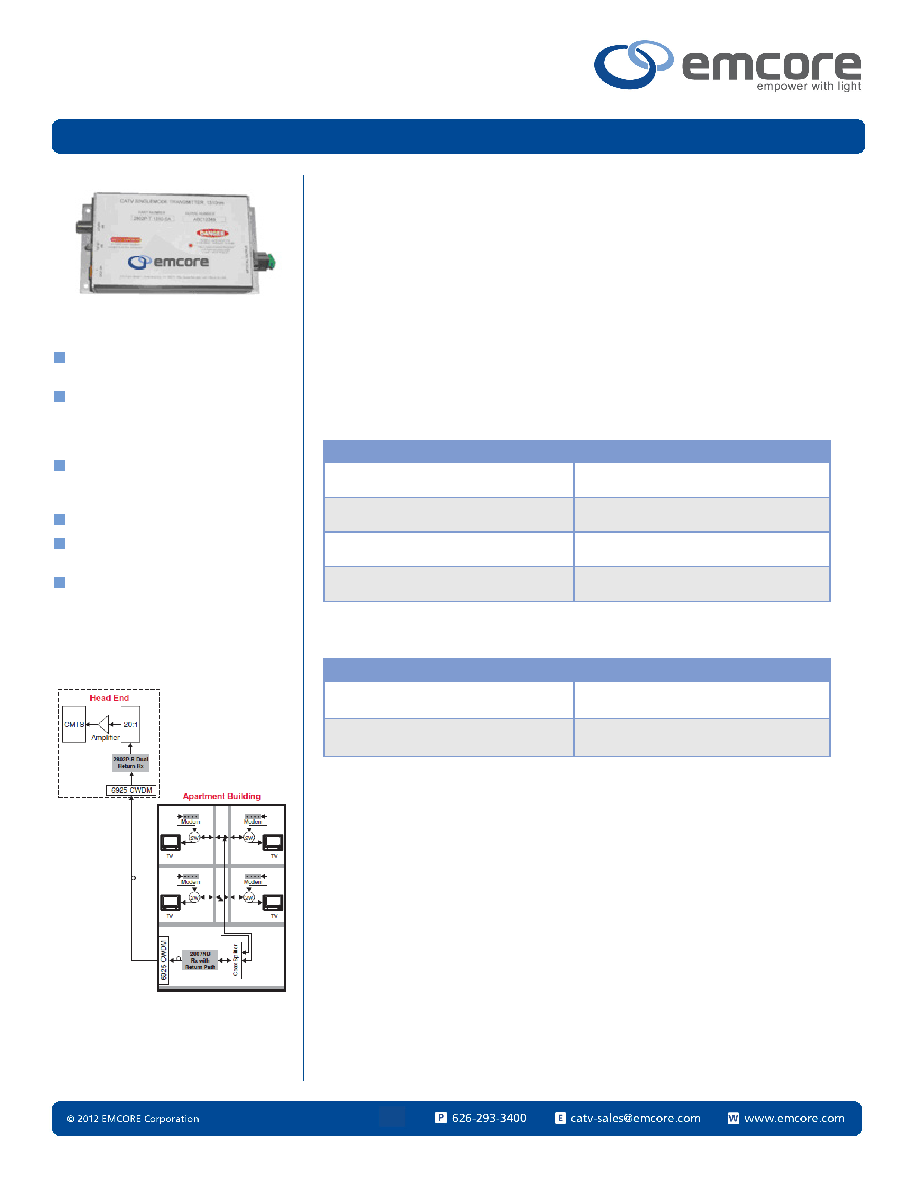

DATASHEET | JANUARY 2012

FIBER OPTICS

| REV 2012.01

Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.

Features

Able to Transmit up to 10 CATV

Channels Over One Singlemode Fiber

Supports Transmission of Sub-Band,

Low-Band, FM, Mid-Band, and High-

Band Channels, Adding Flexibility to the

System.

Built in RF Input Level Indicator Aids in

Commissioning and Troubleshooting the

Link.

Ideal for Use as CATV Return Path Link.

Compatible with Standard Television

Industry Voltages and Impedances.

Ideal for Small Corporate TV Video

Distribution, Campus Media Retrieval

Systems, Tele-Conferencing, and much

more.

The Model 2802 PRO 10 Channel CATV VSB/AM video link offers a state-of-the-art

solution for high-quality CATV transmission. The Model 2802 PRO offers exceptional

analog bandwidth from 5 to 400 MHz allowing transmission of all sub-band, low-band, FM,

mid-band, and high-band channels. This feature allows the system to deliver custom

designed video services. In conjunction with a VCR, camcorder, or CATV feed, the Model

2802 PRO can transmit TV channels and their sound carriers, over a distance of 10 km or

more at 1310 nm over one singlemode fiber. The link is ideal for implementing a CATV

return path link. The link utilizes inputs from standard CATV VSB/AM modulators,

processors, and other ancillary equipment, making the model 2802 PRO link an excellent

plug-and-play system. LED indicators and built-in RF and optical power meters allow for

quick assessment of the link’s status.

10 Channel Singlemode Transmitter and Receiver Part Numbers

Description

Part Number

Stand-Alone Transmitter, 1310 nm,

FC/APC Optical Connector

2802P-T-1310-FA

Stand-Alone Transmitter, 1310 nm,

SC/APC Optical Connector

2802P-T-1310-SA

Stand-Alone Receiver, 1310/1500 nm

FC/APC Optical Connector

2802P-R-FA

Stand-Alone Receiver, 1310/1550 nm

SC/APC Optical Connector

2802P-R-SA

Note: Power Supply Part Number PS095 included.

Accessory Part Numbers

Description

Part Number

Transmitter Stand-Alone Power Supply,

+9 Volts DC

PS095

Receiver Stand-Alone Power Supply,

+9 Volts DC

PS095

Model 2802 PRO

10 Channel Singlemode CATV VSB/AM
