MAU300 SERIES

DC/DC CONVERTER 2W, SIP-Package

E-mail:sales@minmax.com.tw

Tel:886-6-2923150

2013/01/23 REV:4 Page 3 of 4

Package Specifications

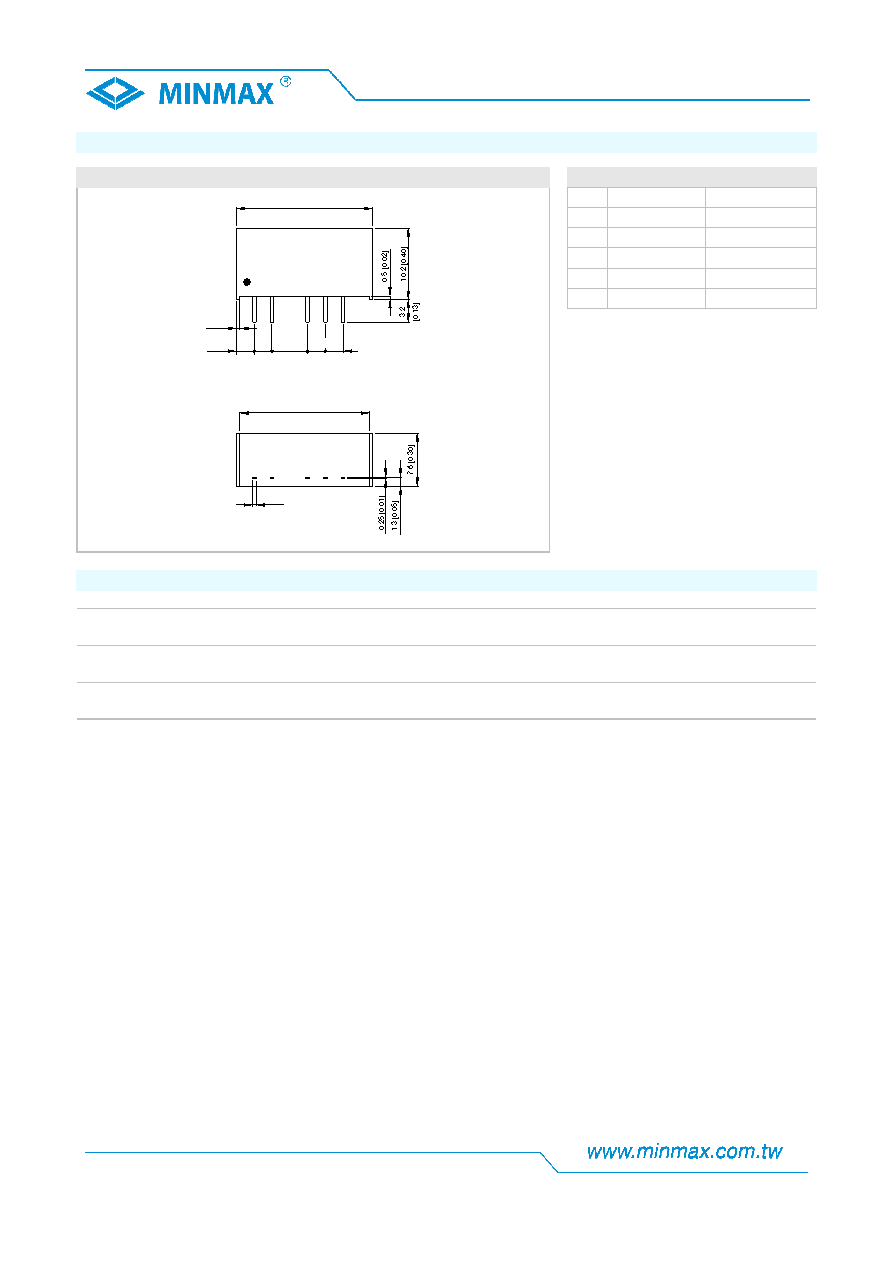

Mechanical Dimensions

Pin Connections

Pin

Single Output

Dual Output

1

+Vin

+Vin

2

-Vin

-Vin

4

-Vout

-Vout

5

No Pin

Common

6

+Vout

+Vout

X.XX±0.13 ( X.XXX±0.005)

Physical Characteristics

Case Size

: 19.5x7.6x10.2mm (0.77x0.30x0.40 inches)

Case Material

: Non-Conductive Black Plastic (flammability to UL 94V-0 rated)

Pin Material

: Alloy 42

Weight

: 2.7g

19.5 [0.77]

0.5

[0.02]

2.54

[0.10]

5.08

[0.20]

2X2.54

[2X0.10]

0.50

[0.02]

1

2

4

5

6

18.5 [0.73]

Bottom View

2.4

[0.09]
