• All specifications are subject to change without notice.
(5/10)
002-06 / 20120514 / e533_mlz

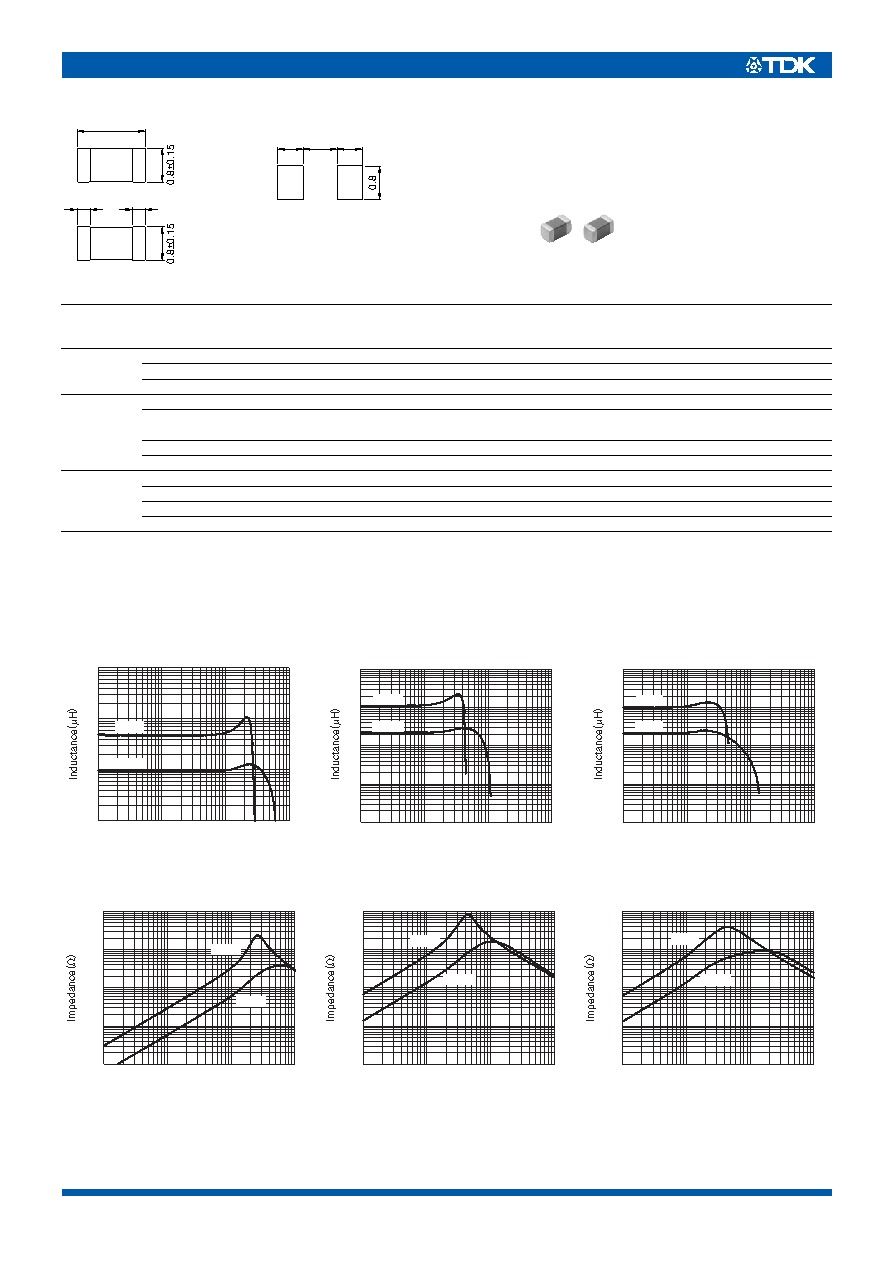

SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN
ELECTRICAL CHARACTERISTICS
1 Current assumed when inductance ratio has decreased by 50% max..
2 Current assumed when temperature has risen to 20°C max. (reference value). The maximum operating temperature at this time is 105°C.
• Test equipment
Inductance: Ag-4294A+16034G
TYPICAL ELECTRICAL CHARACTERISTICS
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
Classification
Part No.
Inductance
(µH)
Inductance
tolerance
Test
frequency
L (MHz)
Test
current
L (mA)
Self-resonant
frequency
(MHz)typ.
DC
resistance
(
 )±30%
Rated
current1
(mA)
Rated
current2
(mA)
High frequency
type
MLZ1608DR10DT
0.10
±20%
25
1.0
600
0.14
700
850
MLZ1608DR22DT
0.22
±20%
25
1.0
400
0.27
550
600
MLZ1608DR47DT
0.47
±20%
25
1.0
260
0.42
400
500
IDC-UP
type
MLZ1608A1R0WT
1.00
±20%
10
1.0
170
0.15
190
600
MLZ1608A2R2WT
2.20
±20%
10
1.0
120
0.25
130
500
MLZ1608M4R7WT
4.70
±20%
2
0.1
80
0.50
120
350
MLZ1608M100WT
10.0
±20%
2
0.1
50
1.05
90
250
MLZ1608M220WT
22.0
±20%
2
0.1
38
2.40
55
150
Low-resistance
type
MLZ1608N1R0LT
1.00
±20%
2
0.1
170
0.11
140
700
MLZ1608N2R2LT
2.20
±20%
2
0.1
120
0.18
110
500
MLZ1608N4R7LT
4.70
±20%
2
0.1
80
0.32
80
400
MLZ1608N100LT
10.0
±20%
2
0.1
50
0.60
60
300
1.6
±0.15
0.3
±0.2
0.3
±0.2
Weight: 4mg
0.8
0.6
0.6
Dimensions in mm
E4991A+16192A
0.01
0.1
1
10
1
10
100
1000
Frequency(MHz)
R47D
R10D
E4991A+16192A
0.01
0.1
1
100
10
1
10
100
1000
Frequency(MHz)
100W
2R2W
E4991A+16192A
0.01
0.1
1
100
10
1
10
100
1000
Frequency(MHz)
100L
2R2L
E4991A+16192A
1
10
100
1000
10000
1
10
100
1000
Frequency(MHz)
R47D
R10D
E4991A+16192A
1
10
100
1000
10000
1
10
100
1000
Frequency(MHz)
100W
2R2W
E4991A+16192A
1
10
100
1000
10000
1
10
100
1000
Frequency(MHz)
100W
2R2W
