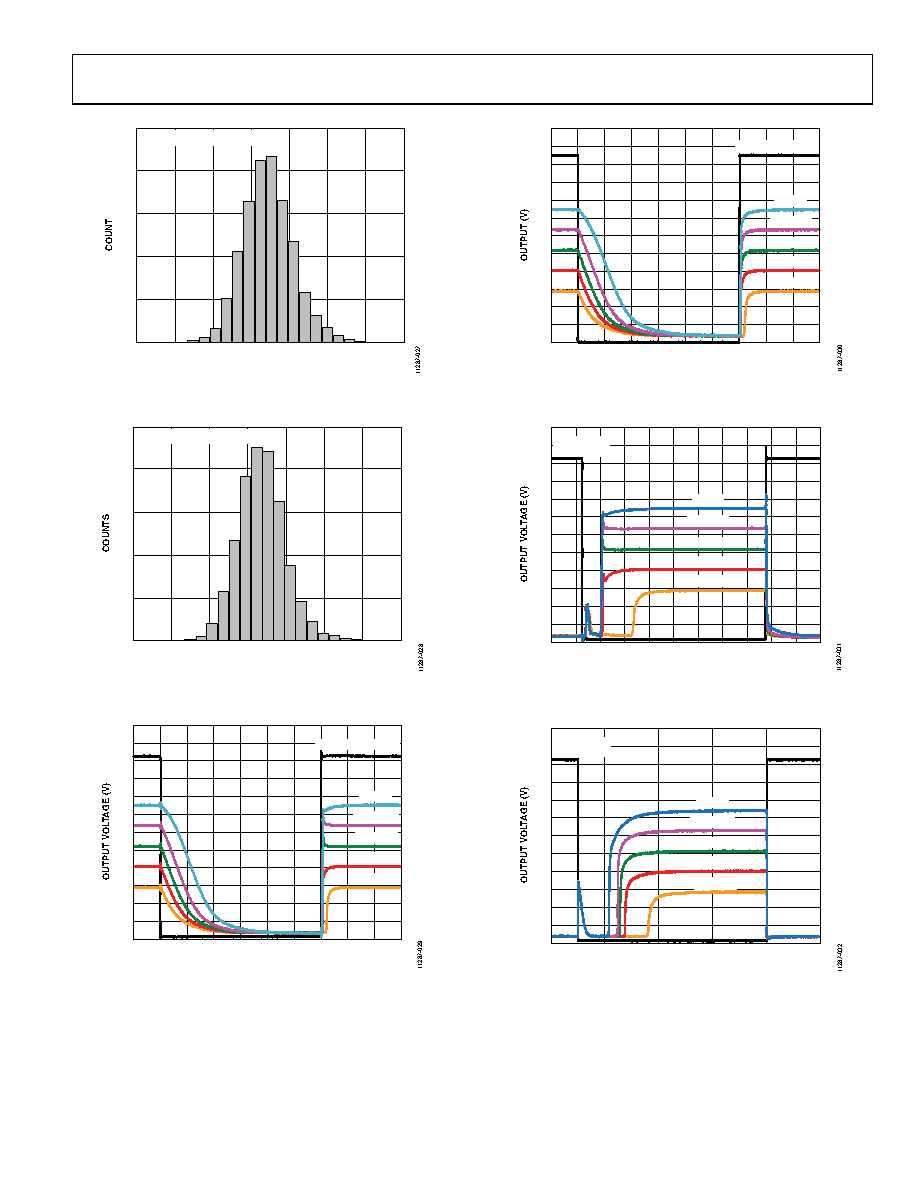

13 / 32 page ![]() Data Sheet ADL5906 Rev. 0 | Page 13 of 32 1000 800 600 400 200 0 2.8 3.0 3.2 2.9 3.1 3.3 3.4 3.5 VRMS (V) REPRESENTS 4500 PARTS Figure 27. Distribution of VRMS, PIN = −10 dBm, 900 MHz 1000 800 600 400 200 0 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 VRMS (V) REPRESENTS 4500 PARTS Figure 28. Distribution of VRMS, PIN = −45 dBm, 900 MHz 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 0 5 10 15 20 25 30 35 40 45 50 TIME (µs) RF BURST PULSE 0dBm –10dBm –20dBm –30dBm –40dBm Figure 29. Output Response to RF Burst Input, Carrier Frequency = 2.14 GHz, CRMS = 1 nF 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 TIME (ms) 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 RF BURST PULSE 0dBm –10dBm –20dBm –30dBm –40dBm Figure 30. Output Response to RF Burst Input, Carrier Frequency = 2.14 GHz, CRMS = 0.1 µF 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 TIME (µs) 0 2 4 6 8 10 12 14 16 18 20 22 0dBm –10dBm –20dBm –30dBm –40dBm TADJ/PWDN PULSE Figure 31. Output Response Using Power-Down Mode for Various RF Input Levels, Carrier Frequency = 2.14 GHz, CRMS = 1 nF 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 0 0.5 1.0 1.5 2.0 2.5 TIME (ms) TADJ/PWDN PULSE 0dBm –10dBm –20dBm –30dBm –40dBm Figure 32. Output Response Using Power-Down Mode for Various RF Input Levels, Carrier Frequency = 2.14 GHz, CRMS = 0.1 µF |
|
