AD8237

Data Sheet

Rev. 0 | Page 16 of 28

G = 1

LOW BANDWIDTH MODE

20mV/DIV

10µs/DIV

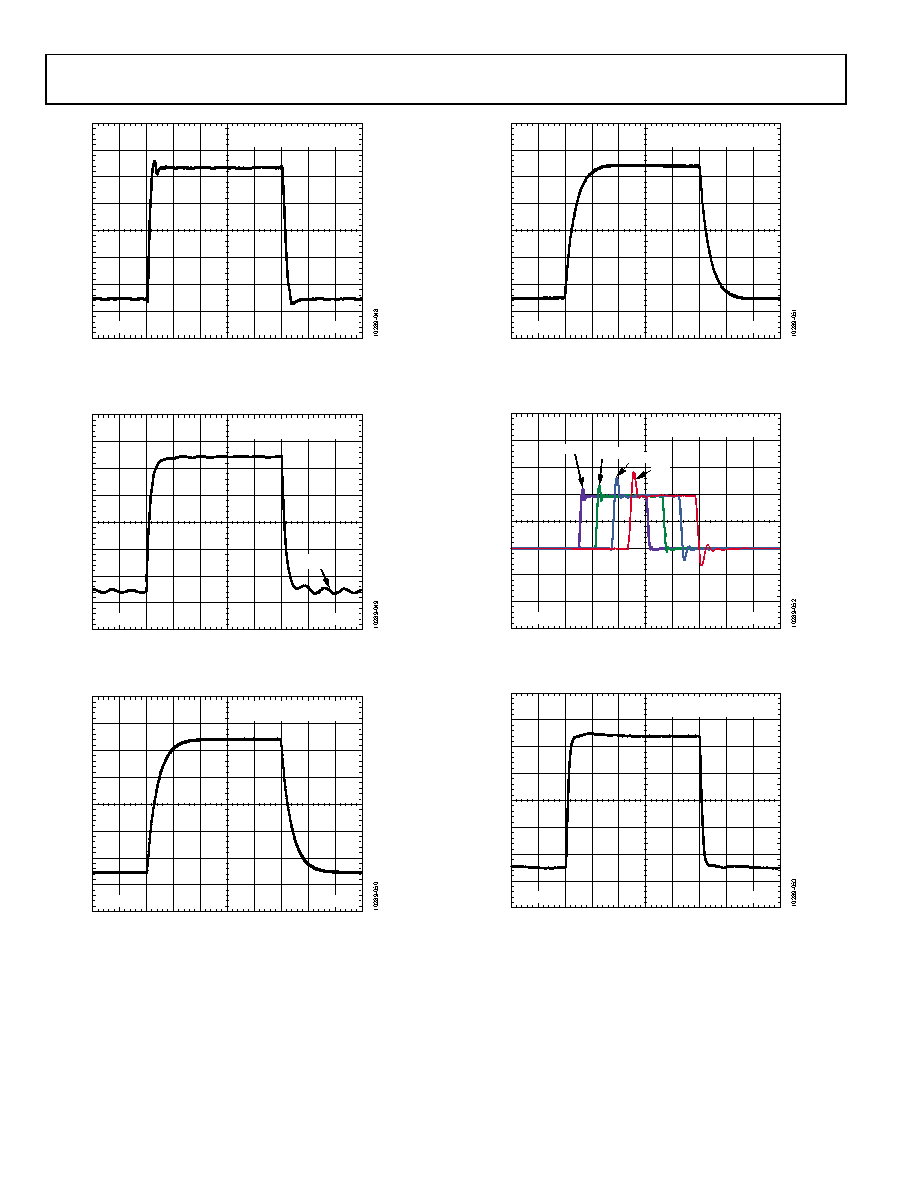

Figure 46. Small Signal Pulse Response, G = 1, RL = 10 kΩ, CL = 100 pF,

Low Bandwidth Mode

G = 10

LOW BANDWIDTH MODE

20mV/DIV

50µs/DIV

fCHOP

Figure 47. Small Signal Pulse Response, G = 10, RL = 10 kΩ, CL = 100 pF,

Low Bandwidth Mode

G = 100

LOW BANDWIDTH MODE

20mV/DIV

200µs/DIV

Figure 48. Small Signal Pulse Response, G = 100, RL = 10 kΩ, CL = 100 pF,

Low Bandwidth Mode

G = 1000

LOW BANDWIDTH MODE

20mV/DIV

2ms/DIV

Figure 49. Small Signal Pulse Response, G = 1000, RL = 10 kΩ, CL = 100 pF,

Low Bandwidth Mode

G = 1

LOW BANDWIDTH MODE

20mV/DIV

20µs/DIV

100pF

1nF

NO LOAD

560pF

Figure 50. Small Signal Pulse Response with Various Capacitive Loads,

G = 1, RL = Infinity, Low Bandwidth Mode

G = 10

HIGH BANDWIDTH MODE

20mV/DIV

10µs/DIV

Figure 51. Small Signal Pulse Response, G = 10, RL = 10 kΩ, CL = 100 pF,

High Bandwidth Mode
