Description

• For 1/4" x 1-1/4" (6.35mm x 31.8mm) fuses

• Ideal for harsh environments

• Water

• Salt Spray

• Ultraviolet Light

• Ozone

• -40° to 150°C temperature range

• Withstands many organic solvents

and rigorous shock and vibration

• Accepts #18 to #12 AWG copper wire

• High visibility yellow color

• Recommended crimp tools:

• Thomas & Betts – WT-112M

• California Terminal Products No. 1250

• Channelock No. 909

• Replacement contact clip: BK/1A2294

• UL flammability rating 94 HB

Ordering

• Specify packaging, product, and option code

Environmental Data

• Temperature Rating (RTI): 100°C

• Water-resistant

• Vibration Resistance: Per MIL STD 810C

• Humidity: 85°C/85% relative humidity for 96 hours

• Brittle Point: Less than -60°C

• Abrasion: 54% NBS index

• Fluid resistance: Type and Class AA, BA, BC, BE, CA,

CE per ASTM D-2000 Standard Classification System

for rubbers

• Flame Resistance: Pass FMVSS302 and related slow

burning when tested in accordance with UL 94HB

• Ozone Resistance: Passed 70 Hours in 50 ppm ozone

per ASTM D-5

• Salt Spray: 15% for 166 hours = 0% volume swell

• Xenon Arc Weatherometer

• Heat Aging (% Retention of Mechanical

Properties at 125°C)

PACKAGING CODE

Packaging Code

Description

Blank

10 pieces of fuseholders packed into a carton

BK

100 pieces of fuseholders packed into a poly bag

OPTION CODE

Option Code

Description

-R

RoHS compliant version

SPECIFICATIONS

Product

Voltage

Current

Code

Rating

Rating

AC

AC

HFB

32V

30A

Component

Material

Body

Thermoplastic Rubber

Crimp

Copper Tin-Plated

Tensile

100%

Time

Strength

Elong.

Mod.

(Hrs)

(psi)

(%)

(psi)

0

1100

375

470

500

1130

350

520

1000

1190

350

520

Days

Parameters

1

7

15

30

41.7

Tensile Strength

100

105

115

120

120

% Elongation

90

90

90

90

90

100% Mod.

105

110

120

120

120

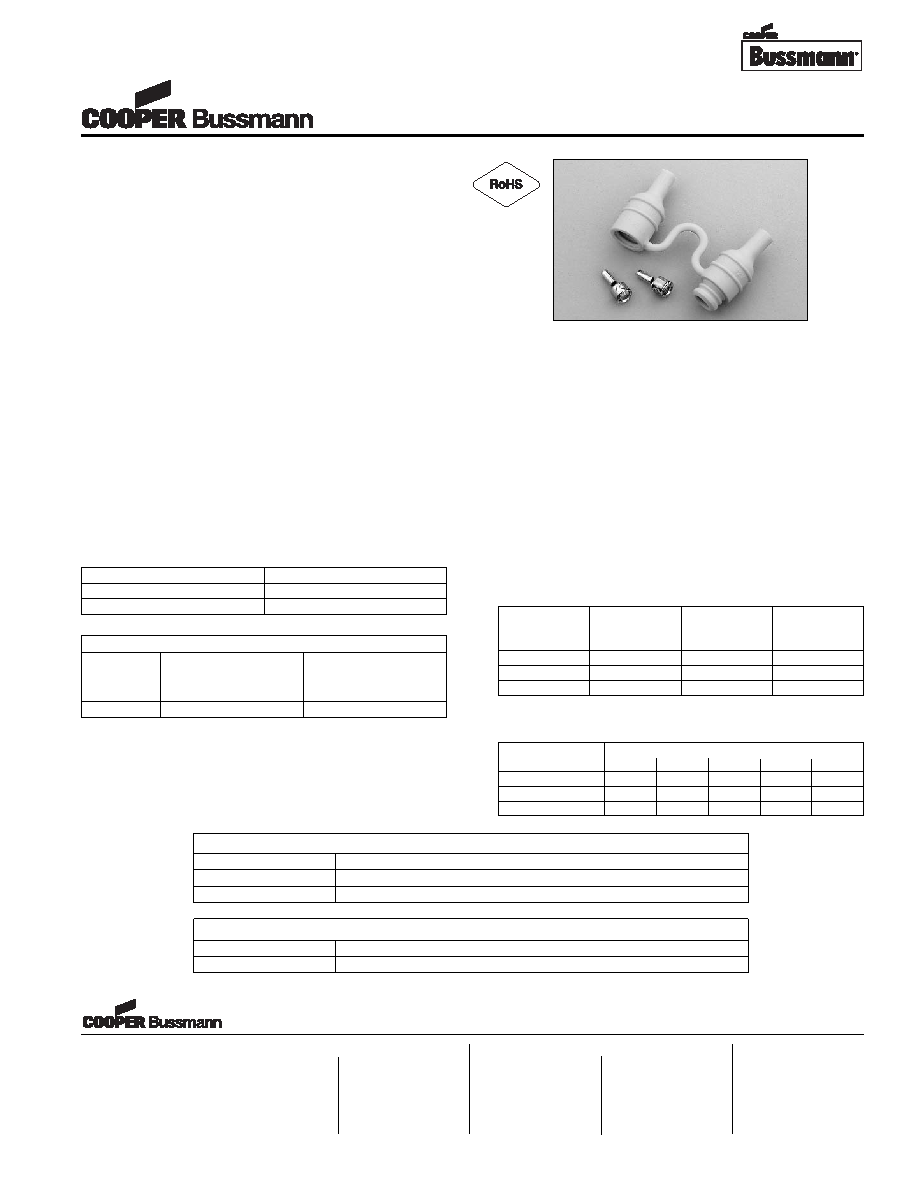

1/4" x 1-1/4" Fuse Holders

HFB In-Line Water-Resistant Series
