Chip Beads

For Power Line

MPZ Series MPZ2012

FEATURES

• The MPZ series are multilayer chip impeders for power supply

line applications.

• High miniaturized, these parts nonetheless exhibit low DC

resistance and high current handling capability.

• The products contain no lead and also support lead-free

soldering.

• It is a product conforming to RoHS directive.

APPLICATIONS

Removal of power line noises of cellular phones, PCs, note PCs,

TVs, TV tuners, STBs, audio players, DVDs, DSCs, DVCs, game

machines, digital photo frames, car navigation system, PNDs, etc.

PRODUCT IDENTIFICATION

(1)Series name

(2)Dimensions L

×W

(3)Material code

(4)Nominal impedance

331: 330

Ω at 100MHz

(5)Characteristic type

(6)Packaging style

T: Taping

HANDLING AND PRECAUTIONS

• Before soldering, be sure to preheat components. The preheat-

ing temperature should be set so that the temperature difference

between the solder temperature and product temperature does

not exceed 150°C.

• After mounting components onto the printed circuit board, do not

apply stress through board bending or mishandling.

• Do not expose the inductors to stray magnetic fields.

• Avoid static electricity discharge during handling.

• When hand soldering, apply the soldering iron to the printed cir-

cuit board only. Temperature of the iron tip should not exceed

350°C. Soldering time should not exceed 3 seconds.

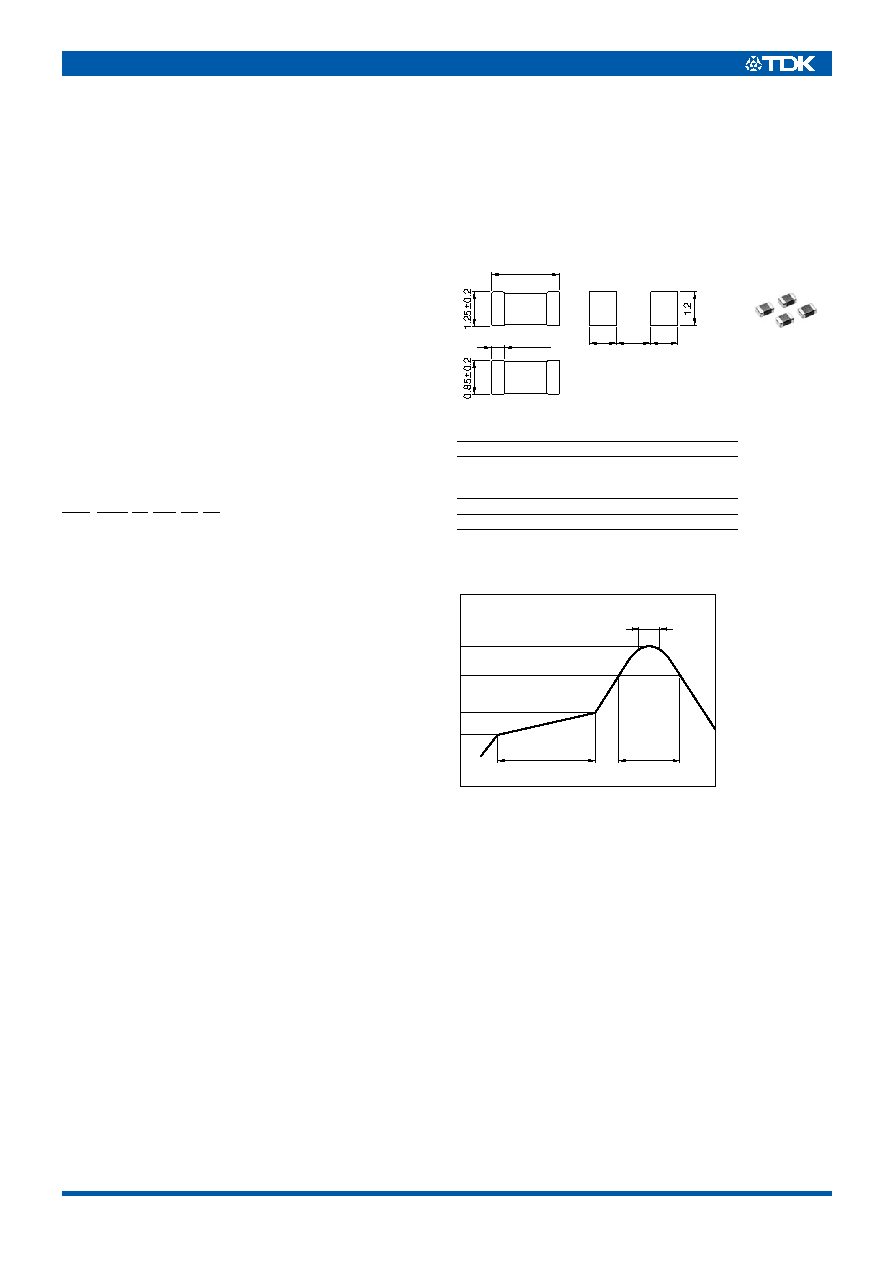

SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD

PATTERN

TEMPERATURE RANGES

PACKAGING STYLE AND QUANTITIES

RECOMMENDED SOLDERING CONDITION

REFLOW SOLDERING

Conformity to RoHS Directive

MPZ 2012 S 331 A

T

(1)

(2) (3) (4) (5) (6)

Operating/storage

–55 to +125°C

Packaging style

Quantity

Taping

4000 pieces/reel

0.5

±0.3

2.0

±0.2

Weight: 8mg

Dimensions in mm

1

0.8

0.8

Natural

cooling

10s max.

Preheating

60 to 120s

Soldering

30 to 60s

230˚C

250 to 260˚C

180˚C

150˚C

Time(s)

• Please contact our Sales office when your application is considered the following:

The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.)

• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific

bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
