Type N Specifications (continued)

Material

Male contact

Brass, gold or silver plated

Female contact

Phosphor bronze or beryllium copper, gold or silver plated

Crimp ferrule

Copper or brass

Other metal parts

Brass, nickel plated

Insulator

PTFE, copolymer of styrene, glass TFE (herm. sealed)

Gasket

Silicone or synthetic rubber (weatherproof)

Military

MIL-STD-348A

where applicable

MIL-A-55339

where applicable

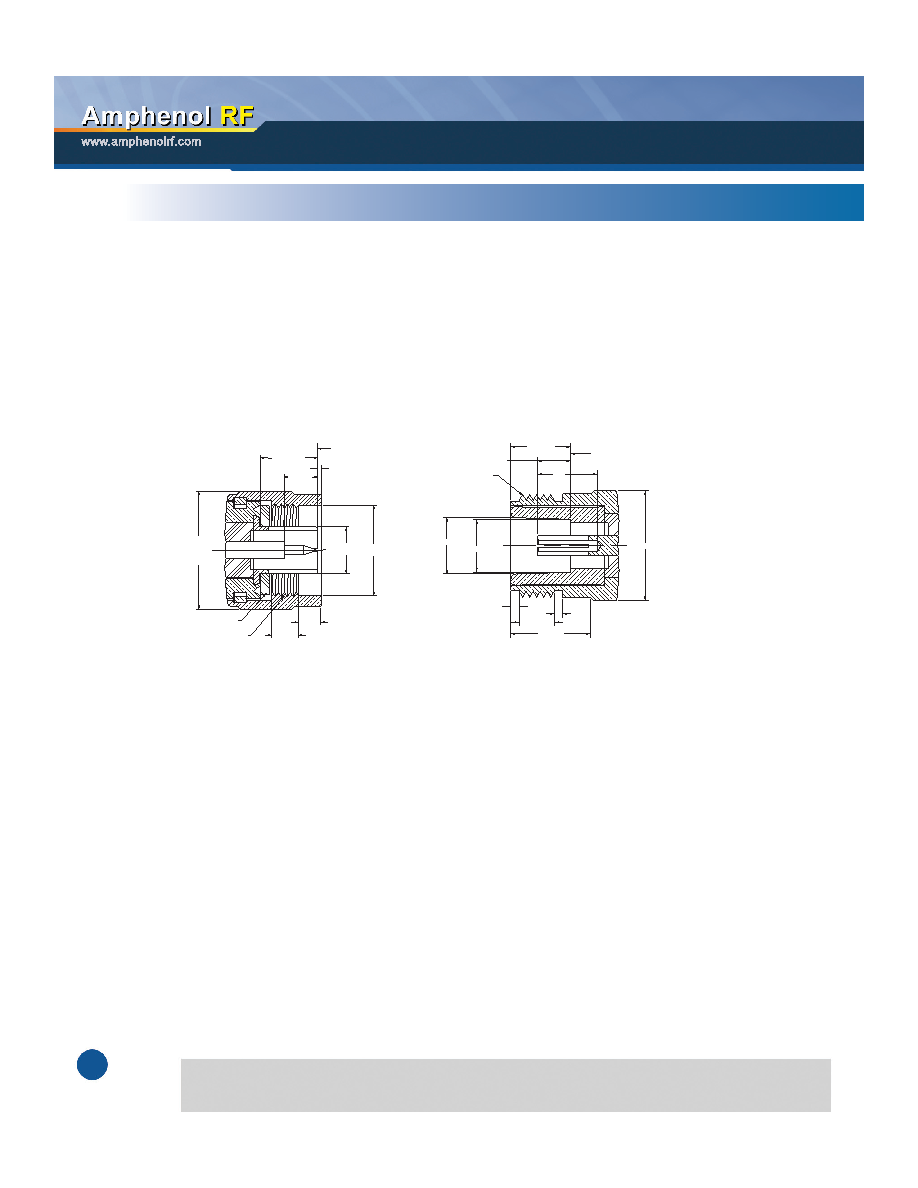

Plug

Jack

.412/.398

.230/.210

.060/.016

.177 MIN FULL THD.

.168/.158

Å.630 MIN

Å.330 MAX

Å.827 MAX

REF PLANE

SEALING GASKET

.625-24UNEF-2B

.210

.207/.187

.362/.356

.422 MIN

.077/.047

.202/.172 FULL THD.

.077/.047

Å.344/.336

Å.320/.316

Å.627 MAX

REF PLANE

.625-24UNEF-2A

MIN
