Compliant

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

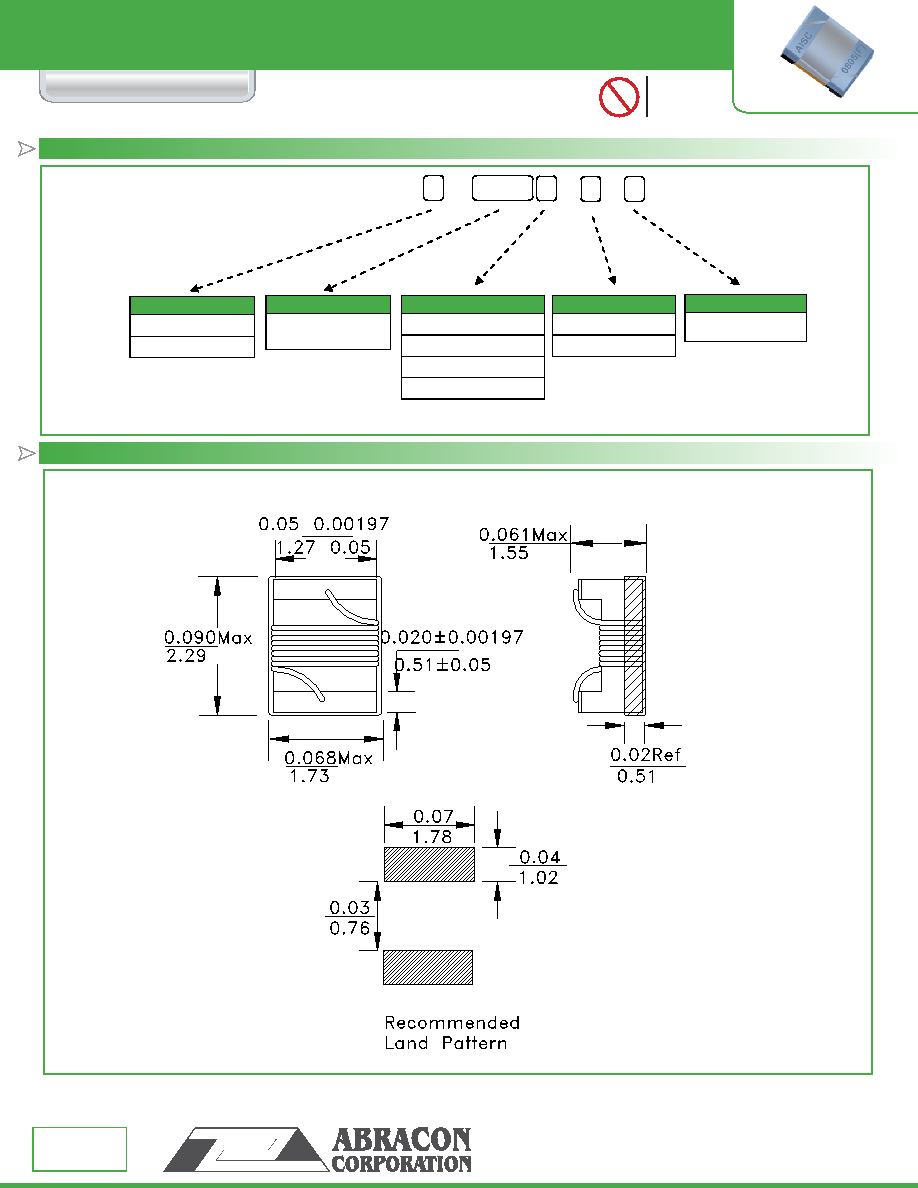

OUTLINE DRAWING:

WIRE WOUND INDUCTOR - CERAMIC or FERRITE

AISC-0805(F)

30332 Esperanza, Rancho Santa Margarita, California92688

Revised: 04.15.11

Visit

www.abracon.com for Terms & Conditions of Sale

CERTIFIED

ABRACON IS

CERTIFIED

ABRACON IS

ISO9001:2008

CERTIFIED

AISC-0805

-

-

-

*Ceramic core only

Terminal Option

Blank: Tin-Ni

Z: Au-Ni

Inductance Tolerance

G: ±2%*

J: ±5%

K: ±10%

M: ±20%

Packaging

T: Tape and Reel

(2kpcs / reel)

Inductance Code

Please refer to the

table above

Core Material

Blank: Ceramic

F: Ferrite

±

±

Dimension:inches / mm

2.3 x 1.7 x 1.6mm
