E3S-B

E3S-B

4

J

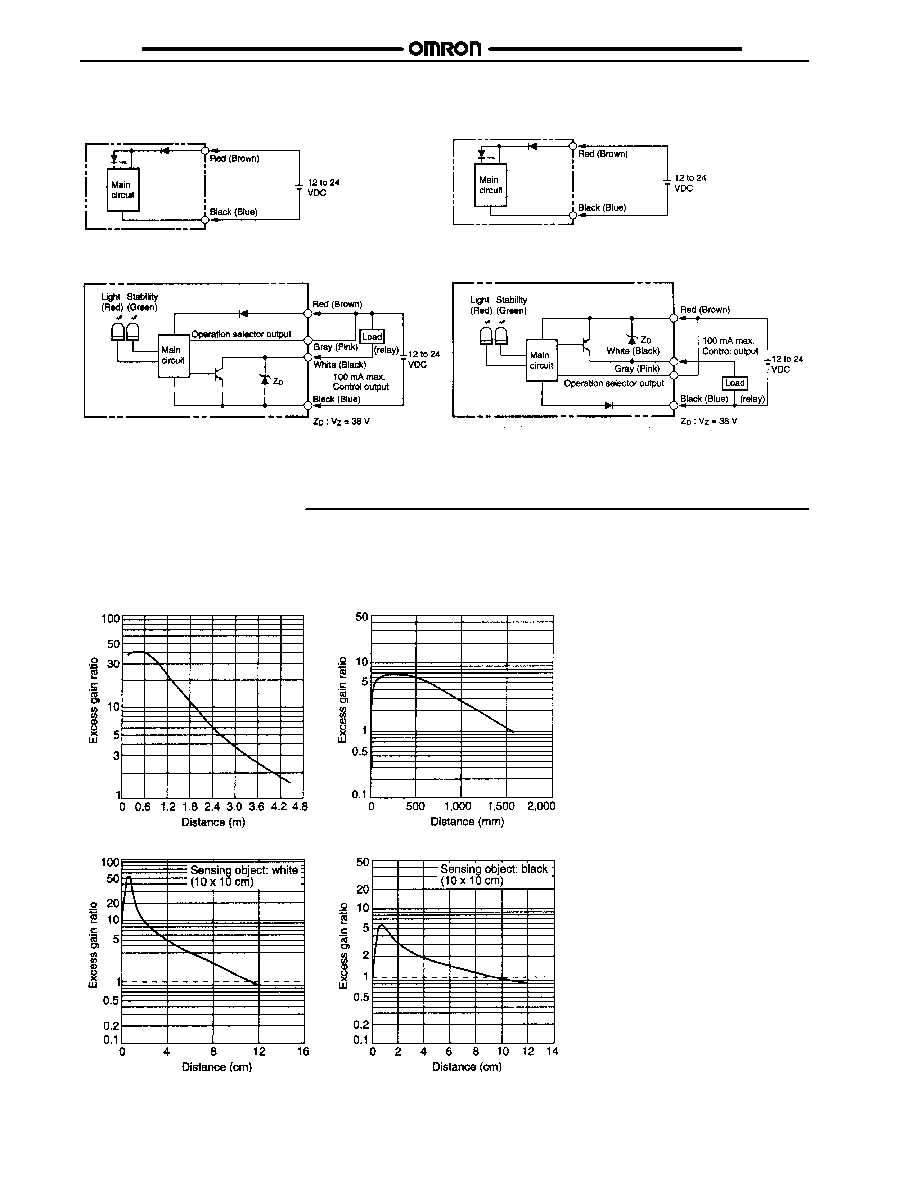

OUTPUT CIRCUIT DIAGRAMS

NPN Output

Through-beam Emitter

Through-beam Emitter

PNP Output

Through-beam Receiver, Retroreflective, Diffuse Reflective

Through-beam Receiver, Retroreflective, Diffuse Reflective

Note: Circuits shown are for Light-ON operation. For Dark-ON operation, the gray wire is connected to the black wire (0 VDC).

IEC colors are shown in parentheses.

Engineering Data

J

EXCESS GAIN RATIO

Excess Gain vs. Set Distance (Typical)

E3S-BTj

j

j

j

1E3S-BRj

j

j

j

1 (with E39-R1 Reflector)

E3S-BDj

j

j

j

1 (Detection of White Paper)

E3S-BDj

j

j

j

1 (Detection of Black Paper)
