Data Sheet: 4451

5.55

Section A-A

Direction of Feed

Supplied in tape and reel packaging, 1400 parts on a 13” diameter reel.

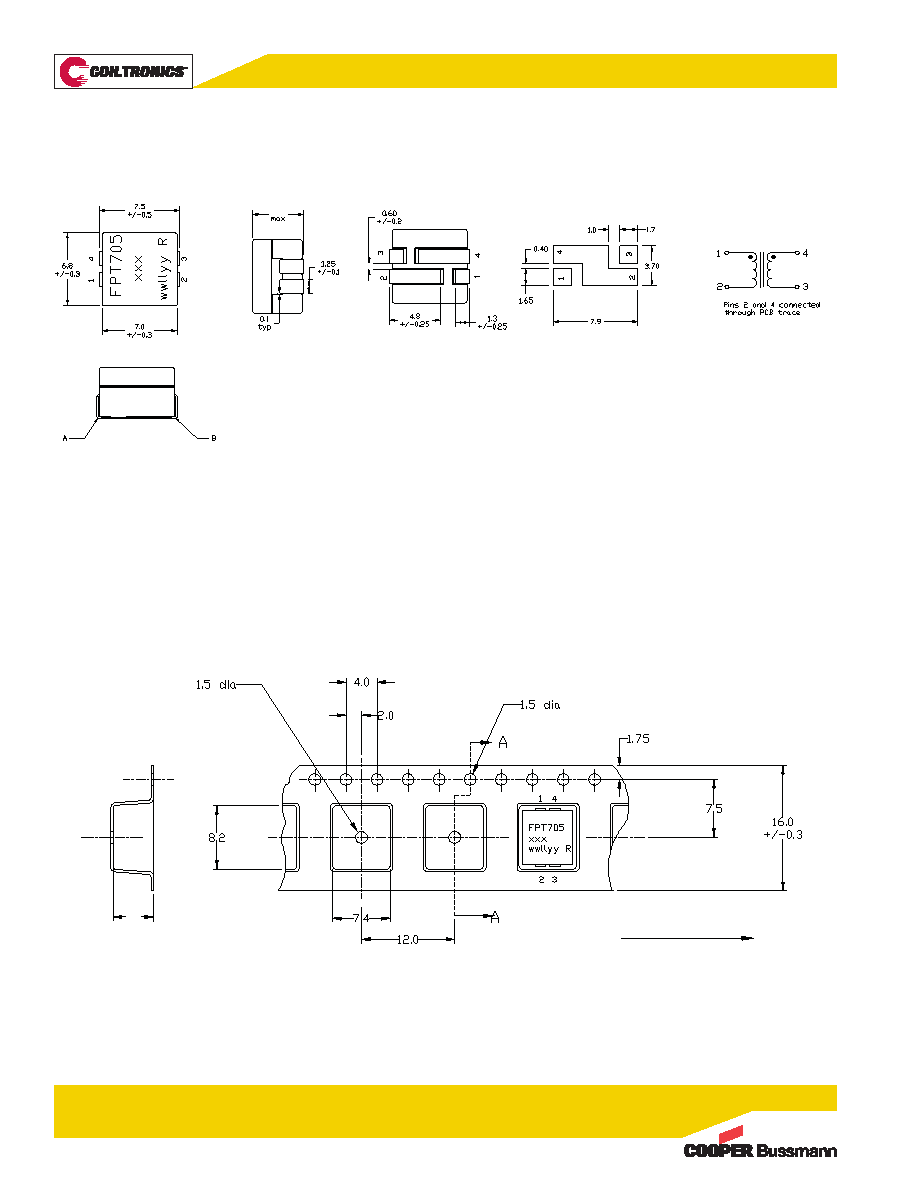

Packaging Information - mm

Dimensions - mm

Top View

Side View

Bottom View

Recommended Pad Layout

Schematic

5.35

DCR is measured between

points "A" and point "B"

Part Marking:

• FPT705 (Product code and size)

• xxx = (Inductance=(Inductance value in nH)

• wwllyy= Date Code, R= Revision level

All soldering surfaces to be coplanar within 0.10 millimeters.
