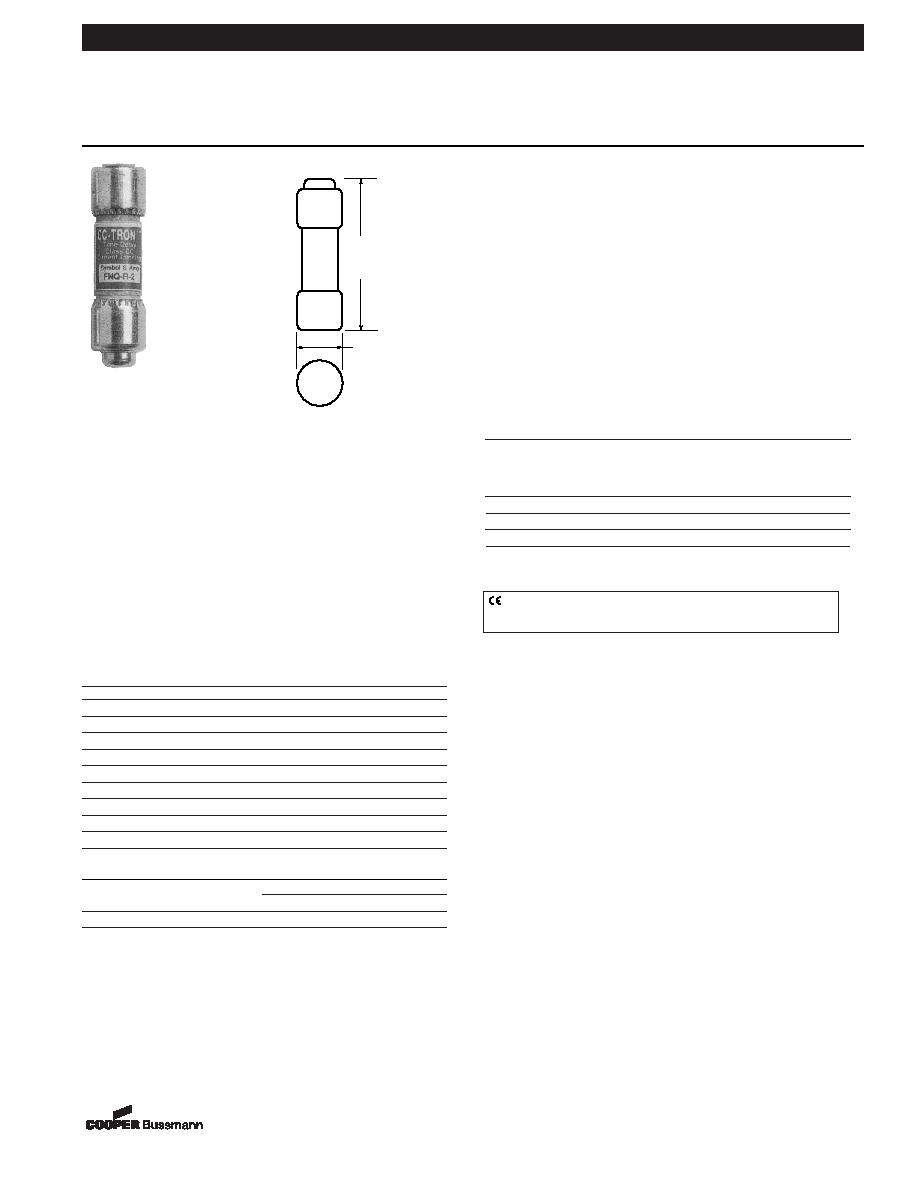

1 / 2 page

11-20-02

SB02450

CC-TRON

®

FNQ-R

Time-Delay Fuses

⁄‹Ω£™∑ ≈ 1⁄Ω™∑, 600 Volt, ⁄Ω¢ to 30 Amps

Form No. FNQ-R

Page 1 of 2

Data Sheet: 1014

Bussmann®

1.5"

(

0.031)

(38.1mm)

.41"

(

0.005)

(10.3mm)

Dimensional Data

General Information:

• The Bussmann CC-TRON® (FNQ-R) was designed to meet

the needs of control circuit transformer protection.

• Current-limitation protects down stream components

against damaging thermal and magnetic effects of short-

circuit currents.

• High inrush time-delay. Control circuit transformers can

experience inrush currents up to 85 times their full-load

current rating. FNQ-R fuses can be sized according to

NEC and UL requirements and still allow the high inrush

currents, with significantly more time-delay than the UL

minimum value of 12 seconds at 200% for Class CC fuses.

• Melamine tube. Nickel-plated brass endcaps.

Carton Quantity and Weight

Ampere

Carton

Weight*

Ratings

Qty.

Lbs.

Kg.

⁄Ω¢-30

10

.200

.091

*Weight per carton

Electrical Ratings (Catalog Symbol and Amperes)

FNQ-R-⁄Ω¢

FNQ-R-1‹Ω¡º

FNQ-R-3¤Ω¡º

FNQ-R-8

FNQ-R-‹Ω¡º

FNQ-R-1›Ω¡º

FNQ-R-3⁄Ω™

FNQ-R-9

FNQ-R-›Ω¡º

FNQ-R-1⁄Ω™

FNQ-R-4

FNQ-R-10

FNQ-R-⁄Ω™

FNQ-R-1ﬂΩ¡º

FNQ-R-4⁄Ω™

FNQ-R-12

FNQ-R-ﬂΩ¡º

FNQ-R-1°Ω¡º

FNQ-R-5

FNQ-R-15

FNQ-R-‹Ω¢

FNQ-R-2

FNQ-R-5ﬂΩ¡º

FNQ-R-17⁄Ω™

FNQ-R-°Ω¡º

FNQ-R-2⁄Ω¢

FNQ-R-6

FNQ-R-20

FNQ-R-1

FNQ-R-2⁄Ω™

FNQ-R-6⁄Ω¢

FNQ-R-25

FNQ-R-1⁄Ω•

FNQ-R-2°Ω¡º

FNQ-R-7

FNQ-R-30

FNQ-R-1⁄Ω¢

FNQ-R-3

FNQ-R-7⁄Ω™

—

Catalog Symbol: FNQ-R

Time-Delay

Application: Circuit Transformer Protection

Ampere Rating: ⁄Ω¢ to 30A

Voltage Rating: 600Vac (or less)†

Interrupting Rating: 200,000A RMS Sym. (UL)

Agency Information:

UL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273

CSA Certified, Class CC CSA, Class 1422-01,

File 53787–HRC-MISC

†12-30A is 300Vdc and 10k AIR.

Maximum Acceptable Rating of Overcurrent Device*

Maximum Rating of Overcurrent

Rated Primary

Protective Device Expressed As A

Current

Percent of Transformer Primary

(Amperes)

Current Rating

Less than 2A

500**

2A to less than 9A

167

9A or more

125

*UL 508A Table 42.1.

**300% for other than motor control applications.

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 636-527-1270 for more information.
