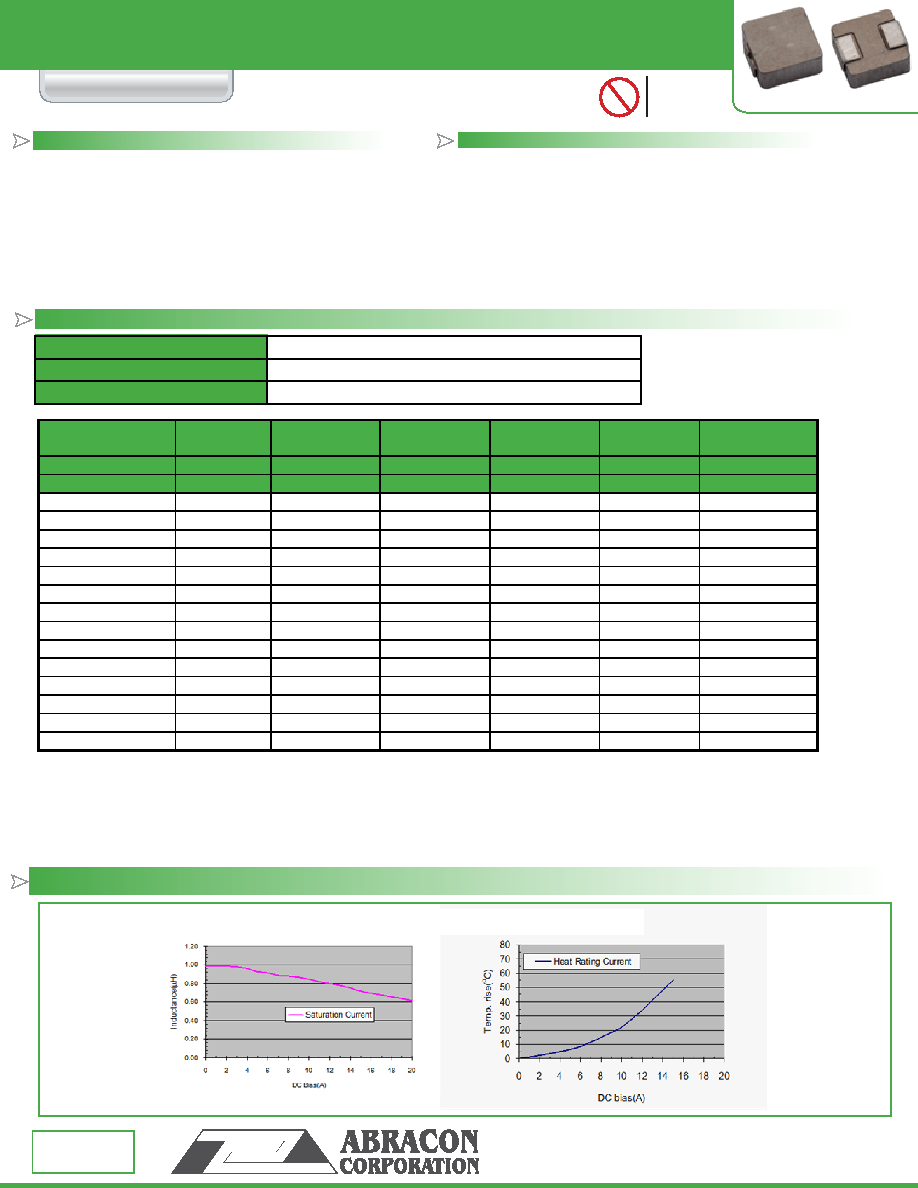

ASPI-0630LR-1R0

Molding Type Power Inductor

| | | | | | | | | | | | | | |

ASPI-0630LR

APPLICATIONS:

FEATURES:

Compliant

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001:2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

Revised: 11.17.11

Visit www.abracon.com for Terms & Conditions of Sale

7.2 x 6.65 x 3.0 mm

• High saturation current.

• Low loss due to low DC resistance.

• Frequency application up to 3MHz.

• Low profile with max thickness 3.0mm.

•100% lead free and meeted RoHS standard.

• Suitable for reflow soldering.

• High reliable SMD package

STANDARD SPECIFICATIONS

Abracon P/N:

ASPI-0630LR Series

Operating Temperature & Humidity:

Storage Temperature & Humidity:

-55˚C to +125˚C (Including self generated heat)

+25˚C to +35˚C, 45% to 85% RH

ELECTRICAL CHARACTERISTIC CU

RVES

• DC/DC converters in Notebook, Netbook, desktop and server

• Low profile, high current power supplies.

Part Number

Inductance

Tolerance

DCR Typ

DCR Max

Saturation

Current

Temperature

Rise Current

Units

μH

%

mΩ

mΩ

A

A

Symbol

L

M

Isat

Irms

ASPI-0630LR-R47

0.47

M

3.5

4.1

20.0

18.0

ASPI-0630LR-R56

0.56

M

4.7

5.0

18.0

17.0

ASPI-0630LR-R68

0.68

M

6.0

6.5

17.0

16.0

ASPI-0630LR-R82

0.82

M

7.0

7.5

16.0

14.0

ASPI-0630LR-1R0

1.0

M

8.5

9.0

15.0

12.0

ASPI-0630LR-1R5

1.5

M

10.5

12.0

14.0

10.0

ASPI-0630LR-2R2

2.2

M

16.0

18.5

10.0

8.0

ASPI-0630LR-3R3

3.3

M

25.0

28.0

10.0

6.5

ASPI-0630LR-4R7

4.7

M

32.5

35.0

6.5

5.5

ASPI-0630LR-5R6

5.6

M

32.5

35.5

5.0

6.0

ASPI-0630LR-6R8

6.8

M

54.0

60.0

6.0

4.5

ASPI-0630LR-100

10.0

M

62.0

68.0

5.5

4.0

ASPI-0630LR-150

15.0

M

110.0

120.0

5.0

3.0

ASPI-0630LR-220

22.0

M

152.0

167.0

2.5

2.5

Test Conditions

1. Inductance is measured in HP-4284A Precision LCR Meter.

2. RDC is measured in HP-4338B milli ohm meter.(or equivalent).

3. Isat: Based on inductance change (△L/Lo : ≤ -30%)
