Applications

• Voltage Regulator Module (VRM)

• Multi-phase regulators

• Desktop and server VRMs and EVRDs

• Data networking and storage systems

• Notebook regulators

• Point-of-load modules

• Base station equipment

• Battery power systems

• Graphics cards

Environmental Data

• Storage temperature range: -55°C to +125°C

• Operating temperature range: -55°C to +125°C

(ambient plus self temperature rise)

• Solder reflow temperature: J-STD-020D compliant

Packaging

• Supplied in tape and reel packaging, 400 parts per 13” reel

Description

• Halogen free

• 125°C maximum total operating temperature

• 13.8x 12.5 x 5.0mm maximum surface mount package

• Powder Iron core material

• Magnetically shielded, low EMI

• High current carrying capacity, low core losses

• Inductance range 0.22µH to 2.2µH

• Current range from 20 to 110 Amps

• Frequency range up to 5MHz

• RoHS compliant

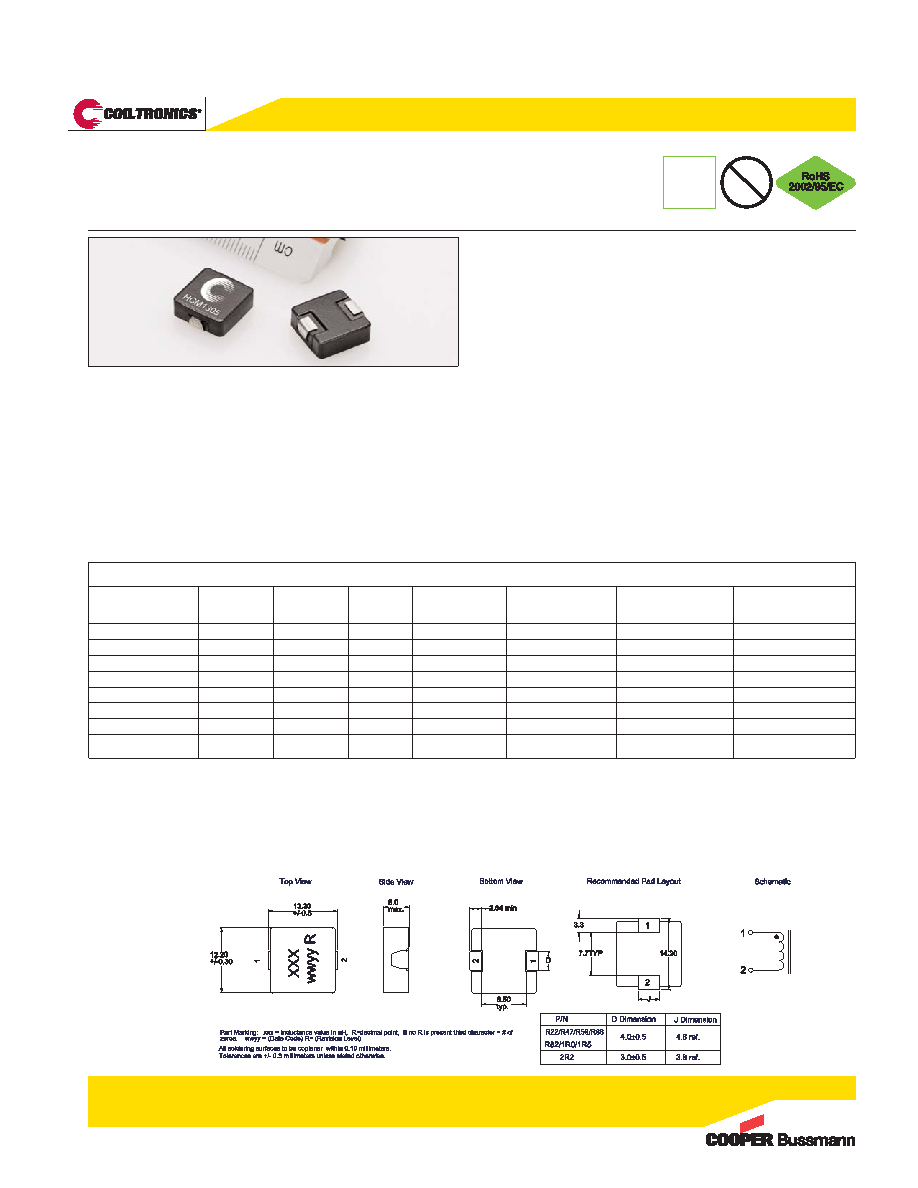

High Current Power Inductors

HCM1305 Series

1010

BU-SB101160

Page 1 of 4

Data Sheet: 4371

SMD Device

1. Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.25Vrms, 0.0Adc @ 25°C.

2. Full Load Inductance (FLL) Test Parameters: 100kHz, 0.25Vrms,Isat @ 25°C.

3. Irms: DC current for an approximate temperature rise of 40°C without core loss. Derating is

necessary for AC currents. PCB layout, trace thickness and width, air-flow and proximity of other

heat generating components will affect the temperature rise. It is recommended that the

temperature of the part not exceed 125°C under worst case operating conditions verified in the

end application.

4. Isat: Peak current for approximately 20% rolloff at +25°C.

5. K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L * ΔI. Bp-p:

(Gauss), K: (K-factor from table), L: (Inductance in

μH), ΔI (Peak-to-peak ripple current in Amps).

6. Part Number Definition: HCM1305-xxx-R

- HCM1305 = Product code and size

- xxx= Inductance value in

μH, R = decimal point

- “-R” suffix = RoHS compliant

Product Specifications

Part

OCL

1

FLL

Irms

3

Isat

4

DCR (m

Ω)

DCR (m

Ω)

Number

6

± 20% (

μH)

(

μH)

(Amps)

@25°C (Amps)

@20°C Nominal

@20°C Maximum

K-factor

5

HCM1305-R22-R

0.22

0.14

51

110

0.63

0.72

367

HCM1305-R47-R

0.47

0.30

38

65

0.80

0.92

174

HCM1305-R56-R

0.56

0.36

36

55

1.15

1.33

110

HCM1305-R68-R

0.68

0.44

34

53

1.15

1.33

110

HCM1305-R82-R

0.82

0.52

31

52

1.40

1.61

140

HCM1305-1R0-R

1.00

0.64

29

50

2.10

2.42

117

HCM1305-1R5-R

1.50

0.96

23

48

2.75

3.16

120

HCM1305-2R2-R

2.20

1.41

20

32

4.60

5.29

110

Pb

HALOGEN

HF

FREE

Dimensions - mm
